Roland TR-909
Rhythm Composer (1983)


The legendary cult drum machine considered as sought-after as the elder brother Roland TR-808.

TR-909 has been a commercial failure and Roland retired the machine from the market after a few months.

logo
sequencer

info DRUM MACHINE Main panel features a basic segments display, 31 knobs, 23 buttons and 16 pads with no velocity.

Back panel terminal connectors:
- main signal out
- 10 individual outputs
- Midi interface
- tape interface
- 5-DIN sync input
- a +5V pulse trigger out controlled by rimshot
- pedalswitch input for start/stop
- memory cartridge slot.





info SOUND based on a CPU NEC UPD7811G manages 10 channels each with individual mix levels.

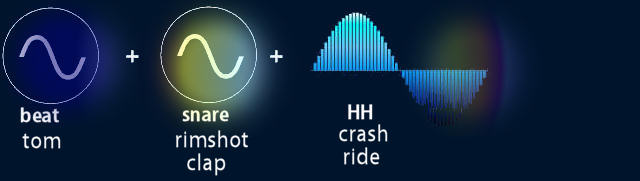

STRUCTURE the sound generation is an hybrid between:
1- Analog generation.
2- PCM digital samples.



cp 909

909




info ANALOG
family is generated like as several mini-synthesizers with individual circuits, onboard VCO oscillators, noise generators, envelope VCA stages and filtered by lowpass filters.
Each percussions have different controls:

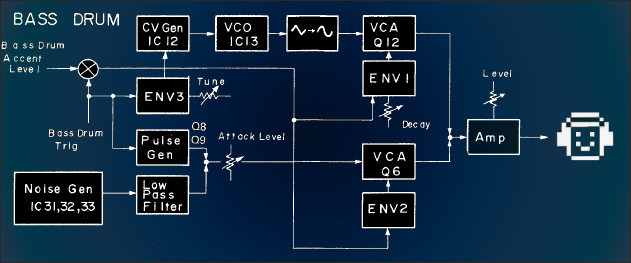

pot Bass Drum
tune sets the pitch
decay sets the lenght
attack adds a click at the beginning

pot Snare Drum
tune sets the pitch
tone emphasizes the VCF filter and the total decay
snappy sets the amount of white noise

pot Low tom
pitch sets the tuning
decay sets the relative lenght

pot Mid tom
pitch same as low tom but with different range
decay sets the relative lenght

pot High tom
pitch same as low tom but with different range
decay sets the relative lenght

pot Rim Shot
no controls

pot Handclap
no controls

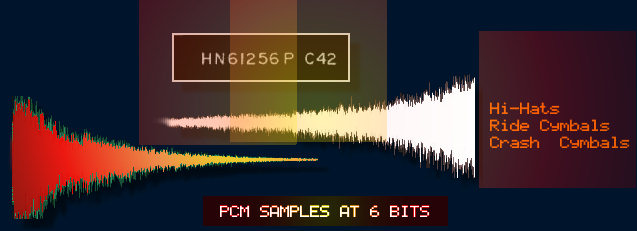

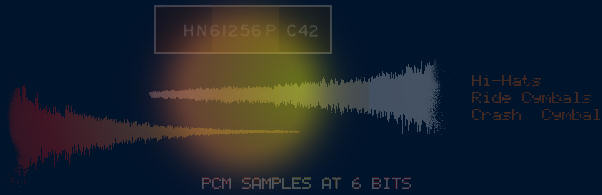

info DIGITAL internal ROM 3 PCM samples coded at 6 bits resolution / 18 kHz frequency- the rest of the audio signal path is pure analog including EG, VCF and VCA.
TECH: PCM shots are stored in a 32 Kb ROM HITACHI HN61256P.


pot Hi-Hat (open)
decay makes a long open sound
tune sets the pitch

pot Hi-Hat (close)
channel-shared with opened hihat circuit
they canno be played at same time

pot Crash
tune sets the pitch of the sample

pot Ride
tune sets the pitch of the sample





info SEQUENCER is based on famous 16 step entries or tapping method.
There are 3 main sequencer functions that enhance the pattern groove:
1- ACCENT: makes a specific step louder for a single instruments or all
2- SHUFFLE: swings the beat for a more human rhythms
3- FLAME: adds a syncope on a step. It does not apply to: rimshot, claps, hihats, crash and ride.
MIDI it is possible to trigger the sound percussions directly by Midi, but implementation is rather basic and offers only ON/OFF messages.



rec

sequencer




info SYNC
internal tempo range from 37 to 290 BPM or external clock sync is possible in 3 ways:
1- 5 DIN SYNC signal at 24 PPQ
2- Midi clock
3- tape sync.


sync


info MEMORY:
- 4 songs max.
- 48 patterns (up to 896 measures)
Patterns and songs are saved if batteries (2X 1.5V) are fitted, then these can be saved to tape dump or in a M-64C RAM cartridge.



mem board





info RELATED FAMILY

tr8

Roland TR-8 - digital tr808 / 909 emulation from 2014.

SEE ALSO: TR-8 VS TR-909 AUDIO TEST

jomox xbase09 JOMOX Xbase 09 commercial analog-digital clone
novation drum station Novation drumstation rackmount digital clone from 1996
909 clone

DIY clone project from synthage.comVIDEO

tr909 clone

DIY clone project website
VIDEO





effet VST PLUGIN & SAMPLED there are some free and commercial samples set, app and VST:

  name price link demo
Waveshapper bedroom producer free
(tape processed)

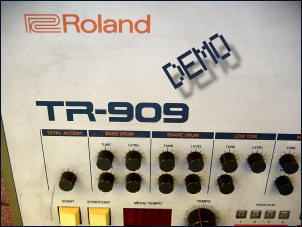

effet demo2
sampleset 2 simenschi.com free

effet N/A
909 free sound d16.pl commercial VST effet demo2
free sound Thomas Nomaier free VST
effet N/A
wave sounds wavealchemy commercial effet N/A



demoAUDIO DEMO

demo factory pattern
demo jampattern
demo broken toms :)
demo session with ELKA SYNTHEX and TB303



effet Soundcloud TR-909

demo1 demo2



video VIDEO CLIP SELECTION

Roland TR-909 Drum Machine demo Roland TR-909 & Elektron A TR-909 ROLAND TR-808
Drum Machine demo with Elektron A with ROLAND TR-808

cat tr909
Marcel with Tr909 and Sh101



roland tr909

hi resolution TR909







TR-909 FACTORY RESET PROCEDURE:

HOLD TRACK #1 AND PATTERN #1 AND POWER ON.

info
