Roland TR- 606
Drumatix Computer Controlled (1981)



Famous and portable analog machine with same TB-303 design

TR Transistor Rhythm are considered cult machines around the world.



drumatix
sound edit

info DRUM MACHINE main panel features 21 push button, 2 selector knobs and 8 knobs.

Back panel terminal connectors:
- mono signal ouput
- headphones
- start pedalswitch input
- din sync at 24 PPQ resolution
- switchtab master / slave
- 2 trigger outputs (tom 1 and tom 2).


info Power supply
is external 9V with negative center PSU.




info TECH main core CPU NEC D650C-128 (MASK ROM) manages 5 channels each with dedicated volume mixer section. Voiceboard generate 7 instruments: kick, snare, tom (x2), cymbal and open/close hh.

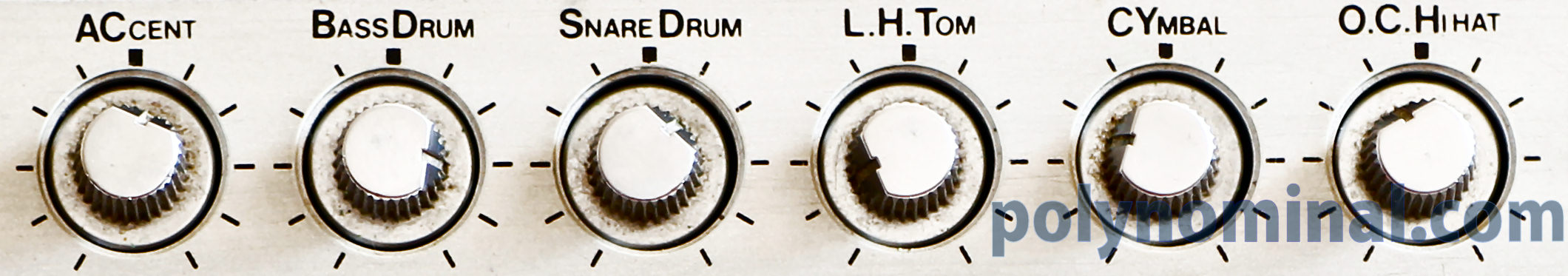

knobs 606

(ABOVE) click to magnify 606 knobs





info
EDIT INTERFACE quite simple with some keystroke, just select and instrument from knob selector and push play. Voilà.



roland tr606 tech






info SEQUENCER

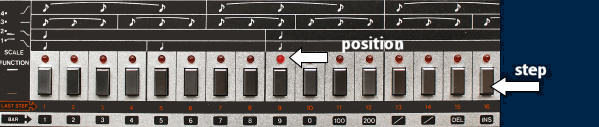

is based on classic Roland step mode recording or realtime using the tap button. Default signature is set to 16 steps, but the scale selector can modify to wished value.

sequencersequencer

A few edit functions: cancel, patterns chaining and special accent that can be applied to a whole step but not to an individual sound
.




info SYNC
internal tempo set from 40 to 300 BPM or It is possible to slave the machine using the sync 24 (like tb-303 or mc-202). Another useful synchronisation way is the trigger: simlpy fill the 606 TOM steps and plug it to some synth arpeggiators or simple sequencer like Elka Synthex or Roland Sh-101


sync clock




info MEMORY:
- 32 patterns
- 7 songs.
There is absolutely no way to backup your songs or patterns.


sync clock
HINT: When switched off the machine retains the memory if 4 C-size batteries are fitted, and when RUN led begins to flash, it is time to get fresh new batteries! just remember that it is wise to remove them after a long period just to avoid acid leaks.






info
MAINTENANCE If buying a second hand just watch out for the famous ALPS buttons that may need some replacement, but pay attention to cheap replacement parts.

tr6060 motherboard
- click above to zoom IN -






info MODIFICATION

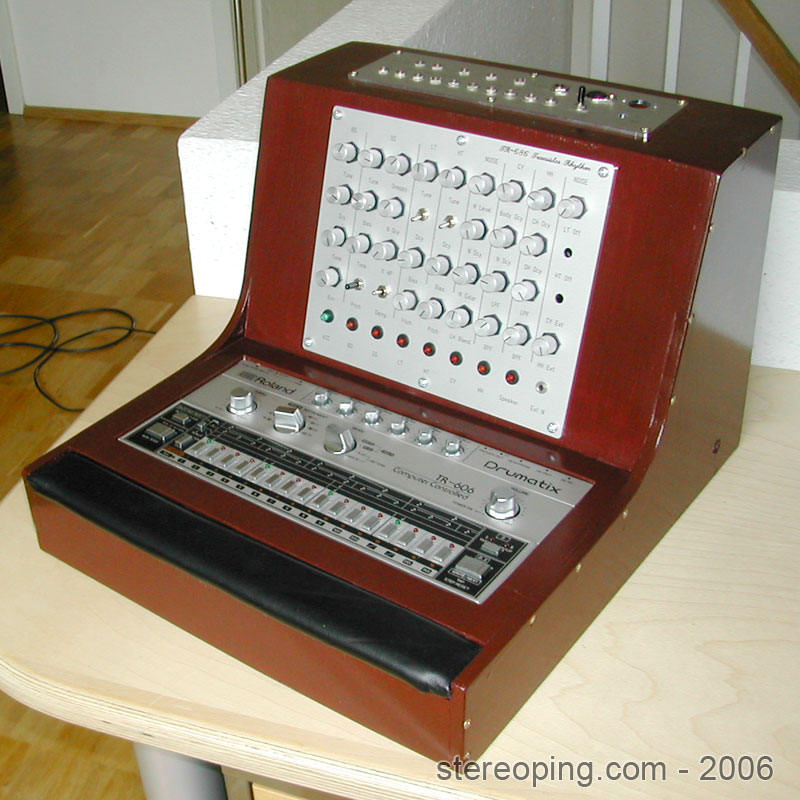

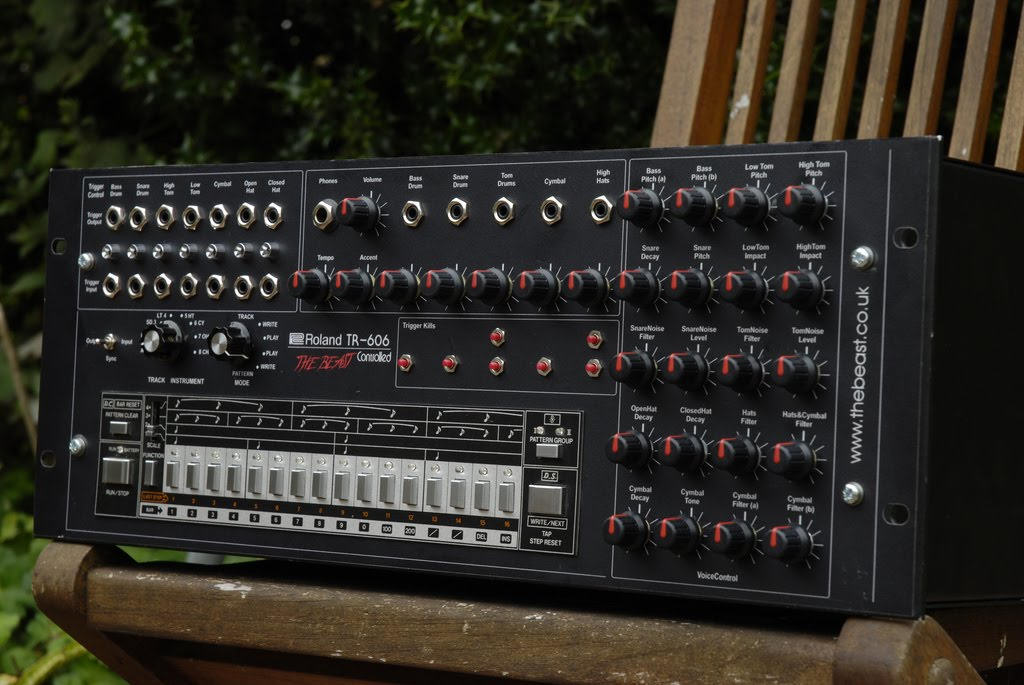

the 606 can be easily modded here's some of my works, trying to keep the original aspect as close as possible:
