Akai X7000







Akai X-7000

info Country: Japan
Weight: 14 Kg
Dimensions: 1039 (w) x 110 (h) x 346 (d) mm
audio demo trend price : 200€
manual demo video comments

Akai X7000
Sampling Keyboard (1986)



First Akai keyboard sampler from after the release of module model s612.

The X7000 is a big sampler old school machine with 12 bits resolution and tiny memory.

logo
edit

info KEYBOARD 61 keys keyboard with velocity and aftertouch.

Main panel features a 16 x 2 lines backlit LCD, a data encoder, 30 push buttons, 1 slider for main volume and 2 wheels for pitch and LFO modulation.

Rear panel terminal connectors:
- main signal out + headphones
- LCD contrast trimmer
- switch for master keyboard function (no signal out)
- Midi interface
- sustain pedalswitch input
- program UP pedalswitch input
- record pedalswitch input (it can be used also to trigger a sample)
- special Akai voice connector
- line and Mic inputs (with gain trimmers).





edit TECH main core based on a 8-bits Zilog Z80 manages 6 channels polyphony.
The X7000 is able to sample up to 6 sounds that can be assigned to a singles patch with assignable split points, useful to create drum kits or multisampled instruments.
Sampled sounds are assigned to voices, then each samples has some special edit functions:

CPu z80 - transpose pitch
- pitch tune
- backward play
- drum play (in this case the EG does not end at retrig).
NOTE: memory is not dynamically allocated resulting in same amount of RAM for each sample.




edit
SAMPLE the X7000 monophonically samples at 12 bits resolution with adjustable bandwidth rates from 4 to 40 kHz.

12 bits
Sampling frequency: Sampling time: Frequency response:
from 4 to 40 kHz from 8 to 0,8 s from low 25 Hz to 16 kHz

Samples can be edited with classic functions e.g. overdub, resample, trimmer/cut, loop point (forward, backward or alternate) automatic splicing function automatically finds the best loop point (at least sometimes).



edit SAMPLE IMPORT It is possible to import / export samples by Midi, but the process is not compliant to standard SDS sample DUMP.

data dump




edit EXPANSION
there are 2 optional boards available.

x7000 memory board - SXM007X battery backup system for memory
- (LEFT) ASK-70 increases number samples to 16 and memory about 512 kb.





editPERFORMANCE
system manages up to 6 indipendent parts with some functions:

x7000 tech - monophonic modes flag (2 priority modes)
- LFO to aftertouch amount
- Midi channel assign
- volume gain amount





edit

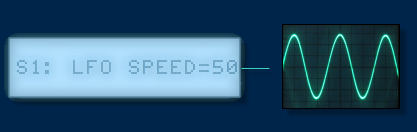

LFO a single delayed triangle modulator with 99 scaled intensity/depth values.
The X7000 LFO modulates only the pitch as a classic vibrato.

LFO demo HEAR modulation on vocoder voice





edit ENVELOPE
2 EGs (only release segment) and 2 destinations:
- EG1 amplitude
- EG2 filter cutoff.

EG



filter FILTER
non-resonant filter based on MF6CN a switched capacitor VCF a kind of an hybrid analog-digital offers -12dB/ Oct. slope.

filter

filterThe filter can be assigned to velocity and features a simple Keytrack function.

demo HEAR filter on loop







edit MIDI control changes are limited to 3 standard parameters:
- 7 volume
- 1 modulation
- 64 sustain




edit
MEMORY:
- 32 programs
- 256 kb sampling RAM (?)
- 2.8" quick disk storage (64 KB x 2 banks).

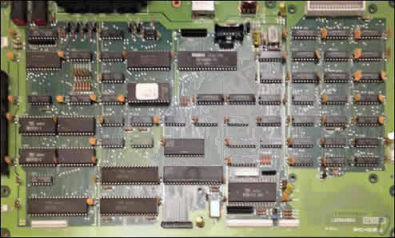

mainboard
LEFT Tech: spotted some IC memory MN41464.





edit
EDITOR not much on modern platform:
- SAMPLEVISION (OLD PC / MSDOS) PIC
- X7000 editor (Atari ST) pic below

edit x7000



edit MAINTENANCE a common problem is the replacement of the quick disk belt.

quick disk x7000 repair




edit
AKAI 12 bits S SERIES RELATED :

akai s612 S-612 the "S" samplers legend started here
akai s700 S-700 module version of X7000

akai s700

S-900 the next step after x7000 / S700, then s900 has been updated to S-950

akai s01 S-01 (1987) budget sampler, basic display no SCSI.
S-20 laptop version and Remix16 (and Japanese 88) with improved options and memory.




demo X7000 AUDIO DEMO:

demo EP: Rhodes library
demo Synth: Mellotron library
demo Synth: fat Akai from analog Akai Ax80
demo Synth: mighty lore from classic Korg M1
demo Synth: lofi brassy
demo Synth: 90 chill out pad
demo Harpsichord: ultima III theme
demo Bass: latelely bass TX (dedicate webpage)
demo Vocal: LFO on vocoder robot voice
demo FX: lo-fi drone
demo Drum: jungle loop forw/back
demo Drum: old school drum loop sample classic
demo Drum: velocity filter on drum loop
  u3



video VIDEO SELECTION



video1 video2 video3




Company: Akai
Model: X-7000
Class: Sampler keyboard
Keyboard: 61 keys
Dates: 1986
Display:16 x 2 lines
Resolution: 12 bits
Sampling Freq: 4 - 40 kHz
SDS import: yes
Polyphony: 6 voices
Multitimbric: 6 parts
Memory: 256 kb
Filter: analog low pass
Envelope: 2 EGs
LFO: 1 modulator
Midi: IN / OUT / THRU
CPU: Z80
Demo: 6



manual
MANUAL

manual
-AKAI X7000 SERVICE MANUAL / SCHEMATICS
-more demo

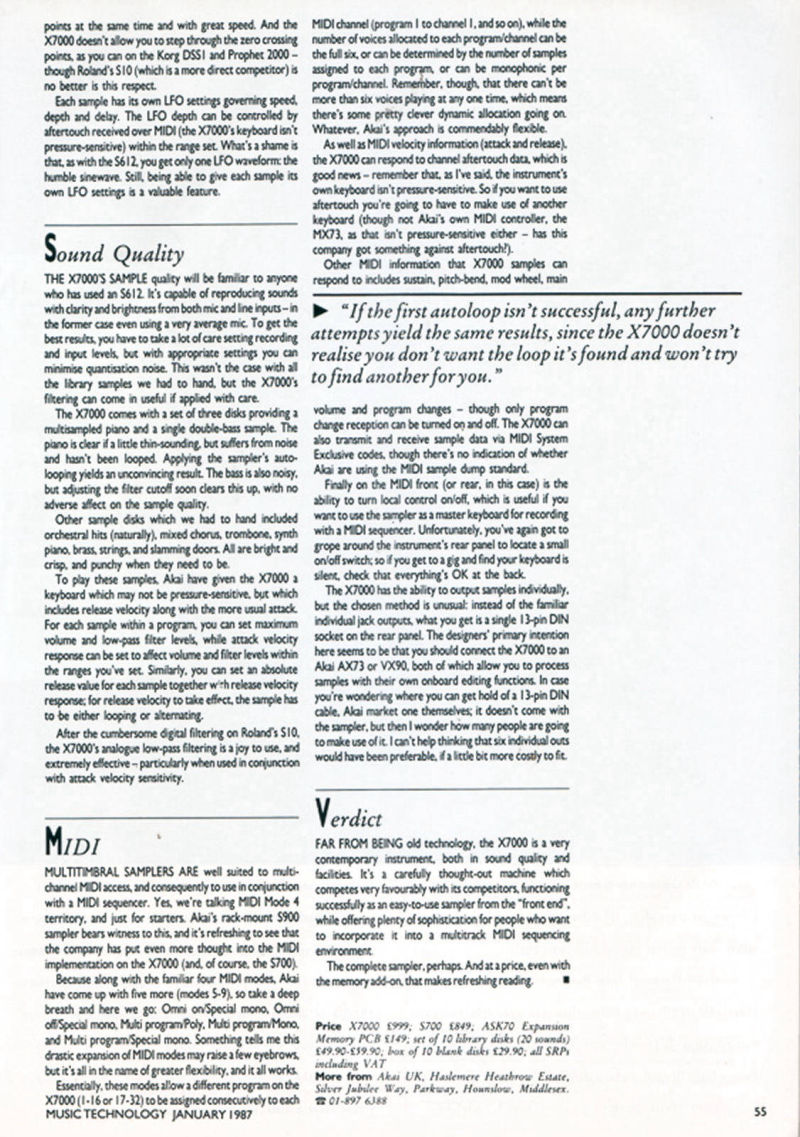

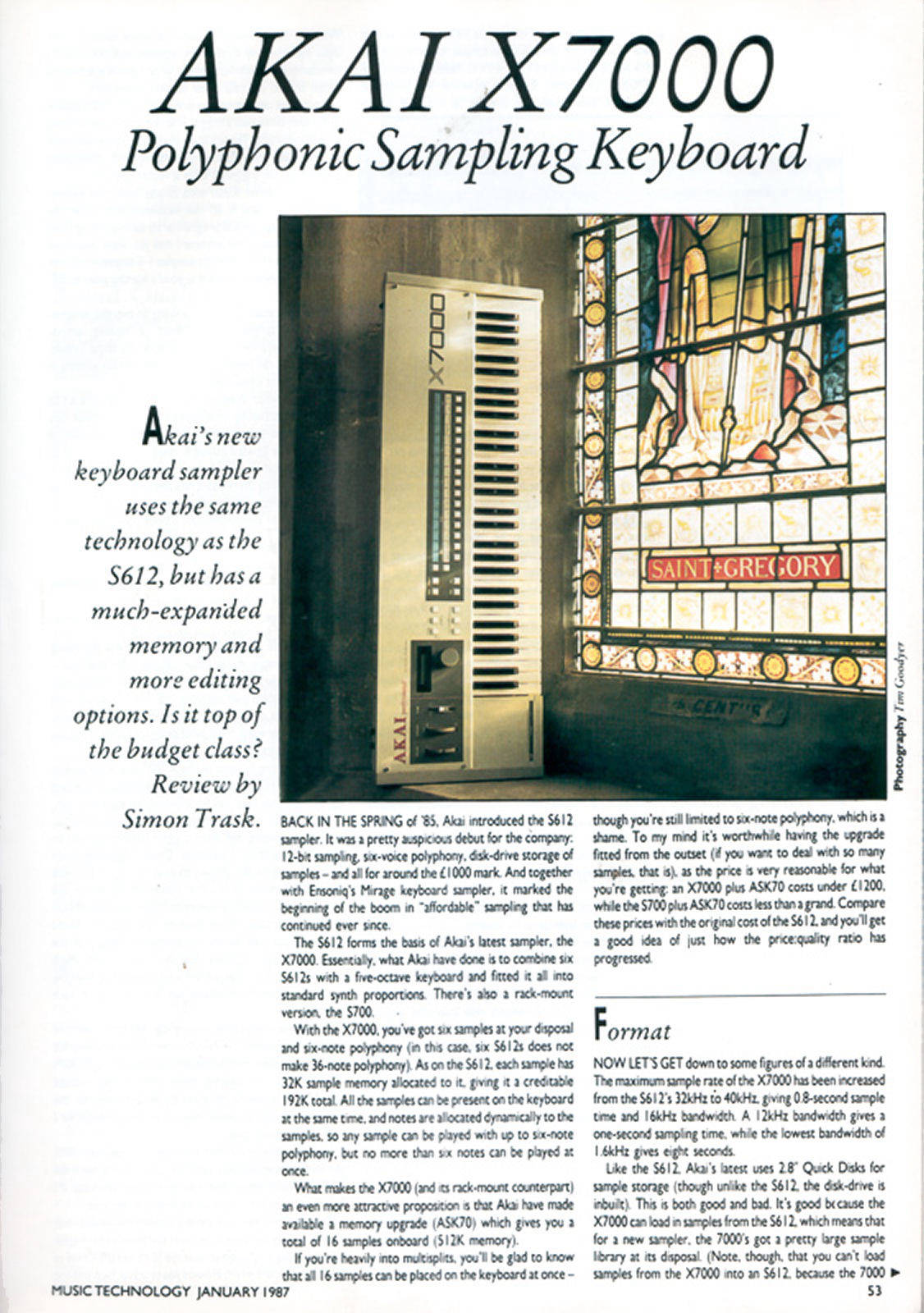

akai x7000 scan

adsr original Brochure


x7000 brochure

adsr original Brochure


akai x7000 scan 2

adsr original advert


mcp60 scan
edit X7000 with MPC60


akai x7000 new

adsr x7000original box



Akai X-7000 FOR SALEAkai X-7000 FOR SALE
CHECK OUT EBAY OFFERS



banner





x7000 sampling keyboard rear
awardSPECIAL AWARDS:
solid
solid
OLDSCHOOL LO FI Master


comment


REVIEW "Give it a try if you like grungy 12 bits compressed sound! if you don't have much room, you should maybe check out rack version S700 or the previous S612 with real-times controls."

manual manual
-cheap - quick disk
- lfo fi 12 bits
- memory limitation
-filter -bulky
