Akai S-700
Midi Digital Sampler (1987)



Rackmount module version of keyboard sampler station Akai X-7000 keeping same structure and 12 bits grungy sound.

logo
edit

info RACKMOUNT 2 rack height units.

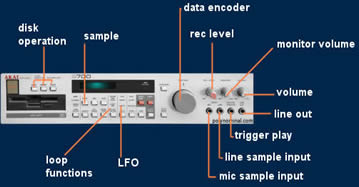

Main panel features a 16 x 2 lines backlit LCD (with contrast trimmer) , a data encoder, 3 knobs, a quick disk drive and 20 push buttons.

Rear panel terminal connectors:
- signal main out
- Midi interface
- program UP pedalswitch input
- special Akai connector for separate analog outputs.

Front panel terminal connectors:
- mic input / line input
- main signal out
- record / trigger play pedalswitch input.

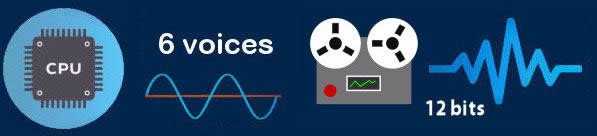

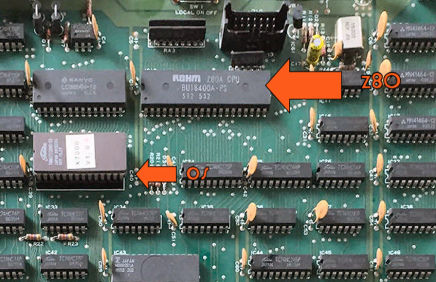

edit VOICE main core based on a 8-bits Zilog Z80 manages 6 channels polyphony.
STRUCTURE: Up to 6 samples can be assigned to a singles sound with split point, useful to create drum or multisampled instrument. Sampled sounds are assigned to voices, and each samples has some edit functions:
- transpose pitch
- pitch tune
- backward play
- drum play (EG does not end at retrig).
NOTE: memory is not dynamically allocated resulting in same amount of RAM for each sample.


CPu z80



edit SAMPLE the S700 monophonically samples at 12 bits resolution with adjustable bandwidth rates (check out the table below). Samples can be edited with classic functions such as: overdub, resample, trimmer/cut, loop point (forward, backward or alternate), in addition the automatic splicing automatically finds the best loop point.
SAMPLE IMPORT It is possible to import / export samples by Midi, but the process is not compliant to standard SDS sample DUMP.



12 bits

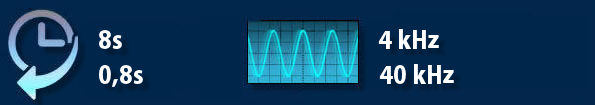

Sampling frequency: Sampling time: Frequency response:
from 4 to 40 kHz from 8 to 0,8 s from low 25 Hz to 16 kHz

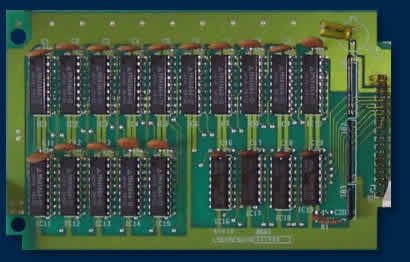

edit EXPANSION there are 2 optional boards:
- SXM007X battery backup system for memory
- Ask70 increases number samples to 16 and memory about 512 kb (not sure).


s700 memory board



editPERFORMANCE system manages up to 6 indipendent parts with some functions:
- mono mode (2)
- LFO to aftertouch
- midi channel
- gain volume.

akai s700 tech



edit LFO a single delayed triangular modulator with 99 scaled intensity/depth values.
The LFO modulates only the pitch (vibrato).


LFO




edit ENVELOPE
2 EGs (only release segment) and 2 destinations:
- amplitude
- filter cutoff.


EG



filter FILTER

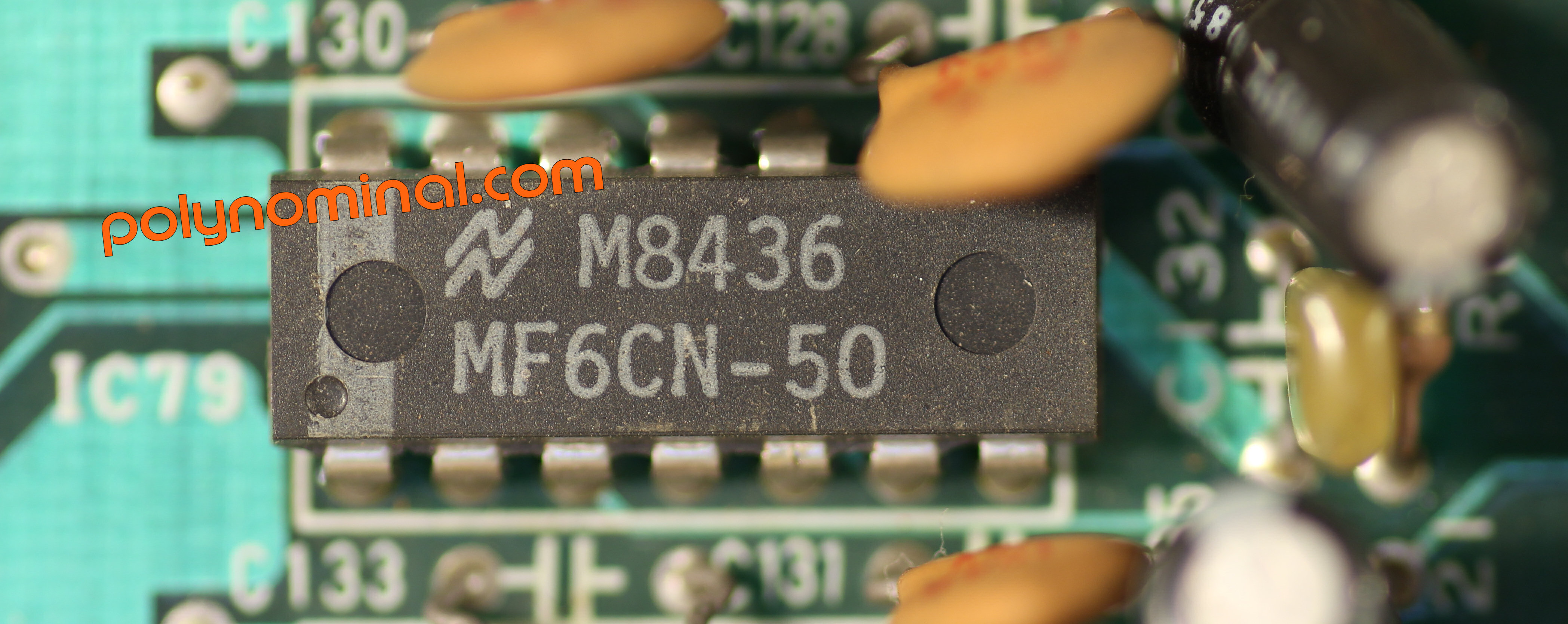

non-resonant filter based on a MF6CN a switched capacitor VCF a kind of an hybrid analog-digital offers -12dB/ Oct. slope.
TIP: The filter can be assigned to velocity and features a simple Keytrack function.


filter





edit
OS latest operating system on EPROM - This OS needs to be booted by the quick disk system.
Here you can DOWLOAD the 1.6 version (untested).

boot



edit
MEMORY:
- 32 programs
- 256 kb sampling RAM (?)
- 2.8" quick disk storage (64 KB x 2)
Tech: spotted some MN41464

dram




edit

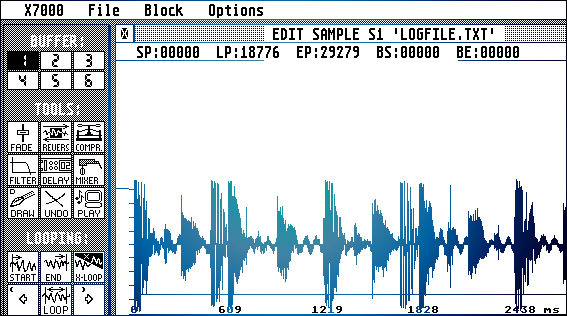

EDITOR not much on modern platform:
- SAMPLEVISION (OLD PC / MSDOS) PIC
- X7000 editor (Atari ST ) pic below


s700 editor

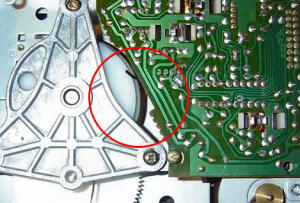

edit MAINTENANCE a common problem is the replacement of the quick disk belt.

quick disk


memory




edit

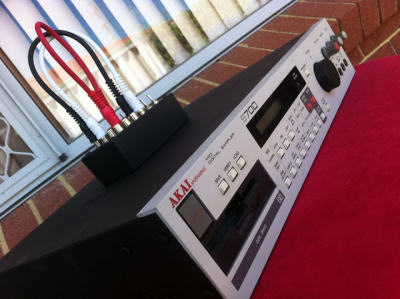

MODIFICATION most common mod is the circuit bending, to get an idea watch this VIDEO
(pic below from ebay auction)

akai s700 circuit bending







editAKAI 12 bits S SERIES RELATED :

akai s612 S-612 the "S" samplers legend started here
akai s700 X-7000 keyboard version of S700

akai s700

S-900 the next professional step after x7000 / S700, then s900 has been updated to S-950

akai s01 S-01 (1987) budget sampler, basic display no SCSI.
S-20 laptop version and Remix16 (and Japanese 88) with improved options and memory.




demo AUDIO DEMO

demo old school drum loop sample classic
demo velocity filter on drum loop
demo LFO on voice
demo Rhodes library
demo Mellotron library
demo lo-fi drone
demo we need more demo! want to share some? UPLOAD!



video VIDEO CLIP SELECTION

video1 video2 video2





s700 showcase

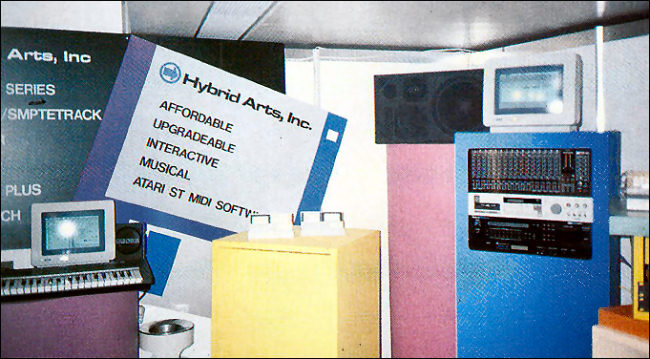

s700 showcase in 1988 along with famous LA synthesizer module Roland D50









manual
MANUAL



manual
-AKAI s700 SERVICE MANUAL / SCHEMATICS
-more demo
-free samples collection





banner









akai x7000 scan
adsr original Brochure




Akai S-700 FOR SALE
Akai X-7000 FOR SALE
CHECK OUT EBAY OFFERS












banner
















manual

-cheap
-lo fi 12 bits
-filter


manual

- quick disk
- memory limitation
