Eko Ritmo 20







Eko Ritmo 20

Country: audio demo italy
Weight: n/a
Dimensions: n/a
audio demo trend price : 100€
demo video comments

Eko Ritmo 20
Preset drum machine (198x)



Italian analog drum machine based on preset rhythms with mixer control.

logo
technical

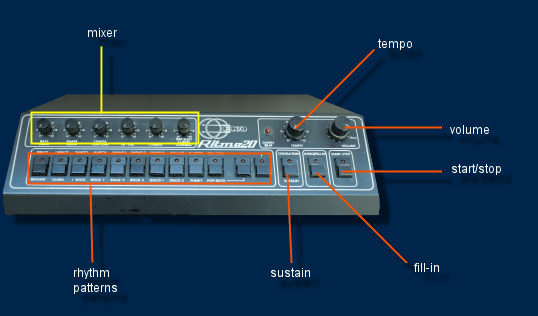

info DRUM MACHINE main panel features 15 knobs and 8 knobs:
- 1 tempo speed
- 1 master volume gain
- 6 percussions volume mixer


Rear panel terminal connectors:

- main signal out at low impedance
- main signal out at high impedance
- headphones out with own gain pot
- 5dins for custom footswitch pedal.






edit VOICE unit generates 6 voices with individual gain mix and 9 percussion: kick, tom*, snare, rimshot*, hihat, claves, conga*, cymbal and cowbell*



percussion


*=channel shared




edit INTERFACE
select a rhythm and push start.. uh?

ritmo 20 explained




edit RHYTHM MEMORY
unit cannot be programmed, however it features 20 different style-patterns that can with a FILL-in option.


rhythm
PRESET LISTS: waltzer (x2), swing (x2), chacha, disco (x2), shuffle, tango, ballad, beguine, funky, march, bossanova, rock (x4) and poprock






edit
MODDING I tried to find out the sync mode out for manycanceled or sanded IC.
No way to do anything without schematics or service manual.
if you have a service manual, please send it us as it will be shared here for free.


motherboard
- ABOVE - click to magnify





edit RELATED FAMILY:

eko rimo 12

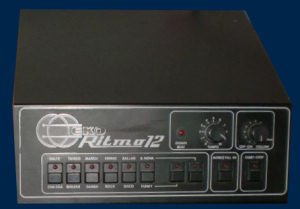

Eko ritmo 12 scaled down version with no mixer, less rhythms, less sounds VIDEO




edit EKO RITMO SAMPLES SET FOR SALE

buy eko ritmo sound set samples

edit DESCRIPTION
the ritmo machine 20 sounds pretty cool and dynamics but it features no MIDI and I do personally got crazy to find out a SYNC option...
besides, aren't you tired of static grandpa Chacha and Bajont patterns ?
edit


editWE have the solution
we do sampled the Italo box with the mighty AKAI MPC60 12 bits punchy converters! we also do give you original MPC60 RAW samples at 12bits, so you can convert them as you wish or import them to other samplers.



edit What's inside the RITMO SOUNDPACK?

- 11X .WAV files digitally converted from MPC60 to 44,1 kHz at 24 bits demo
- 11X .SND raw files original MPC60 - 12 bits at 40 kHz (mapped MPC60 min OS 3.10 or MPC3000) demo
- 11X .WAV files sampled by RME converters demo
- 45X .WAV files processed by OTO biscuit crusher demo




buy
PRICE 10€ digital delivery to your paypal email.

edit For more info, delivery issues or else just get in touch.






demo
AUDIO DEMO

demo Ritmo 20 pure
demo Soundpack demo: AKAI MPC60 pure SND 12 bits (internal sequencer)
demo Soundpack demo: AKAI MPC60 samples converted to 24 bits WAV
demo Soundpack demo: Ritmo directly sampled by RME converters
demo Soundpack demo: Ritmo crushed by OTO biscuit processor




video VIDEO SELECTION

eko ritmo 20 video
distorted RITMO



eko ritmo
Marcel the synthcat and EKO ritmo 20





Company: Eko
Model: Ritmo 20
Class: Drum Machine
Pads: none
Dates: 198X
Price: 100€
Technology: analog
N. Sounds: 9 percussions
Polyphony: 6 voices
Sequencer: none
Rec resolution: none
SYNC: none
Envelope: none
LFO: none
Memory: 20 patterns
Demo: 5


hires ritmo 20

edit Hi-res PIC



manual
SCHEMATICS / SERVICE MANUAL
- USER MANUAL


buy
BUY EKO RITMO 20
SAMPLE PACK

INFO

banner

audio demo
editDiscover the cheesy Eko Dreambox



eko rhythmaker
editDiscover EKO Rhythmaker



Eko Ritmo 20 FOR SALE
Eko Ritmo 20 FOR SALE
CHECK OUT EBAY OFFERS



banner





detail 1 sustain button mixer
awardSPECIAL AWARDS:

solid
solid
quite rare grandpa presets

comment

REVIEW "The poor's man Korg Kr55 made in Italy. Sounds very well and punchy, too bad there is no sync option and patterns are pretty cheesy! "

manual manual
-sounds pretty goods - limited edit
- quite rare
-no sync



Add Comment or Review
