Orla DSE-24 & 12
Dynamic Sound Expander (1980?)

Italian FM expander from the eighties rebranded from the German model Böhm 12/24 originally based on Yamaha FM chips.

There are 2 rackmount models:
- DSE 24: voices polyphony
- DSE 12: voices polyphony.
There are 2 DSE versions with different design: a black one and a grey one.

Note: we do sold this machine long time ago, if you want to add something or some contribution (patch, sounds, documents) just drop us a line.

dse 24 logo
waveforms

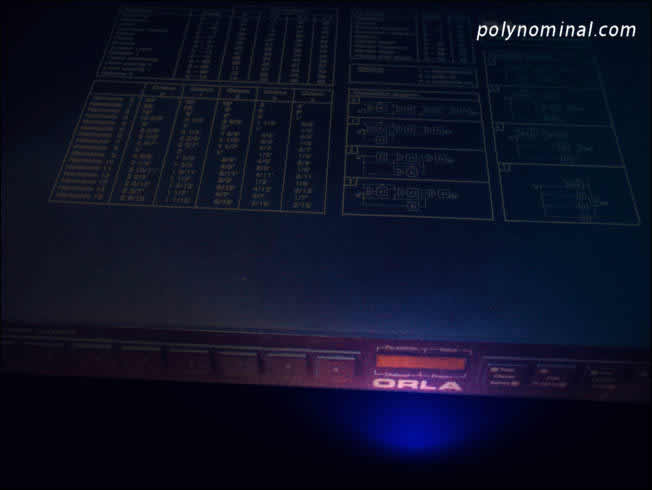

info RACKMOUNT a single unit. Main panel features a simple segments display, 15 buttons and 1 volume knob. NOTE: all available synthesis functions are printed above the rack.

Back panel terminal connectors:
- master out
- Midi interface
- tape interface
- footswitch input for patch increase.





edit VOICE
up to 24 voices polyphony which hardware is based on Yamaha YM chips:
- 4 oscillators operators
- 8 connection diagram algorithms
(LIST DIAGRAM).



fm synthesis



edit
FM SYNTHESIS concept is close to 4OP Yamaha TX-81Z concept but with only sinewave and thus no harmonic variations.

There are 4 sinewave operators organized as algorithms, assigned as carrier or modulator linked between them on different pathways interacting on their harmonic contents depending on the variable feedback strength.
- carrier: defines the amplitude and the spectral frequency
- modulator: sets the sound timbre and the relative harmonic contents.

The module offers 8 algorithms with frequency ratio or fixed frequency: the output is fed back to its input with 7 different levels feedback, as general rule: high values feedback results in richer harmonic contents.



lfo LFO 2 delayed modulators with variable depth amount and 2 destinations:
- LFO amplitude
- LFO pitch.



fx ENVELOPE
up to 5 EGs:
- 1 EG for each OP: 4 segments +1 sustain time
- 1 EG pitch and 7 preset templates
- EG scaling tracking amplitude on lower or higher octaves.




performance PERFORMANCE
up to 16 parts with some functions:
- monophonic mode with glide option
- voices stack
- detune mode.



fx EFFECT
internal analog chorus based on BBD TDA 1022.

orla dse24 motherboard


memory MEMORY
machines exists in 2 different OS versions (ROM sets):
- 1 bank of 100 patches
- 2 banks of 100patches.
MIDI implementation responds to Midi System Exclusives dump.


orla dse24 motherboard





family EDITOR not much around:
- UNIMAN for Atari ST (pic below):

orla dse24 motherboard



family RELATED FAMILY:

Bohm Dynamic Dse 24 Bohm Dynamic DSE-24 Original German version... the same.
ORLA DSE-9

ORLA DSE-9 seems to be a half rack module. Still with 4 OP structure

VIDEO





effet VST PLUGIN / SAMPLED VERSION nothing directly related to Orla or Bohm, but galore of free FM VST and commercial samples set:

  name price download demo
dexed VST plugin -DEXED
-MDA DX10

-OXE FM SYNTH
-VX7
-HEXTER
free VST
  dexed FM emulation




demoAUDIO DEMO


demo HYDROGENE FM DEMO
demo demo by Alessandro Petrini




videoVIDEO CLIP SELECTION

Böhm 12/24 synthesizer
Böhm 12/24 synthesizer





orla dse24










manual
-DSE12 / DSE24 manual and schematics









algorithms list
DSE ALGORITHM enlarge

















APHEX TWIN JOKE APHEX TWIN
The DSE-24 is mentionend on the gear list of "syro" album. Probaly one of it's most famous "hardware" joke along with Cheetah MS800









ORLA DSE-24
for sale

orla dse24 for sale
CHECK OUT EBAY OFFERS











motherboard1 crictuit eprom DSE orla


manual

- BBD effect
- FM
-uncommon

manual

- edit
- interface
- it's like a Yamaha FM


comment


REVIEW "Minimal interface, hard to edit and NO editors around! The DSE sounds with its own character, the analog chorus is a good point "
