Moog Minitaur
Analog Bass Synthesizer (2012)



A compact module spinoff from classic pedal synth Moog Taurus 3 (2008) dedicated to analog bass sounds.

NOTE: this review is based on OS 2.0 with new features, you can update your Minitaur freely at Moog website.

SYNTH MODULE Main panel features 17 knobs, 1 master fine tune trimmer ( +/- 1 semitone) and 4 push buttons.

Rear panel terminal connectors:
- main signal out
- Midi input
- USB interface
- external signal input
- CV / gate pitch input (from 0 to +5V range)
- CV VCF control
- CV VCA control.

Power supply is a 12V external PSU DC with positive in center.





VOICE The minitaur is an analog monophonic synthesizer based on 2 VCO oscillator VCO1 (master) and VCO2. Since it is dedicated to Bass sounds, the Module responds up to C5 (72) Midi note.

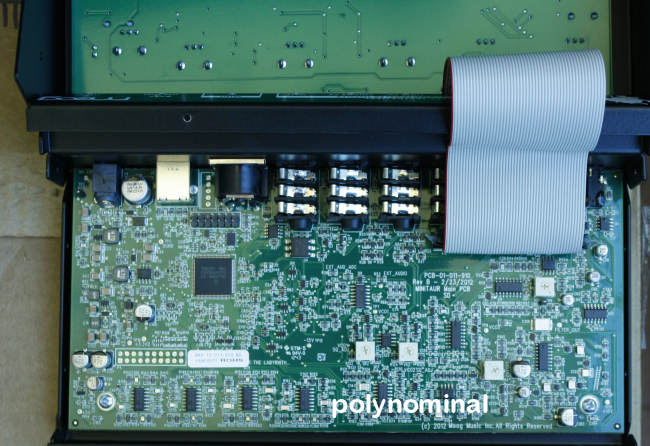

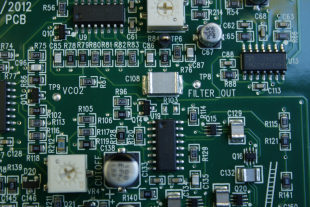

TECH: SMD board spotted DSP TMS 320980.



	VCO1	VCO2
shapes	square / sawtooth	square / sawtooth
mix gain	yes	yes
detune	no	yes +-1 octave*
pulse width	no	no
sync	yes 1>2**	/

* VCO fine tuning can be controlled only by external software
** accessible only using CC#81

Minitaur oscillator at oscilloscope



FILTER classic Moog 4-poles resonant (up to self-oscillation) low pass filter based on transistor ladder (range from 20 to 20000 Hz) and bipolar EG amount contour. External source signal can be filtered - relative input gain can be adjusted using [glide + VCO1 level] or external software.





LFO 1 triangle modulator and 2 destinations sharing same frequency (range from 0.01Hz to 100Hz)
1- VCF filter
2- VCO pitch.
The LFO amount can be set only by external software or Midi CC#13/12 and can be different for VCF/VCO, in addition it can be synched to Midi clock according to 22 tempo dividers.

ENVELOPE there are 2 EG described as an ADSR , but it is a bit particular: Decay and Release segments are controlled by the Decay knob, while the Release segment is enabled or disabled via Release button - in any cased Decay and Release values are the same.
- EG1 VCA
- EG2 VCF.





PERFORMANCE some handy functions
- glide time can be set with the dedicated knob, however there are
- 3 glide models: Linear Constant rate, Linear Constant Time and Exponential (original from 1974 Moog Taurus)
- Legato mode can be activated by Midi CC# 83 or external software.
- Poly Chain up to 16 units can be linked
- Octave transpose
- Custom tuning scales
- Relative or absolute knobs
- Gate always on aka drone mode.



MIDI the Minitaur is dedicated to Bass, so it works in a Midi range from 0 to 72.
All knobs can be recorded by dedicated Midi CC# or NRPN.



MEMORY (only OS 2.0)
- 128 internal patches.





EDITOR Moog gives away excellent editor for free as well as OS update.



RELATED FAMILY:

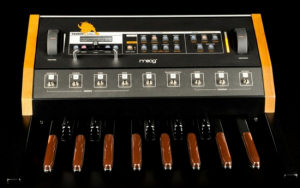

	Moog TAURUS 3 steroid deluxe version with display, pedal board and extra features VIDEO Taurus I was released in 1974 VIDEO Taurus II in 1981 VIDEO
	Moog Minitaur white edition: different outfit with optional wood kit (picture from MOOG website)



VST PLUGIN / SAMPLED VERSION there is no plugin VST however a lot of free samples set:

	name	price	link	demo
	LIVID	free 3 mb samples .wav or Ableton		n/a
	francispreve.blogspot.com	free 12 mb samples Ableton		n/a
	polynominal.com	FREE KONTAKT 15mb -4 full bass patches		n/a
