Yamaha DD-14
Super Session Player (1993)
Super Session Player (1993)
OVERVIEW Portable drum pad all made out of plastic featuring 8 pads with adjustable sensivity, numeric display and internal stereo speakers (3W RMS 8 Ohm). Also a special "scraper pad" for a kind of ribbon scratching effects, quite similar on the sampler Yamaha SU-10.
It can operate on both PSU (pa3/pa4)or batteries (6xC 1,5V).

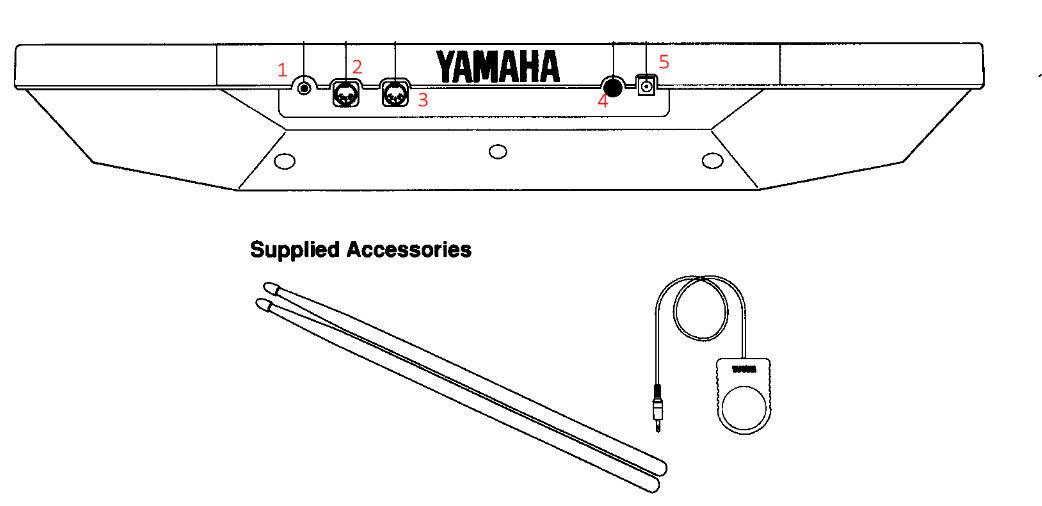

TERMINAL CONNECTORS:
1- foot pedal input
2- Midi OUT
3- Midi IN
4- Headphones out
5- PSU (10/12VDC with positive center)
The drumpad came with a pair of percussion stick and a foot pedal.
SOUND The Basically it's a rompler with 24 ROM sets + 5 RAM users.
Each set memorize wich sound is assigned to 1 of the 75 available sounds,mainly percussive sounds but also musical ones like marimba. It is NOT possible to add sound nor modify them.
PERFORMANCE roll option, echo and flam for real time performance
AUTO ACCOMPANIMENT features 100 ROM styles to play with, with auto bass function , variation and fill-ins.
It can be synched to external Midi clock. Special Chord Memory has 2 entry modes:
- Real-time quantized record where each pad and combination acts as a key/chord variation (Maj, Min, 7th, Min 7th, Major 7th, 7sus4, m7-5, dim)
- Step record mode where you can enter a chord, specify how long it will last, then go on to the next one
MIDI sounds can be triggered from external sequencer and or keyboards, but can be useful also as a Midi pad. It does reconizes Velocity in both directions.
Brand: Yamaha
Model: DD14
Type: digital drum pad with PCM samples
Made In :Japan
Date Produced: 1993
Connectors:
Number of Pads: 8
Polyphony: 28 notes
Preset Drumkits: 25
User Drumkits: 5
Sounds: 84 patches
Dimensions 608 mm x 281 mm x 105 mm
Weight 2.2 kg
YAMAHA DD14
