Korg 01R/W
Synth module (1991)



Rackmount digital module of the Korg 01 synthesizer.

Tge direct evolution from KORG M1 keyboard and T series including a new interesting digital sound process WAVESHAPING technology.

korg 01 w display
buttons

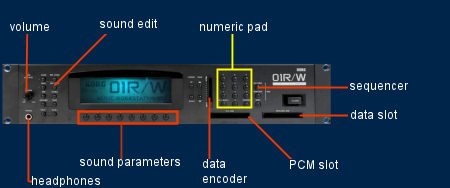

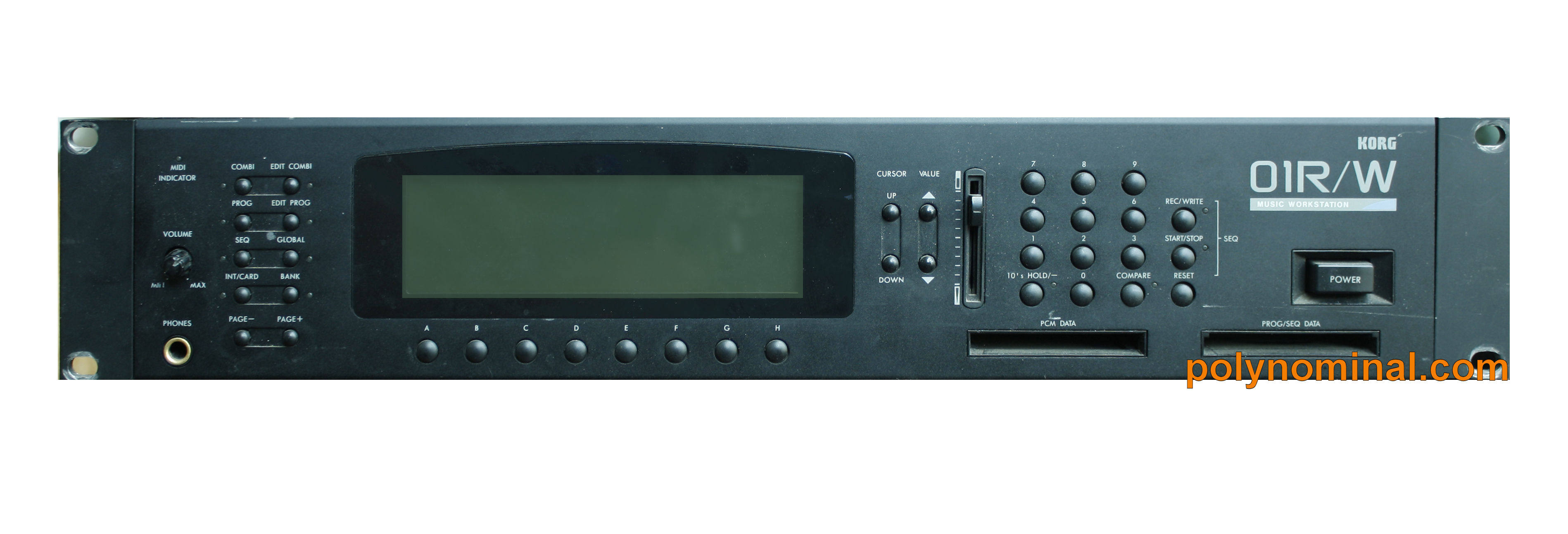

info RACKMOUNT 2 units. Main panel features a backlit 240 x 64 pixels display, 37 buttons and 1 data slider.

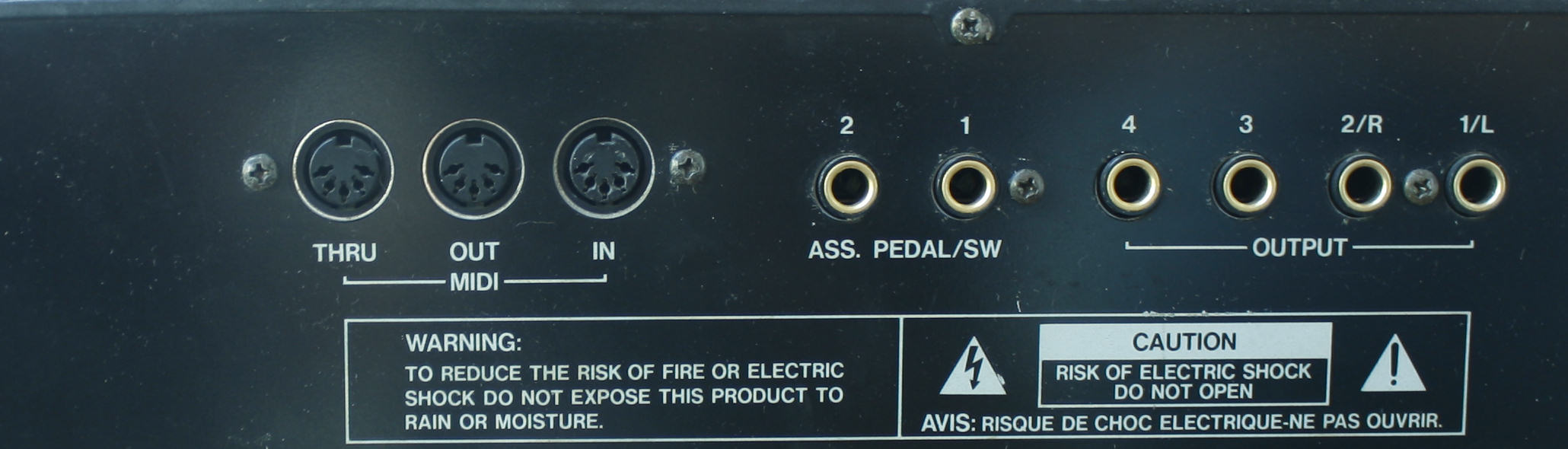

Back panel terminal connectors:
- main signal out
- AUX outs
- Midi interface
- double assignable pedalswitche inputs.

Front panel terminal connectors:
- headphones out
- 2 card slots for data and PCM.

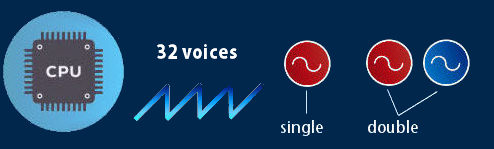

edit SOUND modules based on a 16 bits NEC V50 (μPD70216) CPU manages 32 voices polyphony based on Korg AI2 synthesis with a DAC Burr Brown PCM55HP.
A basic patch is composed 1 or 2 samples (oscillators) that can be set in 2 manners:
- single: 1 oscillator per sound
- double: 2 oscillators per sound.
Just a few oscillator parameters can be edited including: volume, tuning, panning and delay startwave.


oscillators



waveshaping WAVETABLE internal 6 MB ROM contains 255 PCM coded at 32 kHz wavetable including 3 kinds of samples categories:
- acoustic instruments
- FM sampled
- mathematically generated.


sample wavetable




waveshaping EXPANSION More waves can be added using special PCM cards also compatible with 03RW.
list is NOT complete, cards picture from ebay auction we do not have them yet.


sample wavetable

name n. cards catalog producer picture

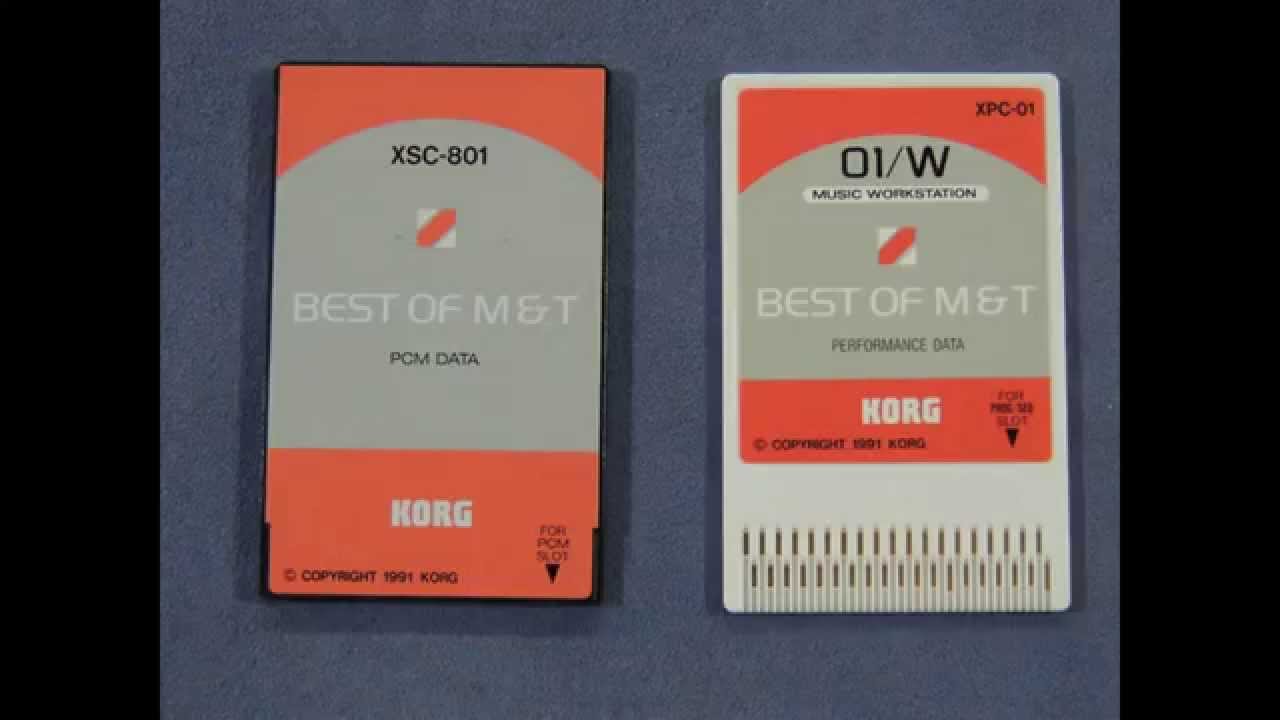

Best of M&T 2 XPC-01 + XSC-801 Korg card

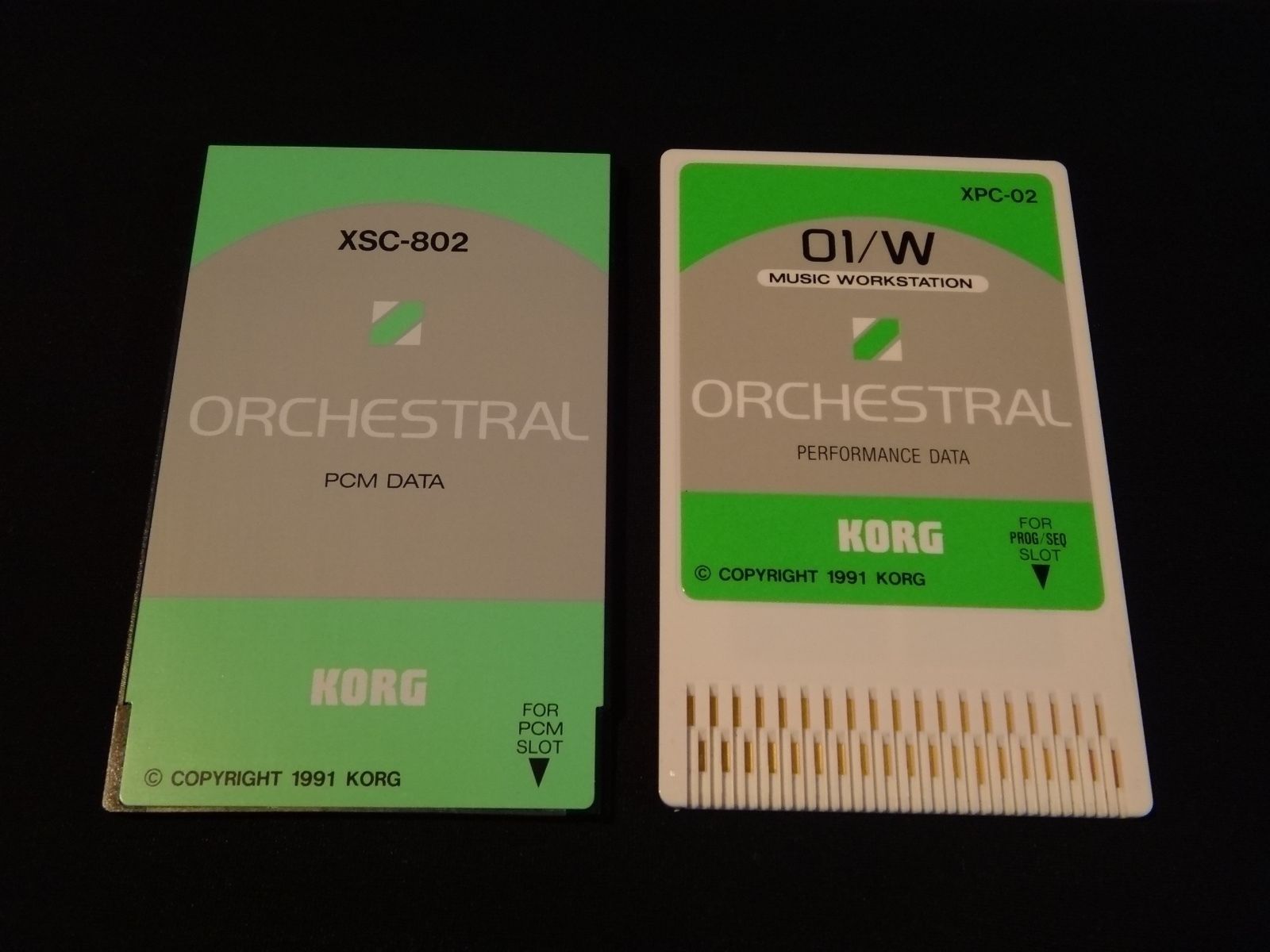

Orchestral 2 XPC-02 + XSC-802 Korg card
Piano/Keyboard   2 XPC-03 + XSC-803 Korg

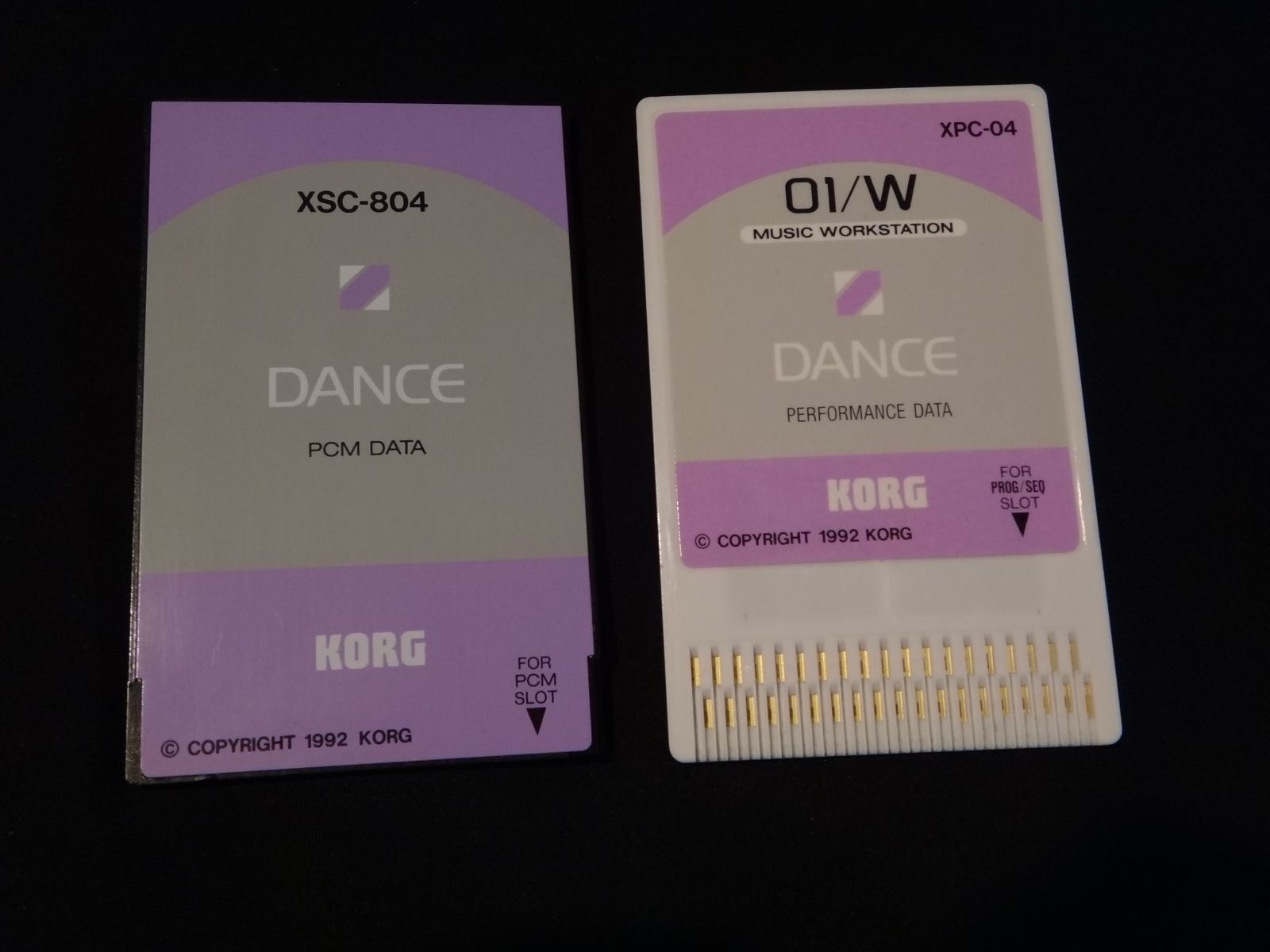

Dance 2 XPC-04 + XSC-804 Korg card

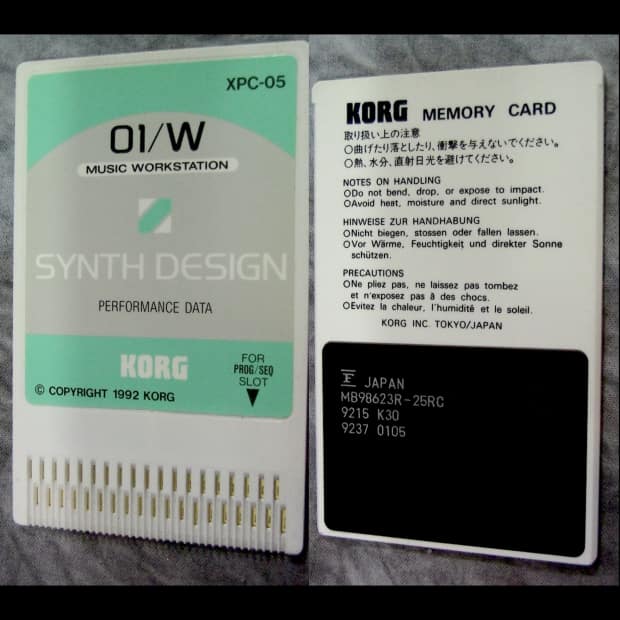

Synth Design  2 XPC-05 + XSC-805 Korg card
Ethnic 2 XPC-06 + XSC-806 Korg

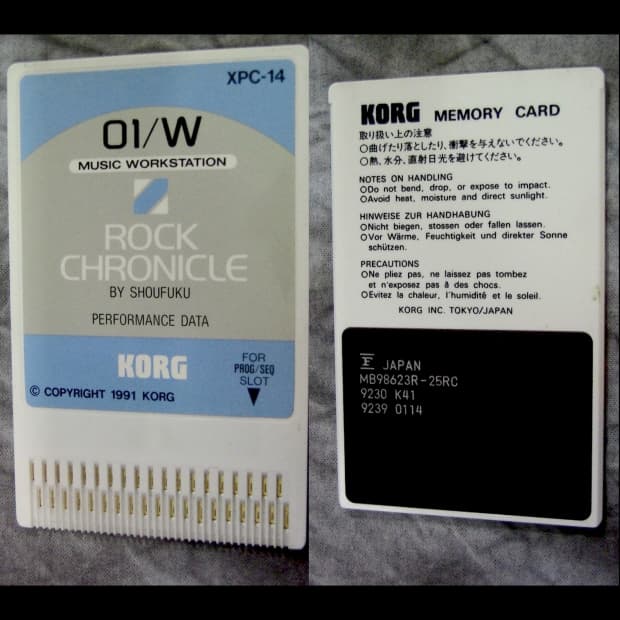

Rock chronicle  1   Korg card

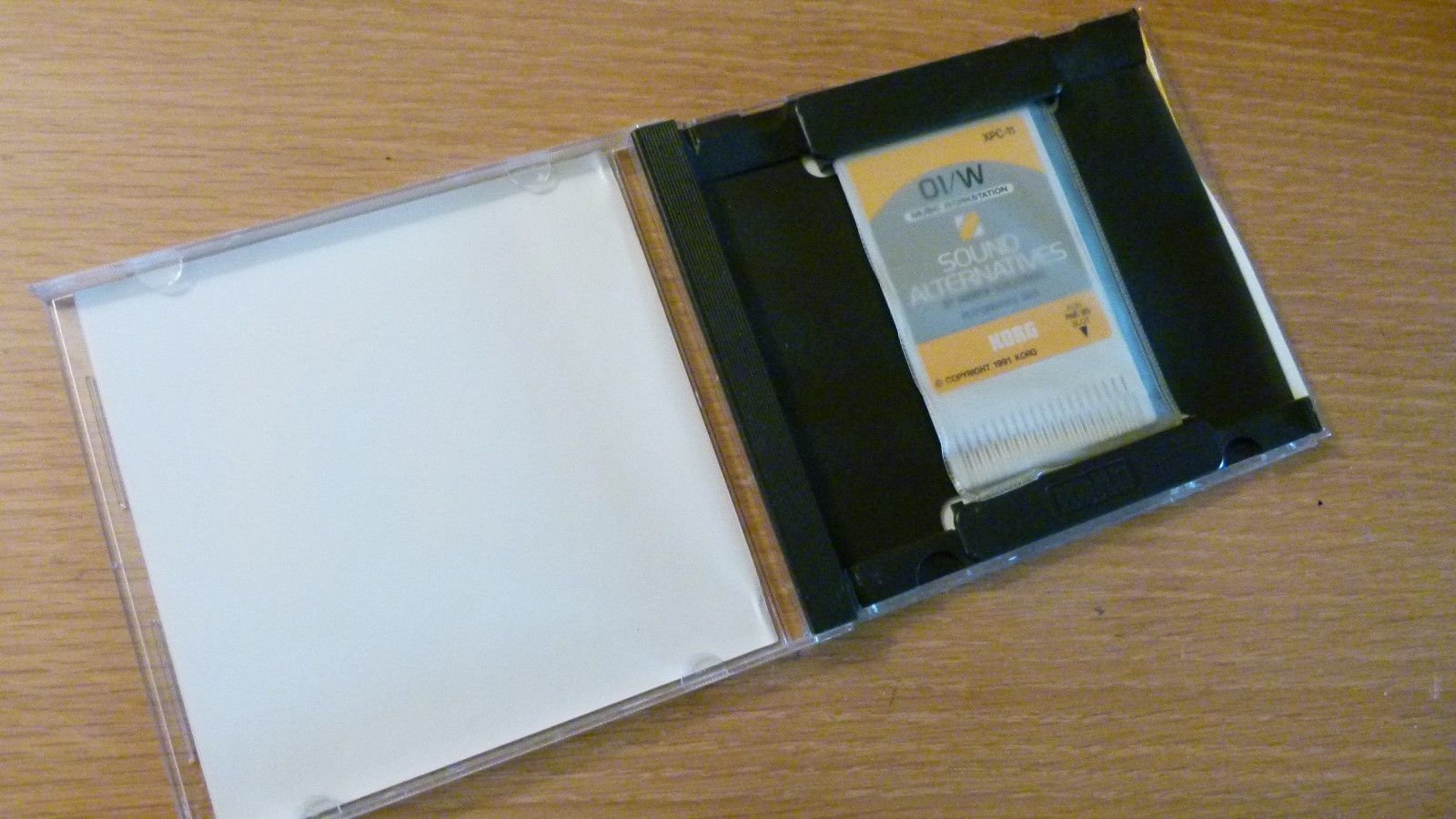

Sounds alternative 1 XPC-11 Korg card

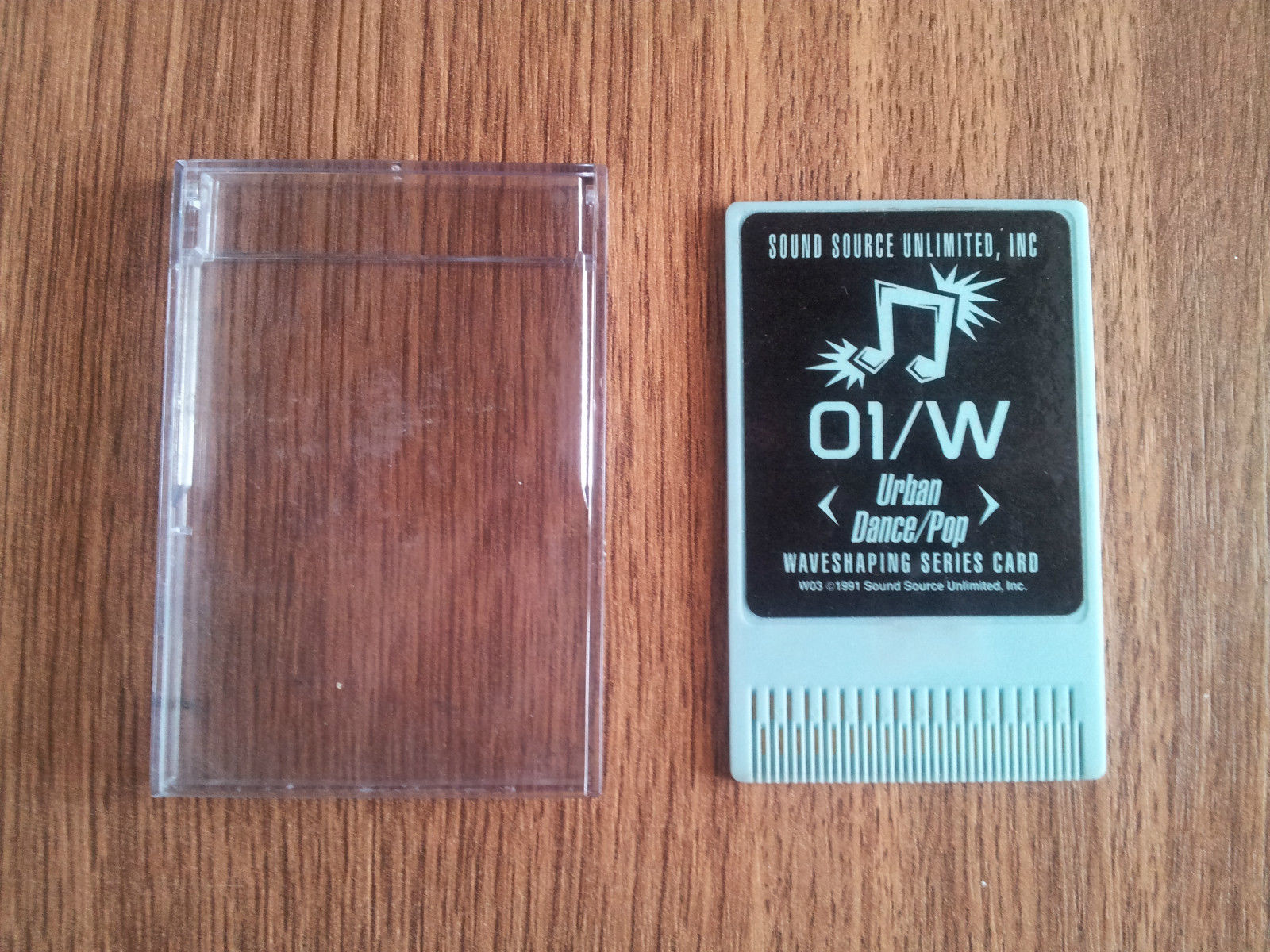

Urban dance pop 1 W03 Sound source card

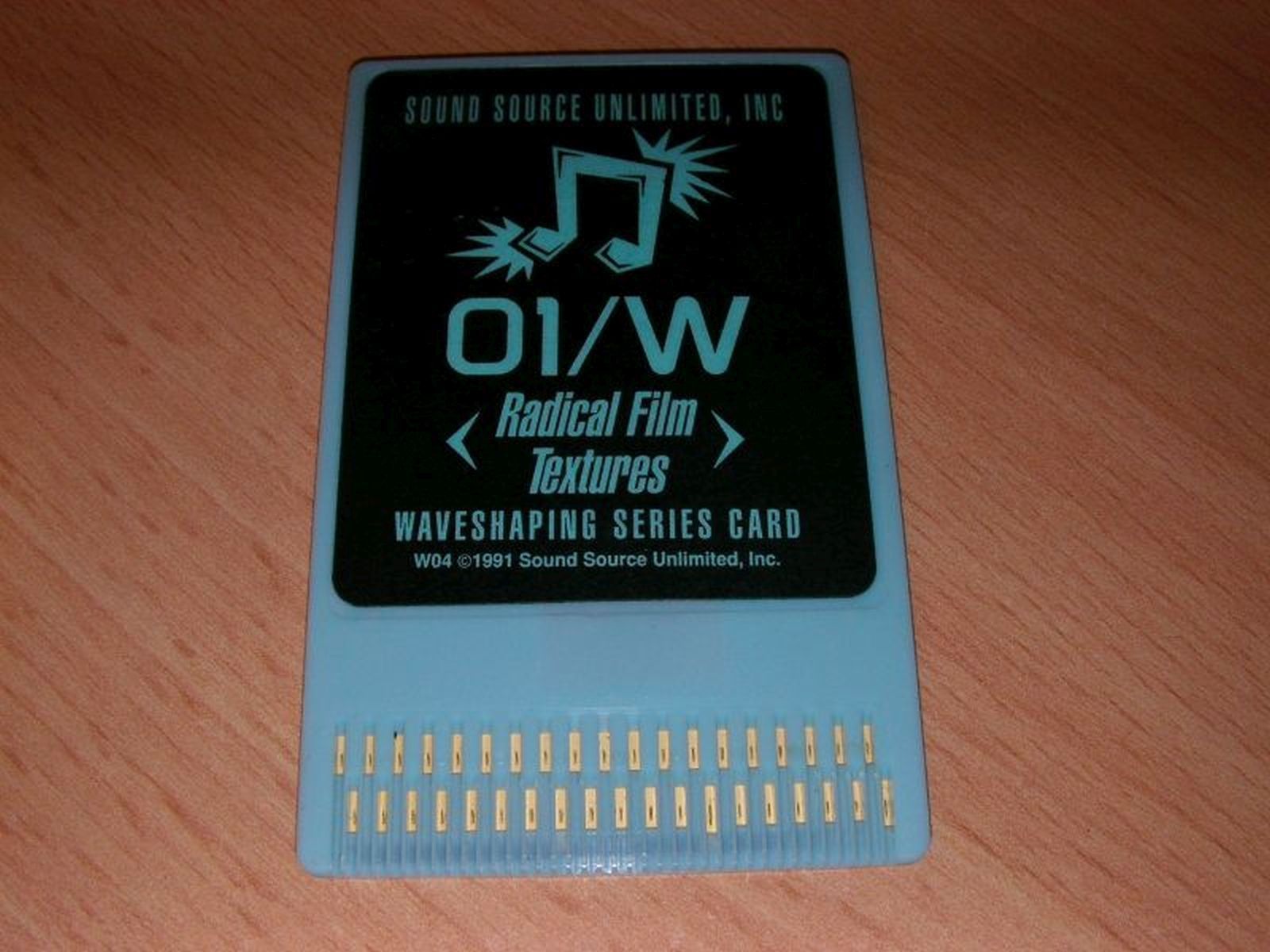

Radical film texture 1 W04 Sound source card

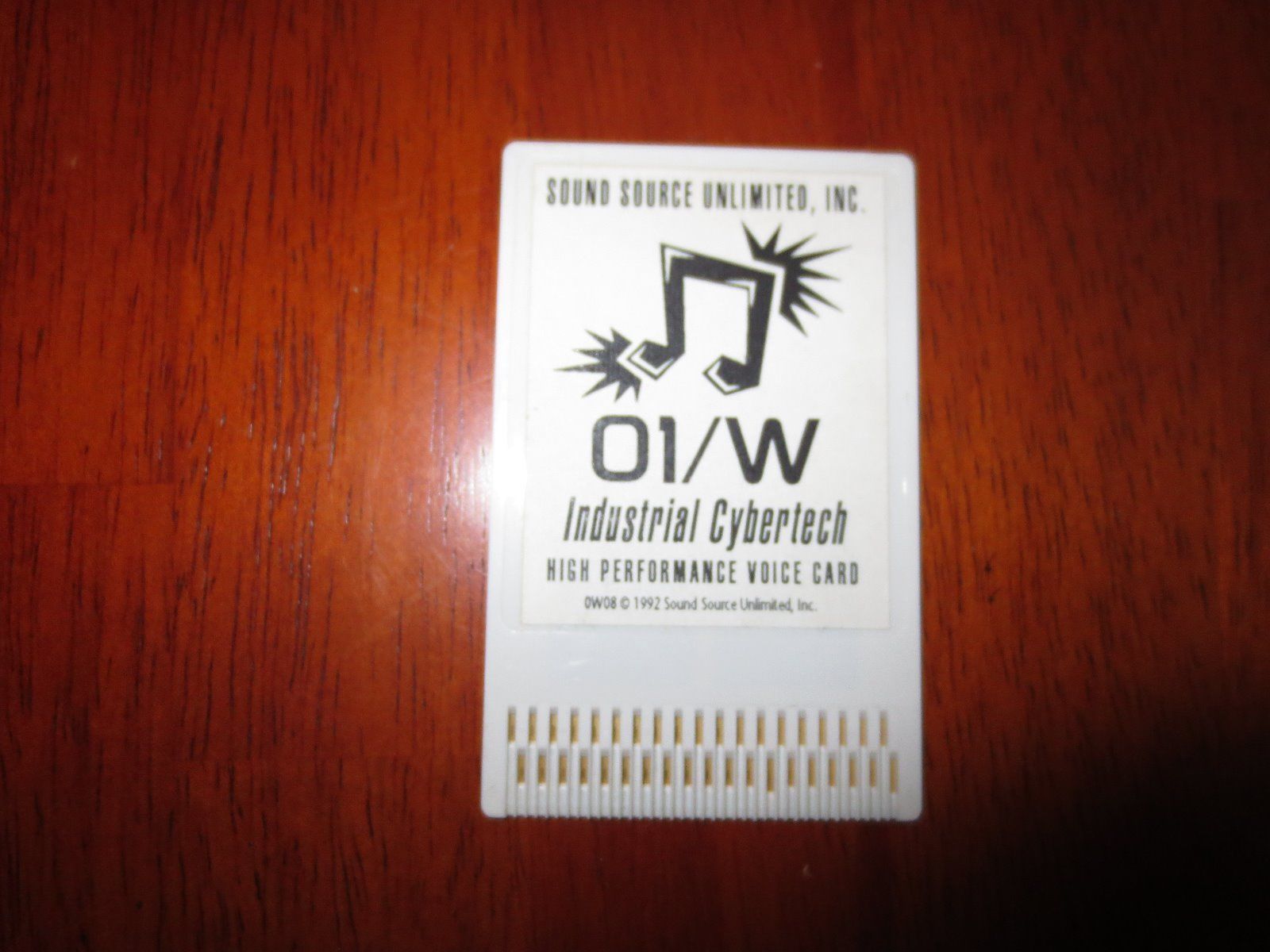

Industrial cybertech 1 W08 Sound source card



waveshaping WAVESHAPER digital process changes the harmonics contents of a sample distorting it with 59 cycled waveforms each with specific spectral harmonics. Waveshapes are not really editable except for the shaping envelope + amount applied to the sample.

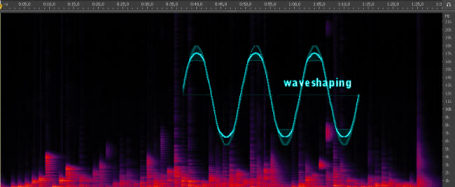

AUDIO EXAMPLE MP3 demo the wave sinewave starts with no waveshaper then processed with same EG through the 59 waveshapers one after one. Below how the waves changes.
TECH :Years later waveshaping had been re-implemented on korg synthesizers including: Z1- Prophecy - Microkorg XL


waveshaper



keyboard PERFORMANCE system manages 8 combination parts and some individual parameters:
- Midi channel
- pitch detune
- transpose
- volume / pan
- split zone
- analog out assign.

korg 01rw

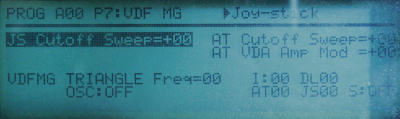

fx LFO 3 digital modulators MGs:
- LFO MG1 modulates oscillator 1
- LFO MG2 modulates oscillator 2
- LFO MG3 modulates filter VDF cutoff (the MG VDF can be activated individually to OSC1 or OSC2).
Some extra LFO functions like delay start, note retrig, modulation by aftertouch and ajustable depth.
5 possible waveforms: triangle, saw-up, saw-down, square and random.


01rw

filter ENVELOPE 5 digital EGs:
- EG VDA 1 amplitude for oscillator 1: 4 segments EG + 3 times
- EG VDA 2 amplitude for oscillator 2: 4 segments EG + 3 times
- EG VDF filter: 4 segments EG + 3 time
- EG pitch: 3 segments model + 3 times.




filter FILTER the VDF is a digital 2-poles lowpass filter, the emphasis Q emulation acts as resonance replacement (same as KORG M1) Extra Keytrack function for cutoff.


vdf



fx EFFECT double engine processors at 16 bits in serial or parallel mode.
This section offers 47 different effects such as reverb, delay, overdrive, EQ, chorus, rotary speaker and some combo of them.




sequencer SEQUENCER 16 tracks recordable by real time or step by step mode. Recording system handles various handy functions such as: OVERWITE, PUNCH IN, LOOP, OVERDUB, TRANSPOSE, FILTER EVENT, BOUNCE, COPY TRACK, VELOCITY MODIFY.
SYNC sequencer can be set to external or internal Midi clock in master or slave mode.


vdf



lfo EDITOR some computer-based editors for 01w and 01RW:
- Midiquest (PC/MAC, commercial)
- Soundtower 01wEditPro (PC, commercial)
- Atari EMC editor (atari ST)


korg 01w editor





fx MAINTENANCE 2 common issues:

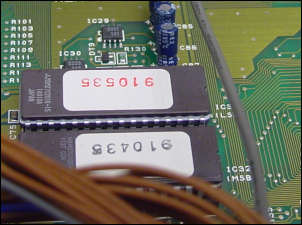

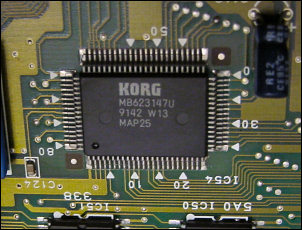

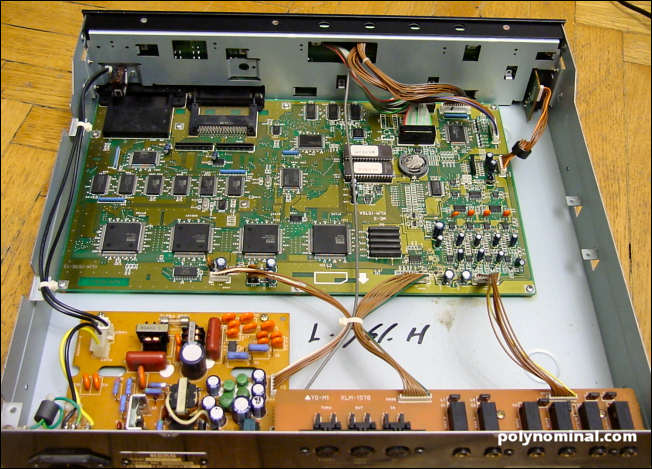

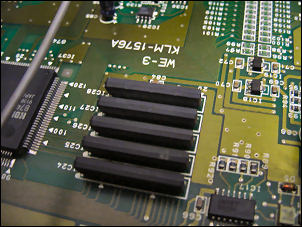

-after some years the screen may disappear as well as sound generation. Some bad capacitors leak inside creating corrosion around tracks, some luck there is no custom KORG IC around, I had to replace these: C85, C29 and C30, C102, C103 and C130.
It seems that NOT all series suffer from this problem.


- display backlight: LCD fades out you have to replace the E-foil. Quite easy to do requiring some basic soldering skills.

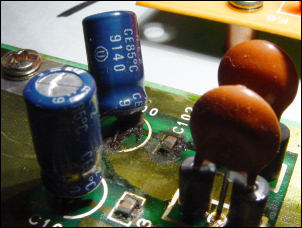

right picture: bad capacitors alert!



capacitors




fx MEMORY
:
- 200 RAM patches
- 200 RAM combi
- 10 songs
- 7000 notes

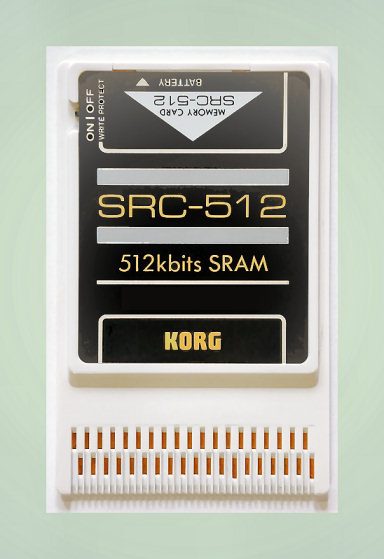

RAM doubled using l RAM card Korg SRC-512.

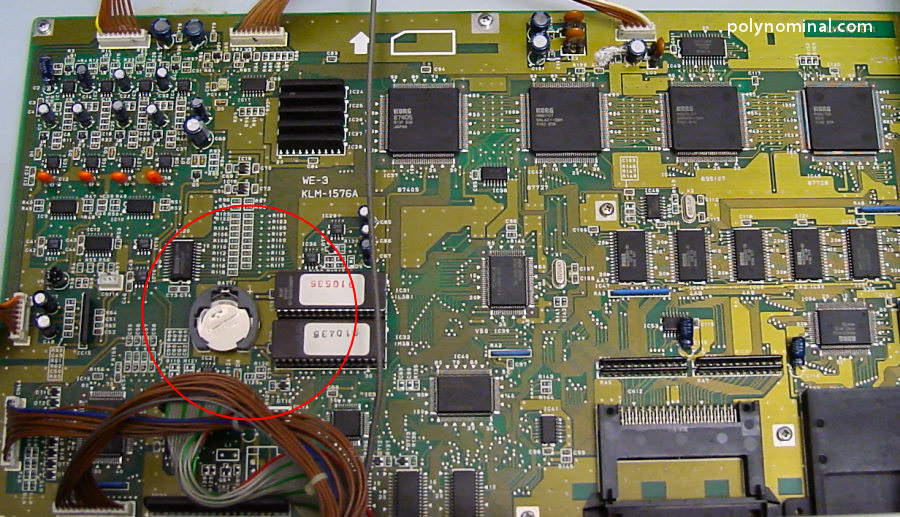

TECH: RAM works with a CR-2032 battery in a holder.

korg 01rw internal




fx 01 FAMILY RELATED MODELS :

01w family

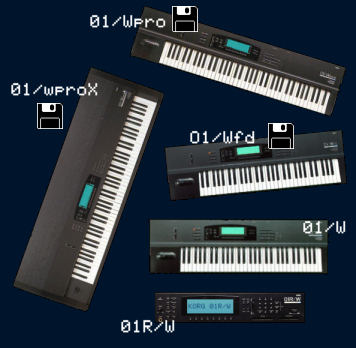

01 FAMILY ALL MODELS:

-01/W classic 61 key version


-01/W FD same as 01w with additional disk drive


-01/Wpro – 76 keys version with drive and an extra piano wavetable


-01/WproX – 88 versions weighted, drive and special piano wavetable. 10 Mb with some extra sampled piano and more drum PCM waveforms


korg 03rw

Korg 03rw budget spinoff, compact, tt misses all Waveshaper features.







effet VST PLUGIN / SAMPLED VERSION free and commercial samples set:

  name price demo
free sounds FREE soundfont FREE sample
pack
(needs register)
poly 800 plugin




demoAUDIO DEMO

demo Song: full 01 with overdub
demo Song: factory1
demo Song: factory2
demo Song: factory3
demo Song: factory4
demo Song: factory5
demo favourite: 01 choir
demo favourite: 01 deep
demo favourite: bells
demo favourite: string pad
demo favourite: LFO bright
demo piano: reverb
demo piano: pan
demo EP: tines dx
demo EP: wurlirhodes
demo Organ: brake
demo Organ: clickpercussion B3
demo Organ: baviera
demo Organ: old transistor
demo Vintage: old OBX
demo Vintage: Minimoog D
demo Bass : acoustic
demo Harp: delicate pan
demo Guitar: Ultima V ballad
demo Choir: aftertouch
demo Choir: a bit mellotron
demo Strings: synthetics
demo Strings: chords
demo Pad: tremolo
demo Pad: ambient
demo Pad: resonance
demo Pad: M1 Lore
demo Pad: vector
demo Pad: magic
demo Pad: panning
demo Pad: easy
demo Pad: progression
demo Pad: drama sweep
demo Pad: relax sweep
demo Synth: arpeggio bells
demo Synth: PPG
demo Synth: simple square
demo Synth: mistery
demo Synth: resonance test
demo Synth: digital 1
demo Synth: digital 2
demo Synth: another mistery
demo Synth: phaser fx
demo Drum: standard kit
demo Drum: tr808 kit
demo Drum: industrial kit
demo Drum: taiko
demo Drum: percussion
demo FX : com
demo FX: modulation
demo FX: random computer
demo FX: abyss
demo FX: looped
demo FX: drain pipe
demo FX: flangered
demo FX: movie bend
demo FX: waveshaper
demo FX: tigers
demo FX: space o trip
demo
demo
demo
demo
demo
demo
demo
demo



video VIDEO CLIP SELECTION

Korg 01 R W - 100% sounds demo Romancing
Korg 01 R W - 100% sounds demo Romancing

korg01rw hi res picture


manual
MANUAL



factory patch load
SERVICE MANUAL



factory patch load
FACTORY PATCHES



filter

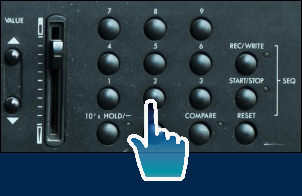

Korg 01rw factory reset procedure

switch on holding [COMPARE] [RESET] buttons



banner 01rw


brochure 3
edit original brochure



01RW for sale

01RW for sale

CHECK OUT EBAY OFFERS






banner 01rw











banner 01rw



banner 01rw

motherboard  eprom Korg KLM ram


manual

- m1 relative
- waveshaping

manual

- some PCM
-edit
- common hardware issues

comment

REVIEW: "A super M1 bread- n- butter stuff and some nice synths. It may be interesting for special waveshaper and digital pads."
