Kawai K4R







kawai k4r

info Country: Japan
Weight: 2,8 kg
Dimensions: 1020 x 310,8 x 88,5 mm
audio demo trend price : 150€
manual   factory sounds demo video comments

Kawai K4R
Digital Synthesizer Module (1989)



Rackmount module version of Kawai K4 synthesizer with cycled waveform wavetable and resonant filters.

kawai k4r logo
edit k4r

info RACKMOUNT the main panel features a 16 x 2 lines display, 32 buttons and a data slider.

Back panel terminal connectors:
- Midi Interface
- main signal out
- 6 assignable analog outputs.


ac Power supply PSU 12V at least 500 mA polarity negative center - original model is PS-121G.





edit TECH CPU 8-bits UPD 78310G manages 16 voices polyphony based on samples synthesis DMS tone generation. DAC is a Burr Brown PCM66P.

STRUCTURE a basic K4 patch is composed 1 or 2 PCM samples or "sources" that can routed to filter in 3 possible modes:
- normal
- twin
- double.

structure


edit RINGMODULATOR matched pair of oscilaltors sources can be ringmodulated by DIGITAL AM PROCESS in 2 different manners:
- source 1 modulates source 2
- source 3 modulates source 4.



structure
demo
Ring modulation HEAR.




edit
PCM WAVETABLE internal 16 bits ROM contains 256 DCO waves split into 2 categories:
- 96 PCM DC digital cyclic: mathematically precalculated fundamental and basic waveforms e.g sinusoidal, analog square, voice formants, organ additive and some short transients.
- 160 PCM acoustic samples categorized into 4 subgroups: drums, multi, block and reverse & loop.


lfo
Full PCM list HERE


filter PERFORMANCE system manages up to 8 parts all variable settings:
- split zone
- volume gain
- transpose semitones
- Midi channel
- velocity thresholds.

cpu

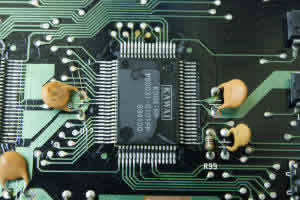

filter FILTER IC K008-FP handles 2 digital resonant filters featuring a -12 dB slope each.
Filters can be chained in serial or parallel mode and scream at high resonance value, which is way quantized into 7 scaled steps.



cuoff
Another useful function is the Key tracking mode at 50% cutoff value to lower or higher octaves.




adsr ENVELOPE
6 EGs:
- 1 EG FILTER 1: 3 segments + 1 time level
- 1 EG FILTER 2: 3 segments + 1 time level
- 1 EG (for each SOURCE) amplitude: a 3-segments + 2 time levels.

adsr
TIP: The sounds can be played following 8 different non-editable velocity curves.





lfo LFO
single delayed main modulator (shapes: triangle, saw, square and random) and 3 destinations:
- LFO to pitch
- LFO to filter 1
- LFO to filter 2.
A simplified second LFO acts as a vibrato sharing same LFO1 waverform.

LFO
demo random LFO exemple HEAR.




memory MEMORY:
- 64 RAM slots for patches
- 64 RAM performances
Sounds and setting may be saved to standard Midi sysex dump or recorded to Kawai RAM cards model DC-16 or DC-32

mode
- UPPER - magnify: Battery replacement: simple CR2032 in a holder, so soldering is involved






memory OS UPGRADE
Internal EPROM 27C512 64 kb (P207 for K4r / P206 for K4) latest should be 1.4.
DOWNLOAD BINARY (thanks to Alfred Semper).


eprom os K4r



family EDIT
there are many programmers for computer like
- Soundquest (commercial PC/MAC) PIC
- Sounddiver (out of business)
- K4 WIN (shareware old PC) PIC
- K4 patch editor (freeware old PC) PIC
- K4 editor (freeware ATARI ST) PIC
- Musicode K4 Voice Development System (? ATARI ST)
- K4 editor (shareware Commodore AMIGA) PIC
- K4/K4R Ipad editor (commercial IOS) PIC BELOW


ipad editor



family K4R RELATED FAMILY:

k4

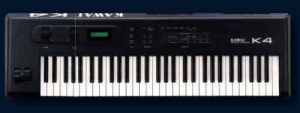

K4 61 keys keyboard version, same but it features an effect DSP, but lacks extra analog outs.

xd5 XD5 similar to K4r, but different wavetable. XD5 is aimed to percussions and drums sounds.




effet VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

virtual VST

VIRTUAL K4

DOWNLOAD

A kind of emulation based on samples.
However 2 major problems:
- It needs an old AWE32 soundcard for DCF filter emulation
- It does not seem to work from Windows XP to higher.
demo


demo AUDIO DEMO

demo favourite: indastria pad
demo favourite: resonance trick
demo favourite: on the run
demo favourite: choir
demo favourite: DC cycle
demo favourite: resonance pad
demo favourite: 8 bits NES
demo favourite: ambient bells
demo piano: yes lofi
demo piano: creepy
demo organ: sixty
demo organ: B3?
demo choir: mixed
demo choir: mixed 2
demo bass: performance
demo bass: quick arpeggio
demo bass: resonance 100%
demo bass: demo with korg ER1
demo Drum: the kit
demo Drum: morphing tr808
demo Drum: looping
demo pad: with LFO
demo pad: texture
demo pad: performance
demo pad: resonant
demo pad: eerie
demo synth: brass filtered
demo synth: quite clavinet
demo synth: early digital
demo synth: sid beret
demo synth: sequenced
demo synth: bellish
demo synth: ppg?
demo synth: commodore64
demo synth: bellish2
demo synth: LFO DCF
demo synth: tremoled
demo synth: roland tb303
demo synth: lounge chord
demo synth: k4r fake delay
demo synth: square pulse
demo
demo FX: LFO DCO
demo FX: chaos
demo FX: 4 bits aliased
demo FX: LFO galore
demo FX: harsh
demo FX: morse sine
demo FX: click pops
demo FX: fixed
demo FX : experimental
demo FX: harsher
demo BENDING! 1
demo BENDING! 2
demo BENDING! 3
demo BENDING! 4
demo BENDING! 5
demo BENDING! 6
demo BENDING! 7
demo BENDING! 8
demo BENDING! 9
demo BENDING! 10
demo BENDING! 11


video VIDEO SELECTION

DEMO Presets Synth Kawai K4r Kawai K4 - examples of sound Kawai K4r 16 bit Digital Synthesizer Module - High Quality Sound
Presets Synth one hour of sounds High Quality Sound

Company: Kawai
Model: K4R
Class: Module synthesizer
Dates: 1989
Price: 150€
Technology: DMS tone
Synthesis: PCM rompler
N.Wave: 256 PCM
Polyphony: 16 voices
Multitimbric: 8 parts
Filter: 2 X digital lowpass
LFO: 1 modulator
Envelope: 6 EGS
Effect: none
Memory: 64 RAM slots
CPU: 78310G
DAC: BB PCM66P
OS: latest 1.4
PSU: 12 VDC
Demo: 63



hires thumb



manual
MANUAL

manual
SERVICE MANUAL


manual
K4R FACTORY SET


manual
-FREE samples collection



logo

kawai k4 brochure
wavetable original brochure



16 bits digital synthesizer
wavetable original brochure


original scan
wavetable original advert



kawai k4 borchure
wavetable original brochure


Kawai K4 16bit DIGITAL SYNTHESIZER - High Quality Sound-
videoeffet k4 player!



logo

lfo
400 FREE PATCH SOUNDS
FOR k4/k4r



KAWAI K4R FOR SALE

KAWAI K4R FOR SALE
CHECK OUT EBAY OFFERS





logo

burr brown PCM 66p kawai IC Eprom IC OS
awardSPECIAL AWARDS:

solid

solid
CHEAP as HELL DIGITAL RETRO

comment

REVIEW"Compact version of classic K4 minus effects Good for 90' pads and noisy sounds"

manual manual
- resonant filters -sound edit
-cheap
-misses k4 fx
-good pad/sweeps - outdated samples
