Alesis Phlngr
Digital flanger

A pedal from the digital series MODFX. This phlngr (easy to pronounce) is a stereo digital flange effect with a elementary command interface.

PEDAL Main panel features 4 knobs and 6 buttons:

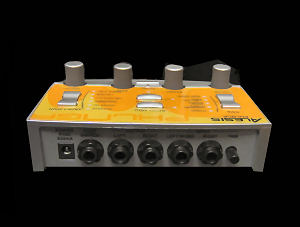

Terminal connectors:
- unbalanced stereo jack input
- unbalanced stereo jack output
- pedalswitch input for bypass (no true bypass)
- trimmer level input
- Alesis 9 pins modlink connector digitally chains various effects from the same series
(note: Modlink chain does not feed the power supply.)

Power supply the pedal does not work with battery only with AC-AC 9V external.

SOUND all digital DSP working at 48 kHz at 24 bits resolution.
The effects is outputs in 6 modes:
1- mono
2- stereo
3- sync left/ right direction
4- contrary in opposite direction
5- ASYNC is an asynchronous mode (direction L/R at random)
6- through Zero simulates original natural tape flanging effect modulations)



EDIT unit is pretty intuitive with a few commands:
- CENTER sets the center of the LFO cycle for the flanging direction.
- DEPTH determines the amount of flanging depth, from full WET to DRY.
- RATE is the flanging (LFO) frequency or sets by dedicated tapping or synched to other Modfx (no external clock)
- REGEN increase the effect presence feeding the output back to input.



MODULATION select switch changes the modulator behavior and the waveforms into 6 modes:
1- TRIANGLE traditional waveform for up and down cycle
2- HYPER TRI a kind of sawtooth waveforms modulator
3- TRIGGERED the pedal has an envelope follower that tracks the input volume to trigger the cycle
4- UNCERTAINLY alternates random waveforms
5- PATTERN generates a single loop of 16 steps random pattern, a looped sample and hold
6- RESET mode button retrigs the LFO from beginning or generates new patterns in PATTERN MODE



FAMILY RELATED:

	The modfx series is now out of production, there are 7 models available: - Philtre: a filter - Bitrman : bitreducer lowfidelity - Smashup: compressor with distortion - Metavox: a vocoder - Faze: a phaser - Ampliton: Tremolo and panner
	Later Alesis made 2 other units that features most of the modfx effects: INEKO and rackmount AKIRA with Midi controls

AUDIO DEMO

test with Roland Sh-09 demo1 with Kawai K5000S demo2 with Kawai K5000S
