Roland DEP-5






roland dep5

info Country: Japan
Weight: 5 Kg
Dimensions: 482 (w) x 47 (h) x 289 (d) mm
audio demo trend price : 100€
manual demo video comments

Roland DEP-5
Digital Effects Processor (1984)



Early digital multieffect rackmount unit includes: reverb, gate reverb, chorus, delay and equalizer with handy and intuitive tweak controls.

dep5 roland
display

info RACKMOUNT single rack unit.

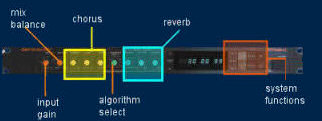

The main panel features fluorescent VDF display, 8 buttons, 9 knobs and a led-meter from -20 to +6 dB peak.

Back panel terminal connectors:
- Midi interface (limited to program change function)
- main signal stereo out
- input stereo signal, impedance switch between +4 / -20dB
- bypass pedalswitch input
- patch change pedalswitch input.





edit TECH main core I8097 16b its MPU at 12 mHz (at IC26) and DAC is a Burr-Brown PCM54HP.

DAC

Effect sound generation at 16 bits resolution and 32 kHz sampling frequency.

Fact: Roland Claims internal 28 bits processing.





edit SOUND unit DEP5 generates 4 effects categories combined into 11 algorithms flows ( algorithm table picture)


poy - chorus
poy - reverb
poy - reverb + modulation
poy - chorus effect on reverb
poy - chorus + reverb in parallel
poy - reverb+ chorus in series
poy - non-linear reverb
poy - non-linear reverb + modulation
poy - non-linear reverb + chorus
poy - chorus + delay
poy - non-linear reverb + modulation

DAC




edit REVERB
range time from 01.s to 99 s and 4 presets with adjustable early reflection, later reverberation and pre-delay time parameters: room, hall, plate and special (like "kitchen" - lol)

algorithm NON-LINEAR REVERB also known as GATED cuts the reflection at a certain gate time that can be set in a range from 1 to 999 ms.


demo linear then changed to non-linear mode





delayDELAY up to 2 seconds of recording with special stereo panning mode and phase invert.

delay demoHEAR panning delay




edit CHORUS
a single LFO frequency range from 0,3 to 10 Hz with variable depth from 0 to 50%.

chorus demo HEAR modulation on pad




reverb reflection EQUALIZER
plain 3 EQ bands:

roland dep5

- low: 100 Hz boost-cut from +12 dB to -12db
- high: 10 KHz +12 -12 dB
- parametric: from 300Hz to 12 KHz boost or cut +12 to -12 d
b.





edit MEMORY:
- 99 sound slots
- 29 ROM presets can be recalled anytime from system.
TIP: Patches can be saved only using Midi exclusives.

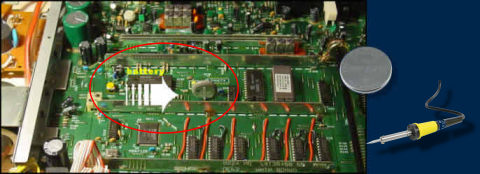

dep5 battery replacement BATTERY REPLACEMENT: RAM system contains a 3V battery lithium CR-2032 soldered to the mainboard.





effet
EDITOR there is quite no computer-based editors but one from Midiquest (commercial):

dep5 editor





edit RELATED FAMILY:

roland dep3 DEP-3 is a slimmed-down version which lacks both chorus and delay.





effet VST PLUGIN no official DEP-5 VST PLUGIN however some "non-linear" alternatives:

Valhalla VintageVerb

-Valhalla VintageVerb
Valhalla VintageVerb

-TC NONLIN2
TC electronics NONLIN2



demo AUDIO DEMO

demo linear then changed to non-linear mode
demo synth return
demo synth return 2
demo panning delay
demo modulation on pad
demo too much reverb

cloud soundWe would like to have more DEP-5 demos! want to send some? HERE for upload!


video VIDEO SELECTION

dep5 with guitar with korg monopoly + roland sh101
guitar demo with Korg Monopoly synthesizer with roland sh101








Company: Roland
Model: DEP-5
Class: Effect processor
Rackmount: 1 unit
Dates: 1984
Synthesis: sampling digital
Resolution: 16 bits
Sampling Freq: 32 kHz
Algorithms: 11 models
Delay time: 2 seconds
LFO: 0,3 to 10 Hz
Equalizer: 3 bands
Memory: 99 slots
Midi: IN / THRU
DAC: BB PCM54HP
CPU: I8097
Demo: 4


algorithm
MANUAL

manual
SERVICE MANUAL



manual
-MORE DEMO



advert
effet original brochure



brochure dep5
effet original advertising



advert scan magazine
effet original advertising



signal path
delay
Signal path



ROLAND DEP-5 FOR SALE

ROLAND DEP-5 FOR SALECHECK OUT EBAY OFFERS













parametric EQ effect parameter rackmount
awardSPECIAL AWARDS:

solid
cheap as hell

solid
real-time tweaks



comment
SMART BUY

REVIEW "Dep-5 may be considered technically obsolete with typical metallic reverb, but it is still a creative unit: good for weird infinite echo and chorus. Tweaking real-time pots are nice for sure, but pay attention to frequent digital clicks and pops"

manual manual
-realtime controls - limited band
-creative sound combo
- metallic sound
-now cheap -obsolete
