Emu Drumulator (1983)
MODEL #7000



The Drumulator was the first sample-based affordable drum machine based after the Linn Drum and Oberheim DMX public success.



Vintage PCM 8 bits sounds on EPROM with sequencer with a design very close to legendary sampler EMULATOR II.

drum pad
emu

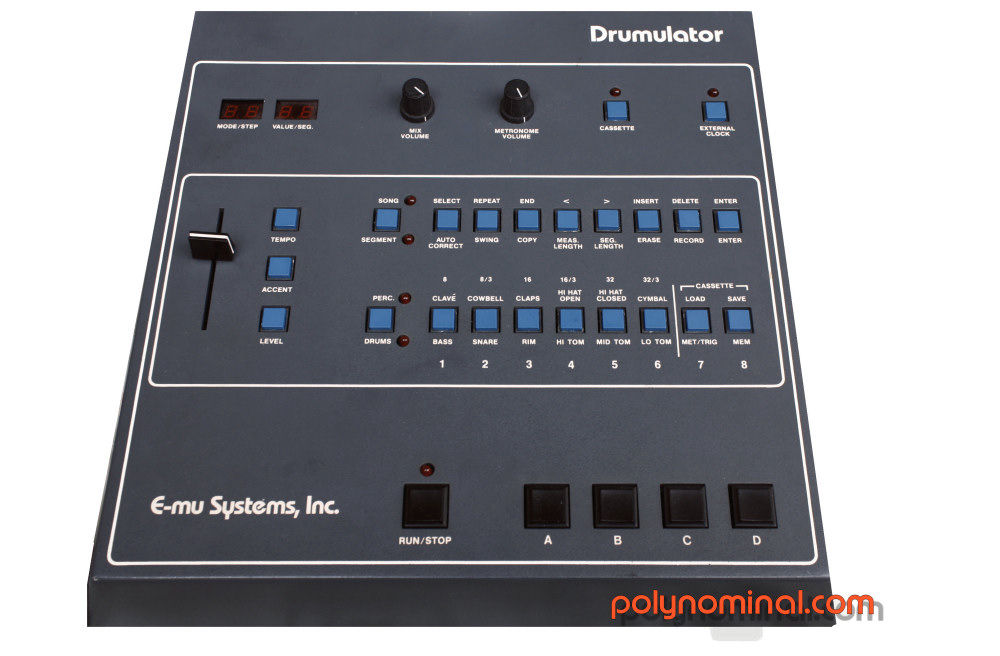

info DRUM MACHINE main panel features a basic segment display, 4 drum pads, 2 knobs, a slider potentiometer and 25 push buttons.

Rear panel terminal connectors:
- 8 RCA CINCHseparate out
- metronome out
- main mix out (jack)
- 4 gate inputs for pads
- tape interface input
- tape interface output
- pedalswitch input for start/stop
- pedalswitch input for repeat function.








edit VOICE classic 8 bits Z80 ZILOG CPU manages 8 channels polyphony, each channel features a assigned samples out of 12 PCM available. The internal sample cannot be much altered but 15 quantized volume levels.

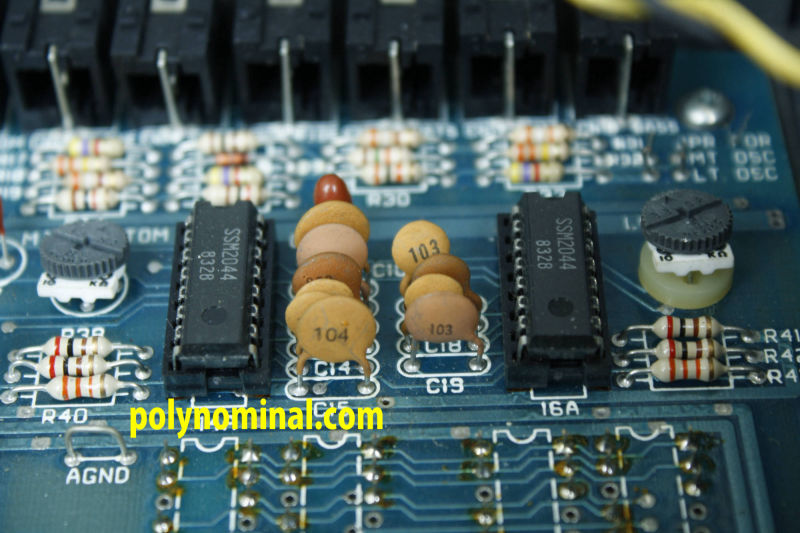

TECH: TOM channels are filtered by 2 famous chip SSM2044 (static) PIC



cpu


editWAVETABLE the drumulator contains 12 PCM waveforms coded at 8 bits resolution stored on 4 A-B-C-D socket EPROMS (Erasable Programmable Read Only Memories) for a mere total of 64 kb.
Internal factory sounds are: bassdrum, snare, tom (x3) clave, cowbell, claps, hihat open/closed and ride cymbal.
TECH: It is possible to change the soundset by swapping the 4 EPROMS + 1 needed OS EPROM with sample offset values - last one should be 3.0 with Midi instructions. We have 2 alternative set we recorded right into the DEMO SECTION


eproms

click for bigger pic




edit INTERFACE a lot of combo keys: some functions are not so intuitive and need a first good read to the owner's manual. Yes reading manuals seems "vintage" now ;)

drumulator tech




edit SEQUENCER
the patterns (segments) are recorded in real-time mode with a variable auto-correct precision quantizer: 8/.8/16/16./32/32 (triplet). Up to to 4 tracks can be recorded at the same time with free signature and variable groove-swing processor. In order to simplify this task, the sequencer features a smart programmable audio-metronome with various time dividers.


sequencer



edit EDITOR and PAD the original EMUARCHIVE (now offline) mentioned a special APPLE II GRC - Graphic Rhythm Composer - hooked to RS232 port. I never had a clue about this one after decades of searching. Also a simple PAD programmer with same design with 4 trigger out.



Graphic Rhythm Composer





editREPAIR - MODIFICATION the Drumulator is a pretty reliable Z80 machine: classic push buttons may need to be replaced and sliders too are the main issues.
Classic and easy modification is the MIDI interface which need new OS 3.0 EPROM and a little DIY board, schematics can be found on the net.
TIP: to access Midi control on new OS, push [RUN STOP] + [EXTERNAL CLOCK]



drumulator midi mod

OS3 bin
os3 binaries 8kb





edit MEMORY
:
- 36 patterns (segments) up to 99 measures
- 8 songs.
Data can be saved only to modern magnetic tape out.
BATTERY REPLACEMENT: BR 2/3A soldered to mainboard (pic below)

drumulator battery replacement
main board with DIY Midi modification





edit RELATED FAMILY:

drumulator 2

EMU SP12 famous pad sampler, originally the project was DRUMULATOR II.





demo AUDIO DEMO

demo rhythm pattern
demo rhythm pattern
demo alternative EPROM SET 1
demo alternative EPROM SET 2



video VIDEO CLIP SELECTION

video1 video2 video3
Demo with DX7 recording demo EPROM switch





drumulator motherboard
"never a beat off"















drumulator big picture



manual
MANUAL



manual
SERVICE MANUAL



sequencer
Download FREE
DRUMULATOR
SAMPLES



DRUMULATOR FACTORY RESET

press [SEGMENT] hold [ERASE] press [CASS] then POOF appears :)

drum pad



drumulator

original scan

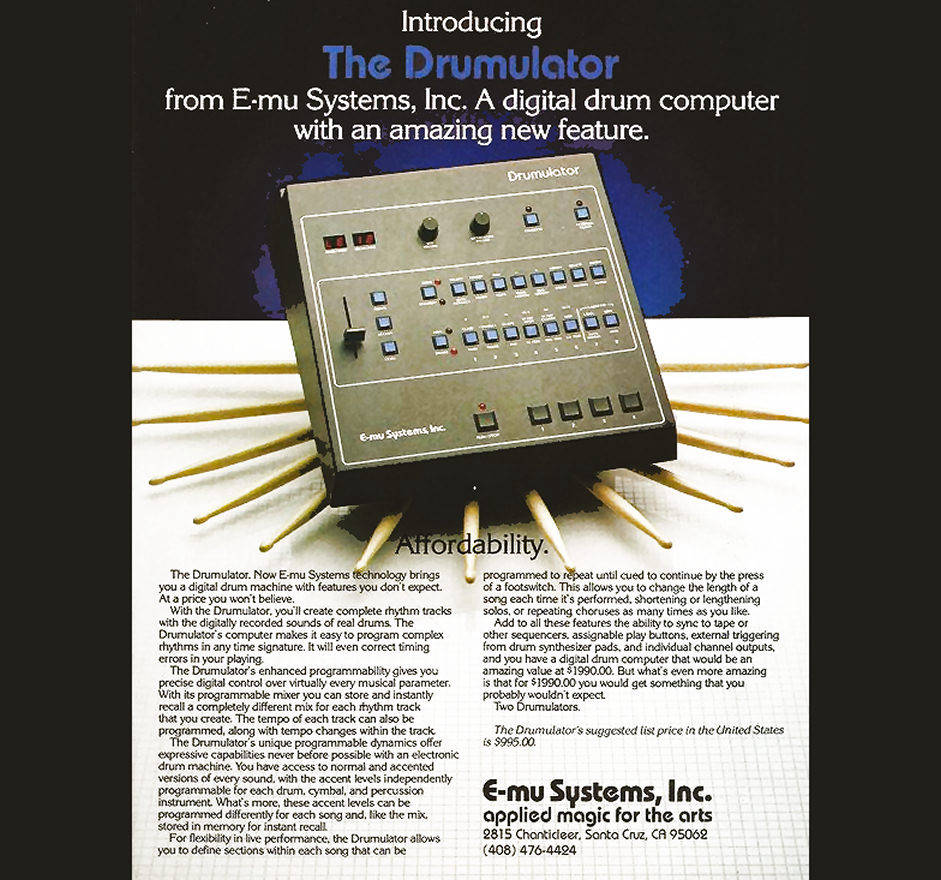

editoriginal brochure



original scan
editoriginal brochure



original scan
editoriginal brochure



original scan
editoriginal brochure





EMU Drumulator FOR SALE
EMU DrumulatorFOR SALE
CHECK OUT EBAY OFFERS






chip midi circuit
