Crumar DP-50







Crumar DP-50

info Country: Italy
Weight: n/a
Dimensions: n/a
audio demo trend price : 200€
  demo video comments

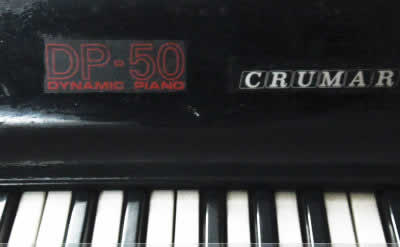

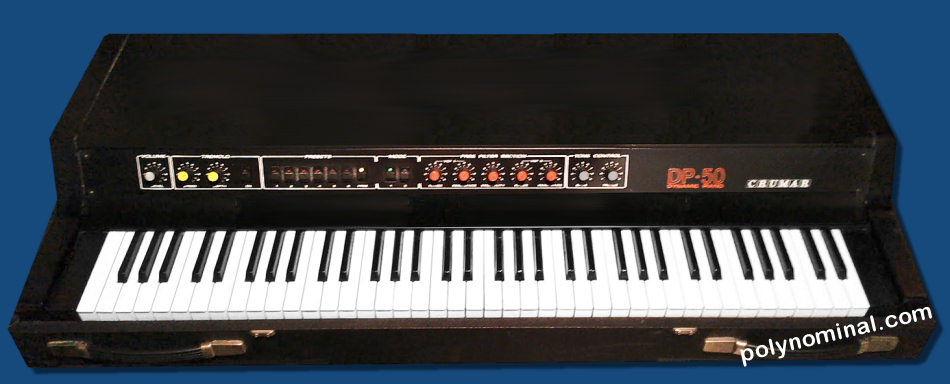

Crumar DP-50 (1981)
Dynamic Piano



Analog piano keyboard based on presets with filter section.

Thanks to Nico for info, pictures and demo sounds.

logo
drum pad

info KEYBOARD 73 weighted keys with adjustable pressure dynamic.

Rear panel terminal connectors:

- main signal out
- pedal input for sustain
- master tune trimmer
- keyboard touch sensibility knob.

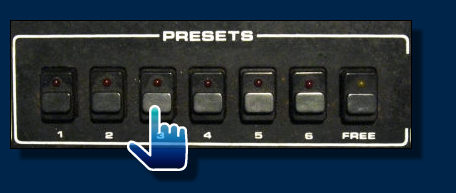

edit VOICE the DP-50 is an analog piano based on 6 presets: 2 banks of 6 sounds with filter variations.

preset

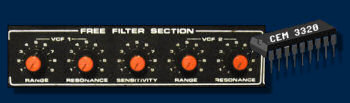

edit FILTER the multimode "FREE FILTER SECTION" is a low pass + high pass filter with variable sensivity based on famous CEM 3320:

filter

- VCF 1 :range + resonance

- VCF 2 :range + resonance

demo hear VCF LP

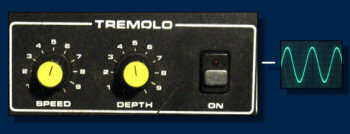

edit EFFECT a simple internal tremolo LFO with variable frequency and depth, in addition a 2 bands-EQ "Tone Control" Bass + Treble.

tremolo

demo hear tremolo

TECH: previous DP30 seems to have chorus onboard.



edit RELATED FAMILY:

akai xe8

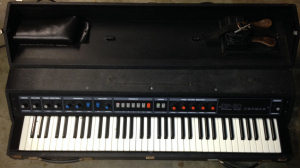

DP-80 flagship version

video
circuit bent

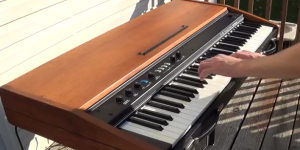

DP-30 first version, 4 preset and VCF.

video



demo AUDIO DEMO

demo preset + low pass
demo preset + low pass + tremolo
demo preset + high pass
demo preset + high pass + tremolo




video VIDEO SELECTION

video 1
Dp50 with roland alpha juno and boss SX700

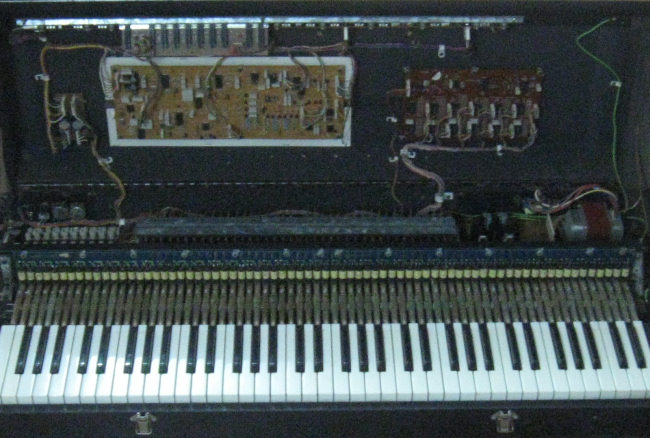

dp50 internal



Company: Crumar
Model: DP-50
Class: analog piano
Keyboard: 73 keys
Dates: 1981
Sounds: 12 presets
Synthesis: analog
Filter: LPF / HPF
LFO: 1 modulator
Demo: 4



edit
- User manual
- Schematics / service manual
- Free samples
- Demos





scan
editadvert scan



Crumar DP-50 FOR SALE
Crumar DP-50 FOR SALE
CHECK OUT EBAY OFFERS







drum pad circuit rsf kobol
awardSPECIAL AWARDS:
solid solid
Vintage oddity preset machine


comment


NO REVIEW

Pictures, sounds and info have been provided by contribution, we did not tried this machine.

manual manual
-warm - weight
-filter edit
- no Midi
- cheap - limited preset
