Casio PT-1







casio pt1



info Country: Japan
Weight: n/a
Dimensions: n/a
audio demo trend price : 50€
demo video samples comments

Casio PT-1 (198x)



Cult toy derived from famous VL-1 with less functions, no display but even more portable.

logo
sound select

info KEYBOARD toy keyboard with 31 mini-mini-tiny keys.
The main panel features:
- 10 buttons
- 3 switches
- 1 trimmer for master tuning
- 1.5mm jack out for headphones.



ac Power supply external PSU 6V with negative in center or 4x 1.5V batteries.

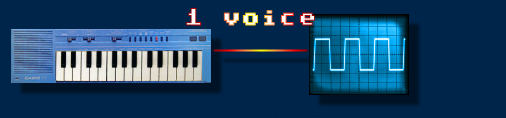

edit VOICE main CPU NEC D1867G manages 1 monophonic sound which generation is based on a generated pulse waves with different widths and octaves.

data
Just select the sound between piano, fantasy, violin and flute.





edit RHYTHM
section features 3 percussive sounds, 2 pitched tom-kick like and 1 snare.

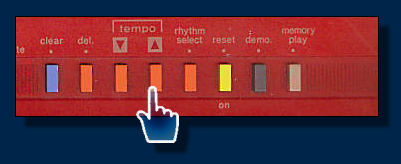

Included 10 rhythm patterns: march. watz, 3/4 beats, swing, rock (x2), bossanova, asmba, rhumba and beguin.


pattern
demo HEAR the rhythm patterns







edit SEQUENCER

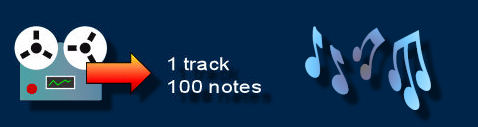

up to 1 track and 100 notes.
Switch to RECORD mode and play your note and PLAY for PLAYBLACK, the special ONE KEY PLAY replays note step by step which is pretty nice to speed up or sequence something.


pt1 sequencer

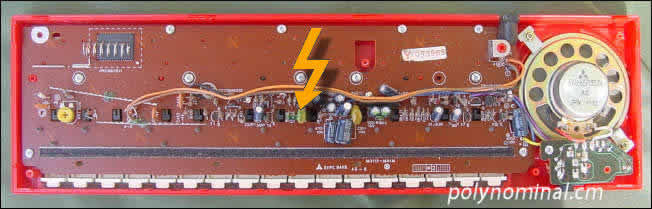

edit MODIFICATION like many toys, there are many circuit bents for weird noises experiments.
Click below for a bending exemple video:


casio pt1 circuit bending






edit RELATED FAMILY:

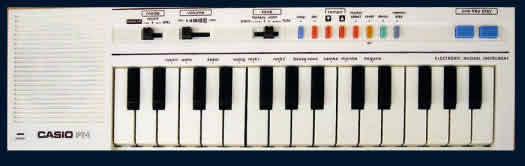

pt1 white The Pt1 exists also in white color, which is usually more common on the market.

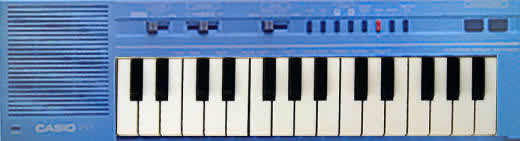

pt1 blues ... also in blue color, as collectable as red version!





demoVST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

  name price demo
edit

PT1 drum sample set

dowload free sample

FREE

N/A
edit CASIO VL1 Emulator Vst version of VL1 which is really close video



demo AUDIO DEMO

demo PT1 sound mix (all PT1 sounds)
demo factory demo
demo all rhythm patterns
demo SHARE : have some nice PT1 demos you made? UPLOAD!





videoVIDEO SELECTION

Casio PT-1 Keyboard Organo Casio PT-1 CIRCUIT BENT CASIO PT 1
presentation Organo CIRCUIT BENT



boxed








Company: Casio
Model: PT-1
Class: Toy keyboard
Dates: 198x
Price: 50€
Synthesis: analog
Polyphony: 1
Sounds: 4
Sequencer: 100 notes
Demo: 3




edit


- USER MANUAL
- SERVICE /SCHEMATICS



casio pt1



original scan
lfo original Brochure




dadada
lfo
DADADA rhythm



casio pt1


Casio PT-1 FOR SALE

Casio PT-1 FOR SALE
CHECK OUT EBAY OFFERS



battery electronic musical instrument one key play
awardSPECIAL AWARD:
solid
TOY CULT ACHIEVEMENT



comment


REVIEW "Total coolness, not to be taken too seriously of course!"

manual manual
-Casio toy - no sound edit
-portable
-slimmed down VL tone
-rhythm
