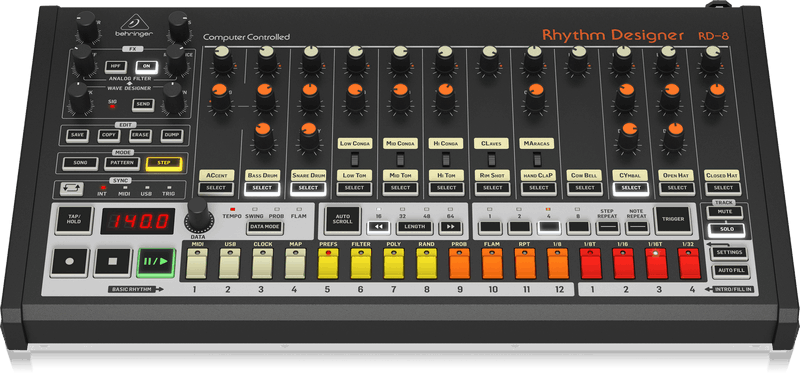

Behringer RD-8

Analogue Drum Machine (2019)

Behringer RD8

Overview

Overview Behringer attempts to clone the iconic Roland Tr-808 for a very affordable price, keeping same aspects but a total redesign from original, unique, circuit with matched transistor. The aspect is quite similar with 16 steps, but a numeric display and reverse step colour for copyright reason, but you can switch them to Tr808 gradiant. Also some new features, a bit normal after 40 years of technology!

Synthesis Smd technology for 16 analog sounds recreation, adding also a dual filter mode - 12 dB filter button  with LPF / HPF modes with classic cutoff and resonance parameters for live tweaking (movement can be recorded). Also the new "Wave Designer" has individual attack and sustain controls that can be applied to individual voices which keeps orginal japanese machine sound parameters


Behringer RD8

Sequencer

Features  16 songs and 256 patterns with 64-step drum sequencer features poly-meter, step-repeat, note-repeat, real-time triggering, track-mute and track-solo. Also some more neat features for live performance: Swing, Step Probability, drum Flam and Random step.

Sync 2 external clock are accepted to slave the machine: USB and standard MIDI

behringer RD8

RD-8 Technical Data

  • 16 Drum sounds
  • 64-Step sequencer with poly-meter, step repeat, note repeat, real-time triggering, track mute and track solo
  • Wave Designer
  • Dual Mode Filter
  • Stores up to 16 songs and 256 patterns
  • Auto scroll function
  • LED display
  • Connector for external power supply
  • Dimensions (H x W x D): 77 x 498 x 265 mm
  • Weight: 3 kg

Connectors:

  • 1 Line output: 6.3 mm jack
  • 16 Individual line outputs (Voice): 6.3 mm jack
  • 3 Trigger outputs: 6.3 mm jack
  • Main Return: 6.3 mm jack
  • Headphone output: 6.3 mm jack
  • Clock input and output: 3.5 mm mini jack
  • USB
  • MIDI in/out/thru
behringer
