Akai XR-10







akai xr10

info Country: Japan
Weight: 1,7 Kg
Dimensions: 350 (w) x 241 (h) x 68 (d) mm
audio demo price trend: 100€
manual demo samples comments

Akai XR-10
16 bits PCM DRUM MACHINE (1990)



Budget digital drum machine based on 16-bits samples with sequencer, preset rhythm patterns and trigger pads.

main
drum machine

info DRUM MACHINE 16 x 2 lines display (no backlight) , 2 knobs, 29 buttons and 15 trigger pads (no velocity) assignable to any Midi notes.

Back panel terminals connectors:
- main signal out
- Midi interface
- headphones
- 2 pedalswitch inputs for start-stop and FILL IN functions.

ac Power supply external PSU 12V / 200 mA -)+ polarity.





edit TECH
the XR10 is a digital drum machine based on a 8-bits CPU NEC D78C10G part of Z80 Zilog processor which handles up to 8 voices polyphony.

16 bits The sound is generated by internal PCM samples stored in an internal ROM wavetable, each PCM samples can be also backward, pitch-tuned at 2 octaves range and finally located in the stereo L/R panning position.



edit
WAVETABLE the XR ROM contains 64 PCM samples recorded at 16 bits resolution.
Most of the samples are old school big drums, acoustic gated toms but also electro percussions in a perfect Kraftwerk-like style.

xr10 pcm SOUND LIST: bass drums (x10), snares (x10), rimshots (x2), hihats (x3), toms (x12), crash (x2), ride cymbal (x2), claps, finger snap, conga (x4), vibraslap, guiros (x2), cabasa, tambourine, triangle (x2), cowbell, claves, timbales (x2), agogo (x2) , slap bass and a FX ochestral hit.
demo Hear all internal sounds




edit
INTERFACE all edit with single parameter with limited display:

akai xr10 tech

One of most irritating function of the machine is the MEMORY PROTECT which is always turns back to ON when switching off the drum machine - no to mention the lack of backlit display.


edit "So, you know what happens when they cut corners"









edit
ENVELOPE each assigned sample have 1 single EG that features:

decay2 - 1 segment DECAY

- 1 time SUSTAIN (31 levels each)




edit
LFO section offers a single modulator SWEEP for the pitch:

LFO

the XR10 modulator LFO Parameters:

- frequency rate

- depth modulation

- polarity inversion




edit
SEQUENCER The maximum global resolution is fixed to 1/96 and offers 8 different level of quantisation (or humanize) from 1/4 to 1/48 plus a classic array of traditional edit functions like copy, insert or repeats. Created sequences and songs can be data dumped to Midi exclusives protocol.
A basic pattern is programmed with 4 sub-levels (FILL-INS, INTRO, ENDING and BREAKS) that can be played back with dedicated function buttons.

recording xr10 Note entries system works in 2 different modes:
A- realtime at 96 ppqn resolution
B- simple step entries.

demo Hear electro sequence





edit
MIDI sound kits can be triggered using Midi interface, however implementation is rather basic and offers only control on velocity sytem.

sync SYNC internal tempo range 40-296 BPM or XR can be slaved to external Midi clock, altough some sync issues have been reported (maybe depends on the OS?).

demo Hear synched synth




edit MEMORY:

akai xr10 mainboard

- 300 notes per pattern
- 20 songs
- 450 presets patterns
- 50 styles with: 3 variations, 3 fill-ins + break +1 intro + 1 ending.

LEFT - Memory battery replacement, a standard soldered Cr2032 3V - Click to enlarge -




edit MAINTENANCE quite reliable but pads trouble: graphite contact just goes dying after many pressures and years-

pad fix repair

PAD REPAIR: Cleaning with alcohol or various stuff will do nothing and can worsen situation for sure, best solution is electro conductive solution - Click to enlarge PIC -





edit RELATED FAMILY:

akai xe8

XE-8 Rackmount percussion expander is similar but with a different soundset

video
circuit bent

XR-10 circuit bent: like many cheap romplers, the XR is frequently modded with circuit bending process on the ROM wavetable - usually recommanded for people who enjoy glitch and weird digital noises

video



edit GALLERY:

xr10 warning m3r artwork
m3r artwork
XR10 warning lol artwork 1 artwork 1




Company: Akai
Model: XR-10
Class: Drum Machine
Pads: 15 non-dynamic
Display: 16 x 2 lines
Dates: 1990
Synthesis: PCM rompler
N. Samples: 64 PCM
Sample Resolution: 16 bits
Polyphony: 8 voices
Sequencer: 20 songs
Rec resolution: 96 ppqn
SYNC: Midi
Envelope: 1 EG
LFO: 1 modulator
Memory: 50 styles
CPU: NEC D78C Z80
OS: latest V2.2
PSU: 12 VDC


demoDEMO:

demo super MIX : XR10 + Moog Little Phatty bass
demo demo with Sequential circuits Pro1
demo raw electro pattern
demo raw pattern drum
demo raw retro pattern

demohave some XR10
demo?
upload!



manual



manual



edit

OS is burnt on EPROM, test version is 2.2
RESET/ FACTORY PROCEDURE Switch on pressing [1] + [2] button. Select.




edit

XR10 *Free* SAMPLES
DOWNLOAD

fre samples





edit Sample SHOP
edit Report Error
edit DONATE



manual
SERVICE MANUAL / SCHEMATICS






XR10 FOR SALE

Akai xr10 for sale
CHECK OUT EBAY OFFERS







motherboard logo circuit
awardSPECIAL AWARDS:

solid
solid
OLDSCHOOL Nervous edit

comment

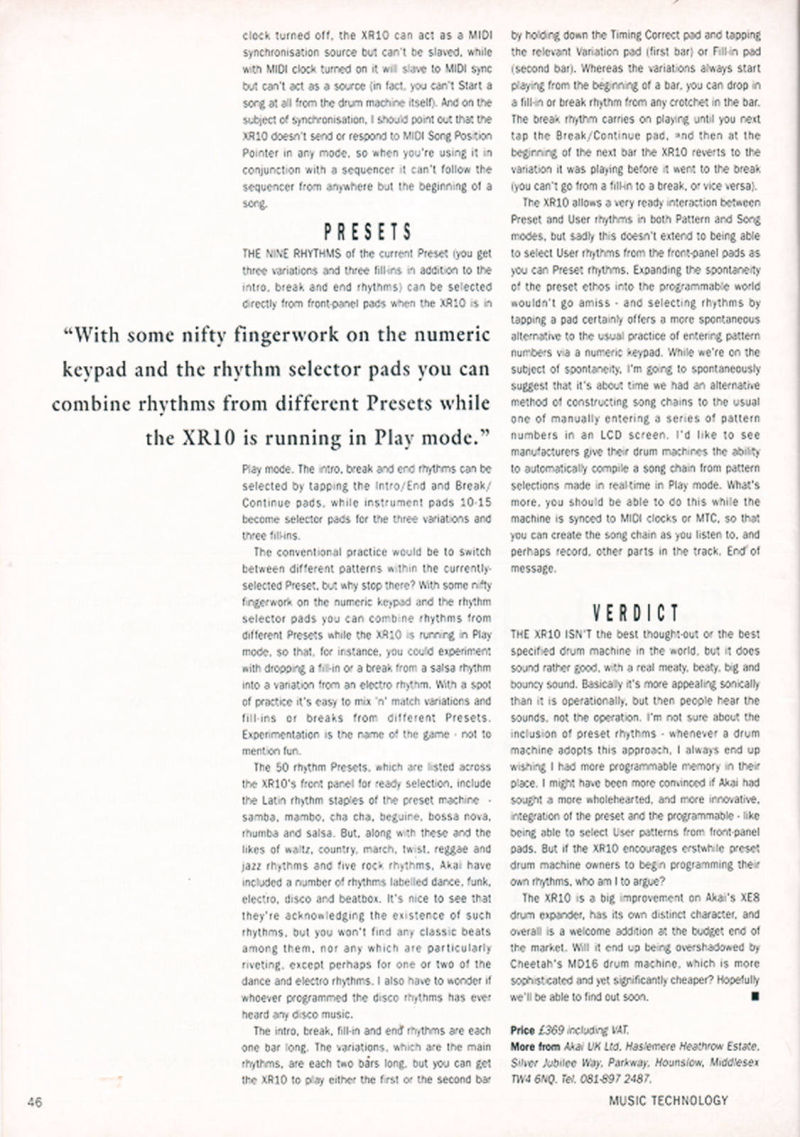

REVIEW "I do personally love that electro EBM industrial sounds character with not-so-common samples onboard. Give it a try"

manual manual
- some great samples - cheap built
- old school
