Yamaha QX5







Yamaha QX5

info Country: Japan
Weight: 2,9 Kg
Dimensions: 350 x 240 x 49 mm
audio demo trend price : 70€
  demo comments

Yamaha QX5
Digital recorder (1986)



Budget 8-channels Midi sequencer with some recording option, but no sound like Canvas generation. Same weird design as TX-7 synth module

Also exists a version with internal disk drive model QX-5FD

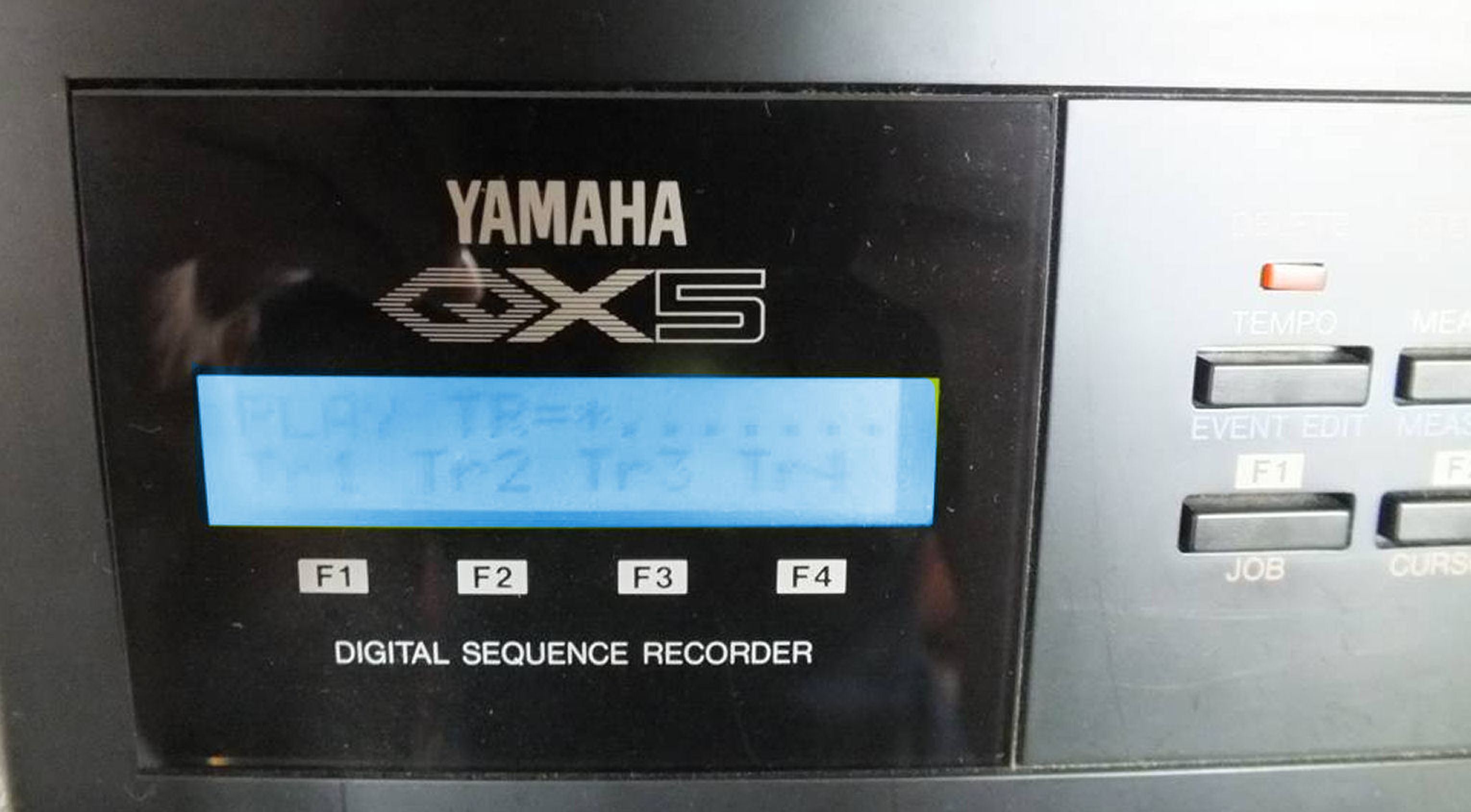

qx5 display
sequencer

info Seqencer pretty simple interface with 16x2 LCD display. Front Panel Switches: Tempo , Measure , Track , Clock , Auto Locate, F1 (Job), F2, F3 F4 , Shift, Record, Stop/Continue and start

Back panel terminal connectors:
- Midi IN
- Midi Out
- Midi Thru
- Tape I/O
- Click out





edit
SEQUENCER The QX5 can record MIDI data in 3 ways:


record
- Notes are recorded in the timing that you play them.

- The same as realtime recording, but you can set the point at which recording will begin and end

- You can use a MIDI keyboard to enter notes and specify their timing and gate time using the QX5 panel switches.




editTRACKS RECORDING

Up to 8 tracks of MIDI data can be stored, edited, saved and loaded independently. Recording is always done on track 1. When you have finished recording a track, you can exchange track 1 with an empty track (2-8) and record again.

Channel information is recorded, and each track can contain independent MIDI data of up to 16 channels. Tracks can be joined, mixed, cut, deleted, exchanged, etc.

8 tracks
edit "Each track can be turned on or off for playback."




edit

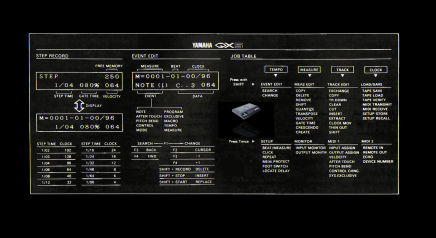

EDIT classic edit function like copy, paste, transpose, punch in, tempo change, quantisize. Also less common like sysex recording.


edit
"click to enlarge pic"




edit SYNC the sequencer can be slave-synched to

clock

- MIDI CLOCK


- FSK24 (tape frequency shift keying)




editMemory

memory

- sequencer can record up to 20000 notes (simple note on/off) less if velocity is sent

- internal memory can be save to midi or tape dump








edit RELATED FAMILY:

qx1 QX1, QX3, QX5, QX21, QX7



qx1


Company: Yamaha
Model: QX5
Class: Sequencer
Dates: 1986
Display: 16 x2 LCD
Synthesis: none
Tracks: 8
Sync: Midi / FSK
Midi: IN / OUT / THRU
Storage: tape dump
Memory: 20,000 notes



demoDEMO:

demo simple sequencer QX5

demohave some QX5
demo?
upload!


manual


manual
-SERVICE MANUAL / SCHEMATICS
-OS EPROM DUMP

edit Sample SHOP
edit Report Error
edit SUPPORT US




YAMAHA Qx5 FOR SALE

qx5 for sale
CHECK OUT EBAY OFFERS







yamaha yamaha yamaha
awardSPECIAL AWARDS:
solid
cheap

solid
ugly interface


comment

REVIEW " for young masochists :) well it has a LOT of function and need some times to be appreciated: no cv, no shiny pots, nothing too sexy"

manual manual
-cheap - limited
- powerful
- interface
  -storage

"Thank you for purchasing the QX5 Digital Sequence Recorder. The OX5 is an 8 track
MIDI sequencer with extensive editing functions and superb flexibility, yet easy to learn
and simple to use. In order to understand the QX5 and take full advantage of its capabilities,
please read through this manual and try out the examples"
