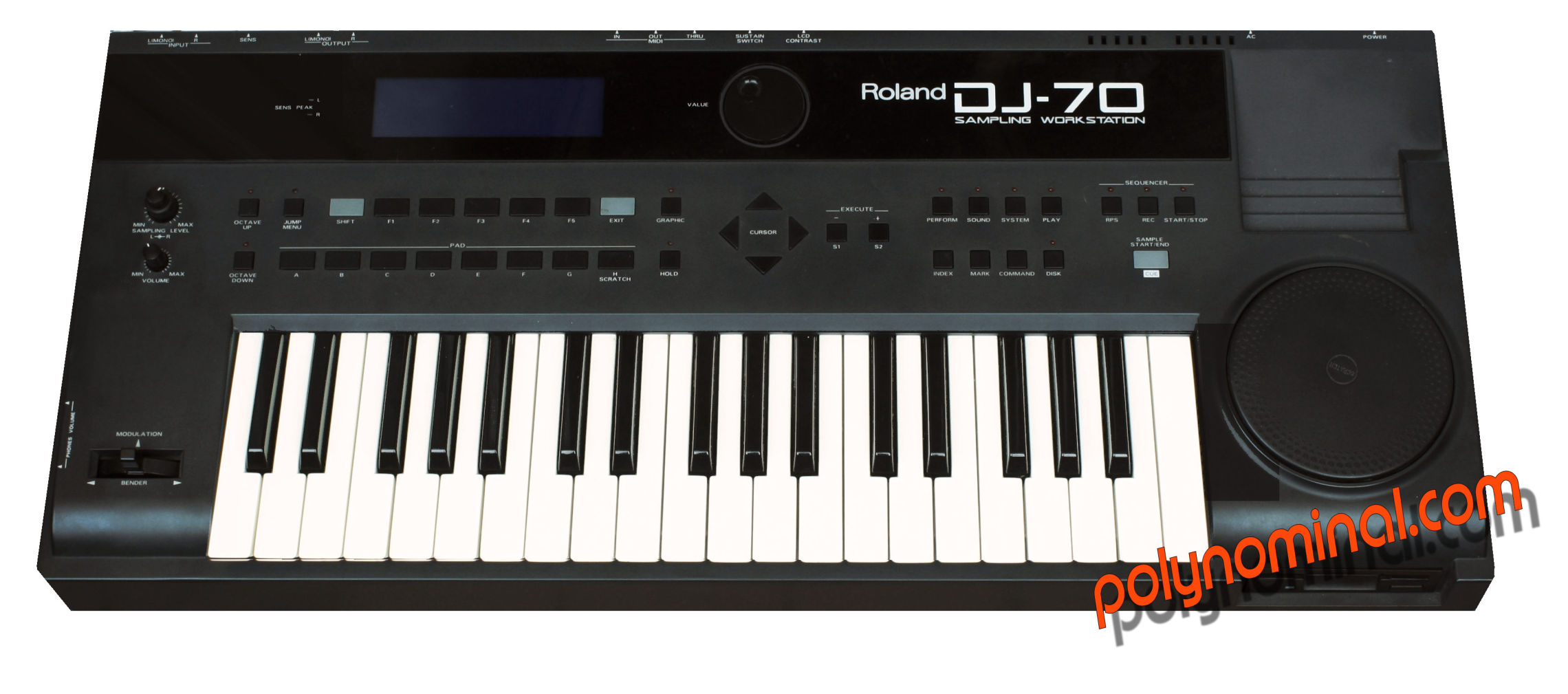

Roland DJ-70







Roland DJ-70

info Country: Japan
Weight: 8,6 kg
Dimensions: 780 (w) x 330 (h) x 126 (d) mm
audio demo trend price : 150 €
manual demo comments

Roland DJ-70 (1992)
Sampling Workstation



A now totally forgotten sampler produced during the nineties by Roland Italy, launched as the "DJ" version of famous and professional module S-770/S-750.

The DJ-70 now deserves a proper description on the net. The DJ70 is a quite complex machine with a LOT of advanced synthesis functions, sadly hidden in a not-so-obvious edit interface.

drum pad
drum pad

info KEYBOARD SAMPLER 37 dynamic keys.
Main panel features a 64 x 240 pixels backlit display, 42 push buttons, a data encoder, 2 knobs, a pitchbender joystick and a special scratchpad that should emulate a vinyl scratching.

Rear panel terminal connectors:
- main signal out
- stereo input with gain trimmer (+ 4 dBm ~ 50 dBm)
- Midi interface
- display contrast trimmer
- pedalswitch sustain input

Side panel terminal connetors:
- Cue headphones preview with individual gain






editTECH main core based on a 16-bits CPU INTEL 80C196 manages 24 voices polyphony.
Stereo sampling engine is based on MB87422 + MB87423A chips (same found on flagship S-770) works at 16 bits resolution.

sample DAC is a Burr-Brown PCM54HP and ADC Asahi Kasei 9201A with 2 fixed standard recording frequencies:
- 22,05 Hz
- 44,1 kHz

demo HEAR resample 44 -> 15 kHz




editSAMPLE EDIT
a single DJ70 sample can be modified with various edit functions:

sample - loop (forward, backward, ping pong mode)
- pitch tuning
- smooth (crossfade)
- volume gain (normalize)
- cut, paste, truncate, trim, split
- resample to: 44,1 / 30 / 24 / 22,05 / 15 kHz frequencies
- time stretch from 25 to 400% ratio




edit SAMPLE IMPORT
it is possible to Midi sample dump or load-import other Roland format e.g. S770, S750, W30, S550, S50 using a dedicated tool into utility section.

DJ70 structure



NOTE: sample import does NOT work very well, buggy and sluggish. It may take a while, mainly to process-data such as conversions from 12 to 16 bits.






edit SAMPLE STRUCTURE the hierarchy is basically the following structure:
samples-> partial-> patch-> performance.

Dj70 edit functions - LEFT -A Dj70 partial is composed by up to 4 samples (each with own level, tuning, panning) then partial are assigned to keyboard zone (from 1 to 88) in a patch. Finally up to 31 patches can be assigned to a performance with an assigned channel.




edit
INTERFACE many submenus, interface is not intuitive but after awhile you get the idea :=)

dj70-tech



edit
FILTER multimode resonant filter + keyfollow option

TVF filter

Filter Modes:
- lowpass
- highpass
- bandpass
demo HEAR Lowpass


edit ENVELOPE 2 EGs:

ENVELOPE TVA - EG1 TVF: 4 segments + 4 times
- EG2 TVA: 4 segments + 4 times.

EG TVA features some typical envelope presets to go e.g. piano, organ, brass, percussion, strings ...


edit LFO each partial features a single syncable delayed modulator (shapes: sine triangle, sawtooth up, sawtooth down, square, random, bend up, bend down).

LFO

Modulation destinations are:
A- LFO to amplitude
B- LFO to filter cutoff
C- LFO to sample pitch.

demo HEAR LFO shapes





edit
RESAMPLING 2 samples can be combined in 6 algorithms or structures same found on synthesizer module JD-990. These are pre-fixed audio patches that connect 2 samples into variable setups mixed with 3 audio elements: amplifier (TVA), filter (TVF) and ringmodulation (R).

algorithm

LEFT Click for algorithm list

demo HEAR third algorithm test XP




edit SEQUENCER the RPS sequencer (Realtime Phrase Sequencer) features 8 tracks.
The RPS is like a litte notepad for idea on the fly, since it does not contains edit functions like sync, quantisizer nor even a metronome.

LFO





edit
MEMORY:
- 512 samples
- 255 partials
- 64 performances
- sampling 2 Mbytes factory expandable to 4 Mb using standard 30 pins SIMMS (1 mega each).

Dj70 memory


-LEFT Click for bigger pic
-

TIP: Special MEMORY WALL setting allows to split memory for LOAD-WHILE-PLAYING option.



mrmory STORAGE
floppy disk drive format 3.5 DD/HD 1440 /720 Kb capacity with auto-boot.
Floppies formatted in ROLAND proprietary file system: DJ-70 is not Ms-DOS compatible.





mrmory RELATED FAMILY
:

xp50
DJ70 II Mk2 upgraded version with SCSI port, new sequencer sync mode for samples (BPM) , memory upgradable up to to 32 mb with 2 X 72 pins simms.
Roland s770

S-770 the famous and very well-sounding S770. Model 750 is the same without board extras, W30, S50 and S550 are previous and more affordable sampler modules VIDEO



effet ROLAND DJ70 libraries for sale----- OUT OF STOCK!!!

drums

OUT OF STOCK!!!

editBuy our 10 disks "EPIC DJ70 - drum machine collection"
Each 1,44 mb disk contains full samples of a classic drum machine, already mapped sounds, brand new disks tested and working on standard 2 mb DJ70 mk1 or mk2 (4 mb recommanded).

VOLUME CONTENTS: Tr808 - tr909 - tr606 - cr78 - kr55 - RZ1 - Drumulator - OB DMX - drumtraks - xbase09.

OUT OF STOCK!!! OUT OF STOCK!!! OUT OF STOCK!!!



edit GALLERY:

roland dj70 cat thumb 1 dj70
thumb2 dj70 roland dj70 scan roland dj70 advertising
dj70 cat hires pic original italian ad original italian ad original italian ad









Company: Roland
Model: DJ-70
Class: Sampler keyboard
Keyboard: 37 keys
Display: 64 x 240 pixels
Dates: 1992
Resolution: 16 bits
Polyphony: 24 voices
Algorithms: 6 models
Memory: from 2 to 4 mb
Filter: LPF / HPF / BPF
LFO: 1 / partial
Envelope: 2 EGs
Sequencer: 8 tracks
Memory: 1 -> 4 mb
Storage: FD HD 1,44 mb
CPU: 80C196
DAC: PCM54HP
ADC: AK9201A



demoDEMO:

demo PIANO: rhodes - clavinet
demo ORGAN: VOX - b3
demo BELL: digital
demo WIND: mellotron
demo ANALOG: random pan
demo SYNTH: woooble - sync
demo PAD: 1- 2- 3- 4- 5- 6 - 7
demo AMBIENT 1 -2 - 3
demo DRUMS sampled Tr606
demo FX: filter
demo XP: high pass + rez
demo XP: All LFO squarewave
demo XP: resample 44 -> 15 kHz
demo XP: 2 basic waves mixed with 3rd algorithm
demo XP: choir + looped mixed with 5th algorithm




manual


manual



edit Sample SHOP
edit Report Error
edit DONATE



Roland DJ-70 FOR SALE
Weird sound Generator FOR SALE
CHECK OUT EBAY OFFERS



xp50







xp50

drum pad circuit rsf kobol
awardSPECIAL AWARDS:
solid
solid
UNDERRATED NERVOUS EDIT


comment


REVIEW "Algorithms allow unlimited texture and lofi noises, strange patterns and glitched sounds. Programming The DJ70 is quite difficult but challenging"

manual manual
-cheap - interface
- filter
- storage / memory
-realtime algorithms -sequencer
- a glitch machine -timestretch

roland dj70
.You can do more than playing loops and ... RTFM!"
