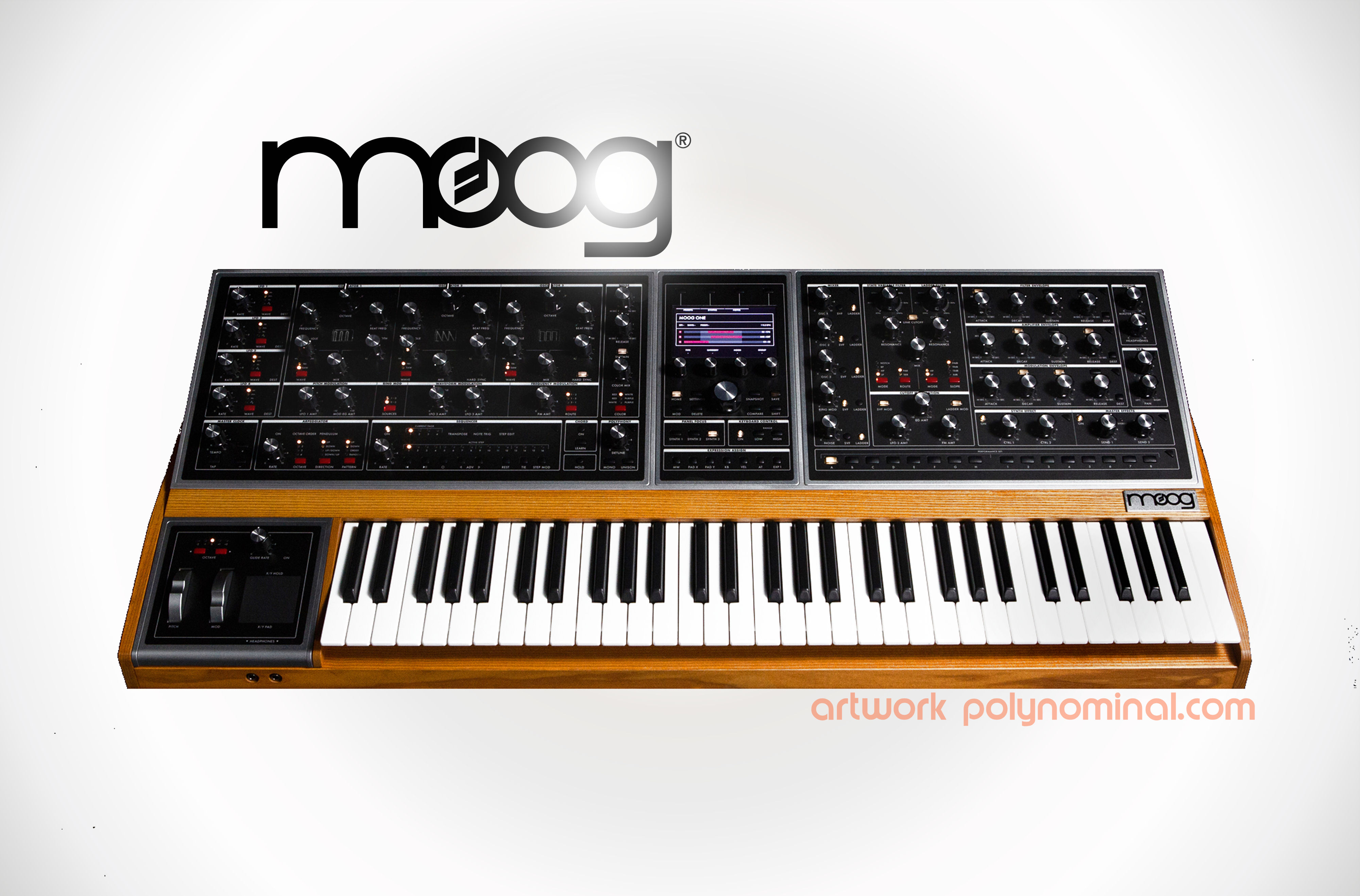

Class: Synthesizer Polyphonic, Tritimbral Analog
Keyboard: 61 Full-size keys with velocity and aftertouch (model Fatar TP-8S)
Weight: 20,4 Kg
Dimensions: 1070 x 510 x 108 mm
Display: color LCD
Polyphony: 8 o 16 voices versions (note: 8 voices cannot be upgraded to 16)
Oscilattors: 3 VCO + 2 noise generators
LFO: 4 modulators
Filter: analog 2 models per voices
Envelope: 3 Egs per voice tuDAHDSR
Ring Modulator: yes
Effects: digital (from Eventide)
Sequencer: yes 64 steps (x3)
Memory: 128 performances
KEYBOARD main panel features a color LCD display, 73 knobs and 144 buttons.
CONTROLLERS Pitch Wheel, Modulation Wheel and X/Y Pad with pressure-sensing and hold
Back panel terminal connectors:
- 2 main audio outs + 2 aux
- 4 signal inserts
- 2 Voltage Inputs CV
- 4 Voltages outputs CV
- 2 headphone outs
- Midi interface
- 1 audio input (line+xlr)
- 3 assignable pedals inputs
- Lan interface (no function yet)
- Usb interface (both Midi and upgrade OS)
Have some sounds or demo want to share?
- No manual
- No service manual
Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.
OSCILLATOR each polyphony voices used special new designed Triangle Core OSCILLATORS VCOs.
The output of each oscillator can be a mix of the selectable triangle / sawtooth wave, plus a variable-width pulse wave.
The rise/fall time and symmetry of the triangle core wave and the reset phase of the sawtooth wave can be shaped (or modulate into the matrix).
- octaves: 32’, 16’, 8’, 4’, 2’ feet
- Beat Frequency at+/- 7Hz
RING MODULATOR with 2 fixed routings:
Special HARD sync (2 + 3 >1)
-Red + Purple
-White + Purple
With own Envelope AD/AR
the internal analog mixer allow to ajust gain of:
- OSC 1/2/3
- R ing modulator results
- Noise generator
- external audio source
2 independent resonant filters per voice that can be chained in serial or parallel mode:
multimode" State Variable" 12dB/Oct (LPF HPF NOTCH)
- Classic Ladder filter at -24db/oct but it can be set also at 1/2/3 poles.
4 delayed LFOs twith Fade IN / OUT option, syncable to Midi clock.
The Modulation Matrix allows to modulate quite anything with flexible source/destination matrix system on the LCD panel.
3 EGs with Delay-Attack-Hold-Decay-Sustain-Release segment structure.
Special "Loop mode" to repeat any parts of the segments.
The machine is Tri-timbral and manages splits, stacks, effects amount. Special Macro modes allow to changes data on 1/2/3 parts at the same time.
Each part features also a programmable arpeggiator and a handy 64 steps sequencer.
Settable stealing/sharing / priority voice modes. Special massive stack of 48 voices in UNISON with detune amount.
Dual mono sends with stereo return, or single stereo send with stereo return.
Some algorithms Chorus, delay, phaser, bit reduction, vocoder and famous Eventide Reverbs e.g famous Black Hole, Shimmer and classic Plate / Room / Hall Reveberation.
Each machine setup including "user space" can be saved including Midi settings, pedals assignment, Led display amount , CV routings and more.
- literaly thousands (?) of patch presets with internal browser with a special database options for quick and easy search.
- unjustified price
-impressive specs / huge
