Elka EM-44

FM module (1986)

Elka EM44

"Module version of FM Italian synthesizer Elka Ek44 based on a 4 OP Chip from Yamaha "

 Main Data

Elka m44



Company: Elka
Model: EM44
Class: Midi Module
Display: LCD no backlight
Synthesis : frequency Modulation
Dates: 1986
Country: Italy
Polyphony: 18 voices (2x9)
Operators: 4 (sinewave)
Algorithms: 8 models
Memory: 96 slot (64 ROM) + 16 performances
Multitimbric: 8 parts
EG: 4 DCO + 1 EG AMP
LFO: 1 vibrato
Weight: 6kg
Dimensions:  37 x 3 x 9cm
IC YM2203 OPN /  MN3009 +  MN3101 /
CPU: TMS 7001 + Motorola 68b09

Module same performance as Ek-44 , rackmount version is Er-44 .

Rear panel connectors:
- Stereo out
- headphones out
- Midi interface (IN OUT THRU)
- ROM and RAM cartridge slot
- volume input pedal
- sustain input pedal
- portamento input pedal
- program UP input pedal




none

- No official VST plugin No free samples


 - looking for Elka Ek44 service manual and schematics
- download free EK44 user manual

Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.

 In details

Em44 CPU

VOICE Cpu 8-Bit Microcomputers TMS 7001 + Motorola 68b09 handle 18 voices polyphony: 2 detunable x 9 voices engine DEG1  + DEG2 .

Main IC is based on a FM YM2203 (SG1/6 these are yamaha IC but sanded) CHIP - able to generate 4 sinewave OP routed into 8 possible algorithms.

18 voices

DEG1 8 voices
DEG2 8 voices

 4 oscillators

Sinewave shape called "DCG"

8 algorithms

Check out the table picture

YM2203 OPN

FM Operator Type-N 3-channel sound chip developed by Yamaha. The YM2203 has been mainly implemented on arcades games from era. usual DAC driver is YM3014 here's called DA1. Wow

Elka EK44 IC

Em-44 Performance

The 2 voice processors can be split, layered or played as 8 indipendent parts with own Midi channels and mix volume. Also other features:

-arabian Scale
-Portamento
- fine tuning
- analog chorus based on BBD MN

Em44

LFO / EG / FILTER

Filter

FILTER

NONE

LFo

LFO

1 delayed modulator (shapes: Sawtooth Sinewave, random and Square) with variable depth

Envelope

Envelope

- 4 EG FM  (ADSR)
- 1 pitch EG

data-ad-slot="4864025173" data-ad-format="auto">
Elka EK44

EM-44 memory

Sequencer

96 slot (64 ROM) + 16 performances
can be expaned with cartridge

Battery

<- internal battery sanyo

Our Verdict

"Quite big and bulky. An esoteric touch of 4 OP FM! programming is not easy: no programmer around! "

Sound
quality

Interface

Build
 quality

Rarity

Quality /
price

Overall

CONS

- interface
-limited 4 OP
- no editor

PROS

-rare
- FM
-chorus

Are you a EM44 user? do you like it? You do not agree with our review?  Let us know in the comment field just below

DISQUS COMMENTS WILL BE SHOWN ONLY WHEN YOUR SITE IS ONLINE

data-ad-slot="4864025173" data-ad-format="auto">

SHARE

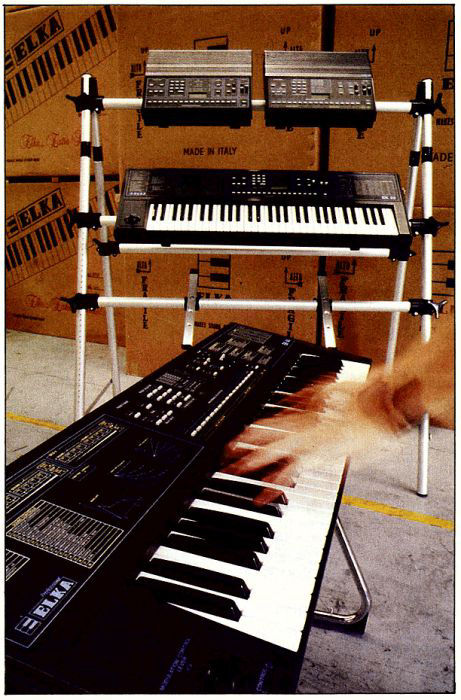

Elka advertising
