Arp 1613
16 steps sequential voltage generator (1977)
16 steps sequential voltage generator (1977)
Company: ARP
Model: 1613
Class: step sequencer
Dates: 1977
Country: United States
Weight: 3,6 Kg
Dimensions: / mm
Price: 2000€
Display: LEDS
Technology: analog and IC
Tracks: 2 called A/B
Memory: none, no way to save
CV range: 0-10V voltage scale
Scale : 1V/Oct which is 1/12V per semitone
Clock: internal generator or external trigger sync option
panel connectors:
- CV IN, CV OUT
- Gate In, Gate Out
- Trigger In
- gate bus out 1 2 3
- step advance input
- reset input
- clocked gate out
- quantized out 1 /2
- CV input (transpose)
- quantized input 1/2
- multiple (x4) patch
- clock normal out
- footswitch out
- Start/stop + reset clock
- pulse witdh adjust
none yet
- No official VST plugin
Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.
VOICE 1613 sequencer can play a single track CV with 16 steps or pushing a lever, special 8 x 2 mode at 1V/Oct for dual control (eg. VCO and VCF) Each CV step can be set to a specific voltage note value of course but also a special voltage gate on 3 gatebus 1-2-3 (upper switch) which can be also used as an EG .
The sequencer allow a step reset to position 1 or a skip voltage on a specific step.
2 modes:
- 1 track with up to 16 steps
- 2 tracks with up to 8 steps each.
- Straight note playmode or random step mode using the relative lever switch
step scale at 1V/oct with a voltage 0-10V range
with positive gate
- Transpose mode with CV voltage input
2X VCO quantisizer voltages to the nearest relative notes, much easier sequencing 12 tone melodic parts when you don't have to fine tune every step.
Internal clock with frequency or manual button for step +1
Sequencer clock can be clocked to external triggers (patch trigger step IN)
- can be expensive
- may need serious maintenance
-Rare
- funny
- interface

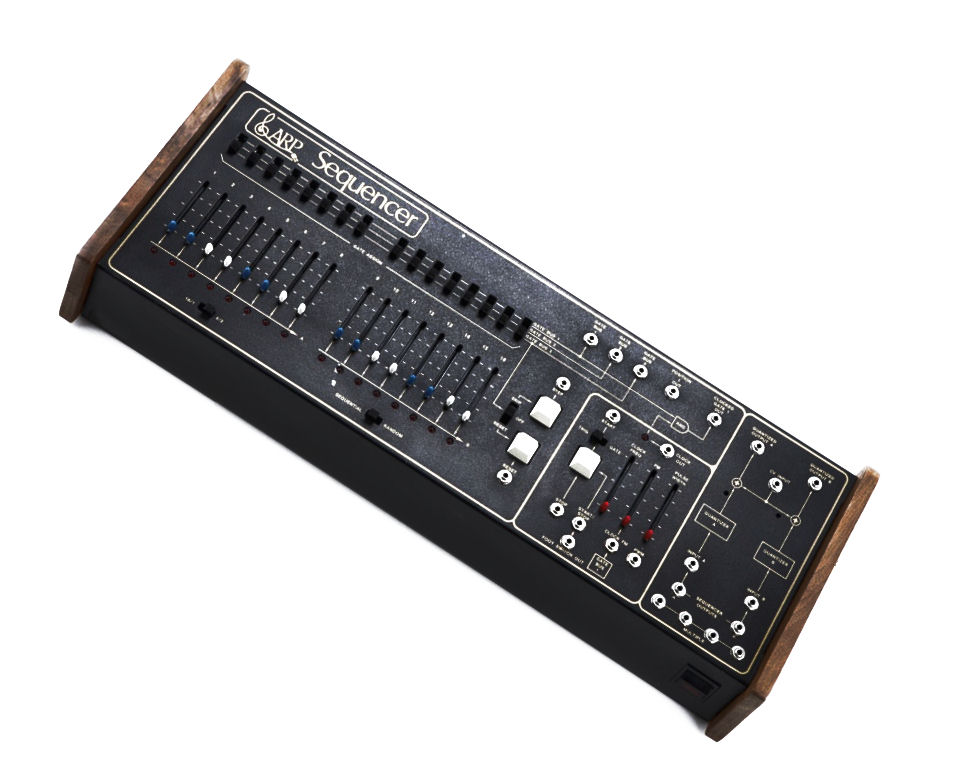

ARP 1613 sequencer
