Yamaha QY-10
Midi Walkstation (1990)
Midi Walkstation (1990)
Company: Yamaha
Model: QY-10
Class: arranger module
Pads: 12
Dates: 1990
Country: Japan
Weight: 0,3 kg
Dimensions: 187 (w) x 25 (h) x 104 (d) mm
Price : 50€
Synthesis: PCM rompler
Technology: AWM
PCM Resolution: 12 bits
Polyphony: 32 voices
Sounds: 30 instruments
Drum samples: 26 PCM
Multitimbric: 8 parts
Sequencer: 8 tracks
Resolution: 1/96
Quantisize: 1/4 ->1/32
Memory: 6000 notes
Chords: 20 presets
Sync: Midi clock
Midi: IN / OUT / THRU
DAC: YM7138
PSU: 12VDC

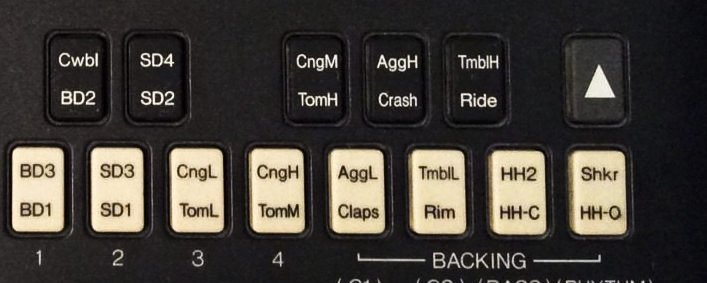

Main panel features a 16 x 2 lines display, 37 buttons, 12 pads (no velocity).
Back panel terminal connections:
- 1, 5 mm stereo line out
- Midi interface
- volume gain slider
- headphones out
- Powers supply is external with 12 V negative in center 300 mA - suggested models are: Pa1b / pa3c or 6 X 1,5V batteries into the hatch.
FACT: The Novation MM-10 keyboard was a docking station for the QY10.
NONE
- No official VST plugin
- no known samples library
Have some QY10 sample set you want to share? CONTRIBUTE :)
owner's manual download
NO SERVICE MANUAL / SCHEMATICS if you have it and want to share it, please contact us.
Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.
VOICE system manages 8 voices polyphony based on PCM samples at 12 bits resolution based on a AWM PCM generator/ DAC is a custom Yamaha IC YM7138.
QY10 patch sounds are non-editable presets and includes 30 instruments + 26 percussions. Check full instruments LIST.
QY handles 8 parts with fixed Midi channel grouped in the following order:
Midi channel 1 : Assignable instrument 1
Midi channel 2 : Assignable instrument 2
Midi channel 3 : Assignable instrument 3
Midi channel 4 : Assignable instrument 4
Midi channel 5 : Chord 1 (read below)
Midi channel 6 : Chord 2 (read below)
Midi channel 7 : Bass
Midi channel 8 : Rhythm
up to 2 Chords channels allows to enter directly one of the 20 triads presets (most commons) check LIST.
Up to 8 tracks at 1/96 resolution.
Qy sequencer offers some edit functions like Erase, Insert measure, Merge tracks, track mute or note transpose and quantizes at resolution between 1/4 and 1/32.
Sequences can be recorded in 2 entry notes modes:
- real-time: notes triggered by pads or a Midi keyboard.
- step Mode: with rest pause and variable note length.
Sequencer can be synched (slave) to external Midi clock.
- 8 songs
- 6000 notes.
- 24 user patterns 299 measures each.
A kind of 3V CR 1/3/N barrel lithium soldered to the mainboard.
-sounds cannot be edited
- edit / display
- obsolete sounds and memory storage
- cheap now
- portable
Sqyrrel editor for ATARI St
Yamaha Qy10
