Roland VP-70







roland vp70

info Country: Japan
Weight: n/a
Dimensions: n/a
audio demo trend price : 150€
manual demo video comments

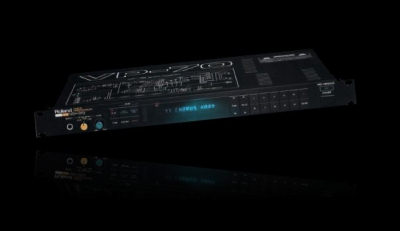

Roland VP-70
Voice Processor (1987)


Early digital Midi pitch-shifter with 4 individual engines, a vocoder and a special pitch-to-midi mode.

edit
logo

info RACKMOUNT single unit.
The main panel features a VFD fluorescent display, 20 buttons, 1 impedence selector and 1 volume knob.

Back panel terminal connectors:
- XLR input for microphone
- main out dry
- main out effect
- pedalswitch input for patch change
- Midi interface
- signal input frontal (-50dB / -10dB / +4dB)
- RCC IN for optional pedalboard model FC-100 (same used by GP-8)
TIP: Midi and RCC cannot be used in same time and must be selected manually.





edit TECH main core based on a 16 bits CPU Intel 8xC196family (C095-90) - Internal sampling frequency range from 35Hz to 15 kHz sampling rate at 16 bits resolution.
VP unit manages up to 4 individual digital engines (each 1 octave range) assignable to individual Midi channels.

diagram vp70 The VP- 70 basically works into 3 modes:

- HARMONIZER
- VOCODER
- PITCH to Midi processor






edit HARMONIZER Special HARMONIZER sets halftone values for each engine directly by panel o using some macro presets e.g. Major / 7th / 5th.

diagram vp70 LEFT - By changing the pitch of each pitch shifter in semi - tone steps, the input sounds can be harmonized, creating an effect like singing in a choir.



edit VOCODER It is also possible to directly input notes using a Midi keyboard activating the special vocoder mode. eg While feeding the voice into the VP-70, play key or keys on the Midi keyboard. playing C4, E4 and G4 simutaneously will create a C major chord.

vocoder

The VP70 unit does NOT produce robotic voice like the ancestor SVC-350, since there is NO carrier input signal.




edit pitch-to-Midi
function is implemented, very similar to the one implemented on module Roland CP-40.

workflow roland vp70 tech




edit PANEL FUNCTIONS
the edit is quite simple on the display but requires patience to access many sub-menus:


roland vp70 tech




edit MEMORY:

- 128 patches
Patch can be saved only to sysex Midi exlusives.

roland vp70 internal

LEFT Battery replacement memory architecture is based on a TC5564PL20 and a soldered lithium battery (3V Cr-2032).

-Click to enlarge -






memroy RELATED VP MODELS:

Roland VP-330

VP-330 VOCODER PLUS (1979) Spiritual father and true vocoder with internal waves or external carriers. Rackmount version is the model SVC-350
video

VP-03

VP-03 Boutique: latest version
video

VP-7 (2010) COSM technology harmonizer ,vocal design, chorus builder
video

Roland VP-550

VP-550 (2007) vocal designer keyboard harmonizer
video

VP-770 (2009) updated VP-550
video





effet VST PLUGIN / SAMPLED VERSION there is no VST version of VP70, however plenty of harmonizers and vocoders:

EFM Oddse

pitchproof pitchproof

G200KG KEROVEEkerovee

FREE




demoAUDIO DEMO

demo VERY simple demo with mic : ok I can't sing ! :)

demo If you have a better demo, please send it us :)


video VIDEO SELECTION

experimental Vp70 along experimental VP70 noises with
along with:
Roland Cr-8000
Korg kpr-77

Casio CZ-1
noises with
Roland CR-68


Company: Roland
Model: VP-70
Class: Rackmount effect
Unit: 1 rack
Dates: 1987
Technology: digital
Resolution: 16 bits
Freq: 35Hz ~ 15 kHz
Voices: 4 engines
Memory: 128 patches
CPU: intel-8095
Demo: 1






manual
MANUAL

manual
SERVICE MANUAL

rx5 reset procedure


Reset procedure

HOLD MIDI, PLAY, AND VOICE EXP AND POWER ON.

vp70


roland vp70 block diagram
scanned block diagram


poly800 and dw8000

fx original brochure



poly800 and dw8000
fx original brochure




VP-70 FOR SALE

roland vp70 for sale
CHECK OUT EBAY OFFERS



motherboard EPROM CPU
awardSPECIAL AWARD:

solid solid
Cheap as hell Obsolete algorithms


comment

REVIEW "The Vp70 can be considered obsolete as a standard harmonizer / pitchshifter but it is fun for weird sound experiments. Sounds a bit early digital with typical duck-distorted voice especially on high-pitched notes."

manual manual
-4 individual engines - old stretching algorithms
-cheap
- interface
