Gem SX-2

Multimedia Worstation (1993)

"A strange crosser between the arranger Gem WX2 multimedia workstation and the well-known Gem S2 synthesizer. We do miss a lot of info about this, contact us if you have more."

Overview

KEYBOARD 61 keys with velocity and aftertouch, backlit display and a Floppy Disk Drive: 3.5 inch 2DD/2HD (compatible with WX2 midi and S2 samples export). Optional TV card.
Also a 76 keys version with same specs, the GEM SX3

SYNTHESIS
- video out (optional board)
- display contrast trimmer

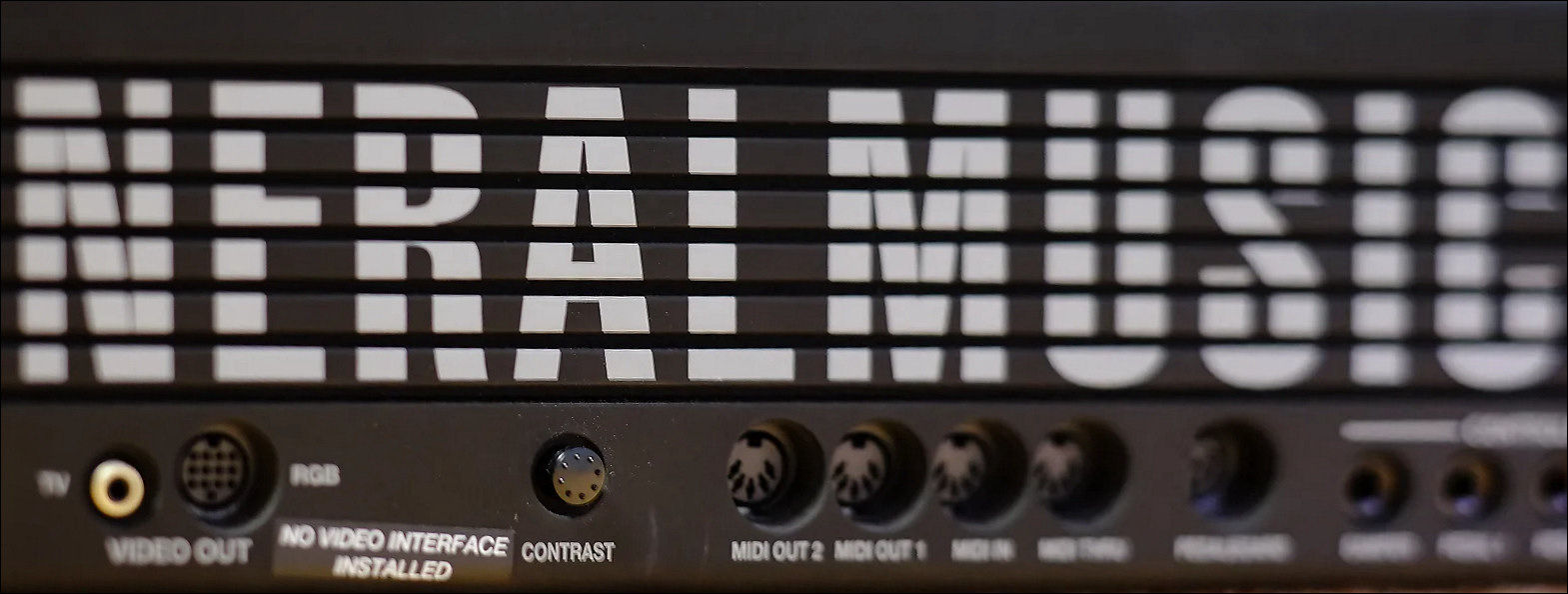

- Midi IN (x2) OUT (x2) THRU (x2)
- 2 pedalswitch input
- 1 damp volume pedal input
- 2 jack inputs
- 2 aux audio out
- 2 main out

Sound and sequencer

SOUND 6 mb rom wave table rompler, 2mb if sample option is fitted, 480 sounds arranged in 16 family groups (352 sounds+ 112 percussions) .

EFFETCTS: 2 digital dsp for reverb and delay.

SEQUENCER 16-track sequencer, 250.000 notes with special score mode. 184 multitimbra performance , 64 rom styles + 64 songs.
