Analog portable synthsizer (2015)

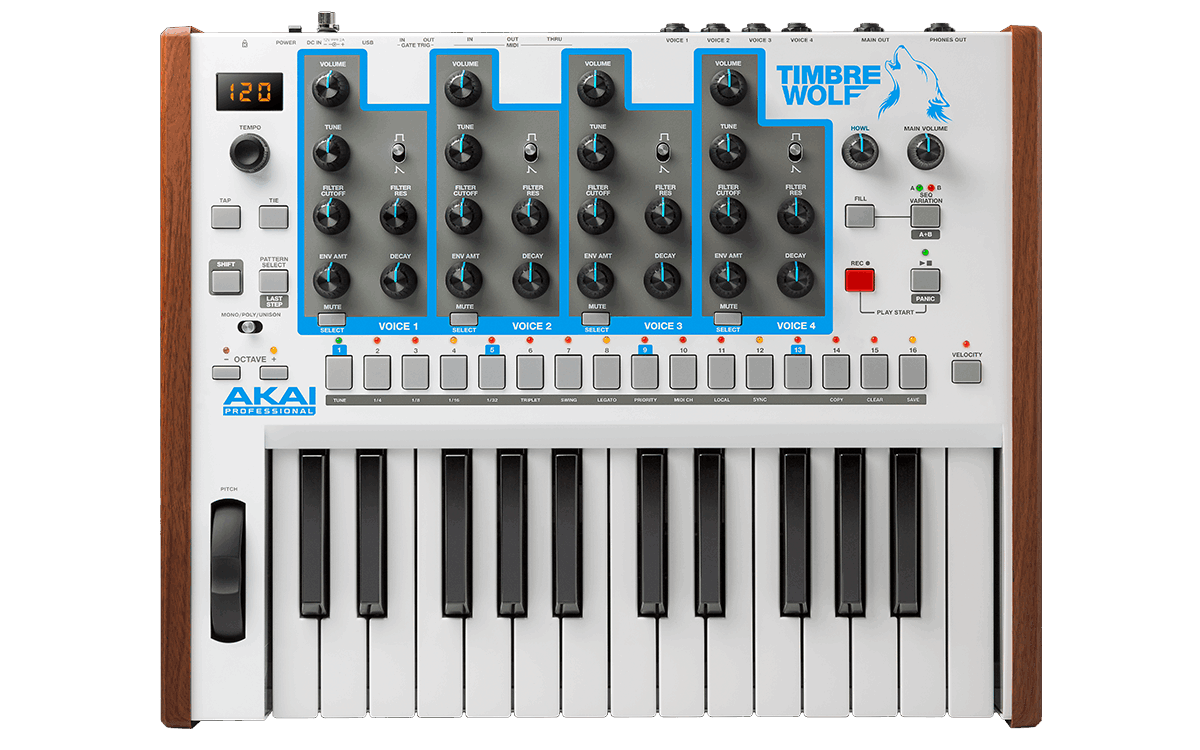

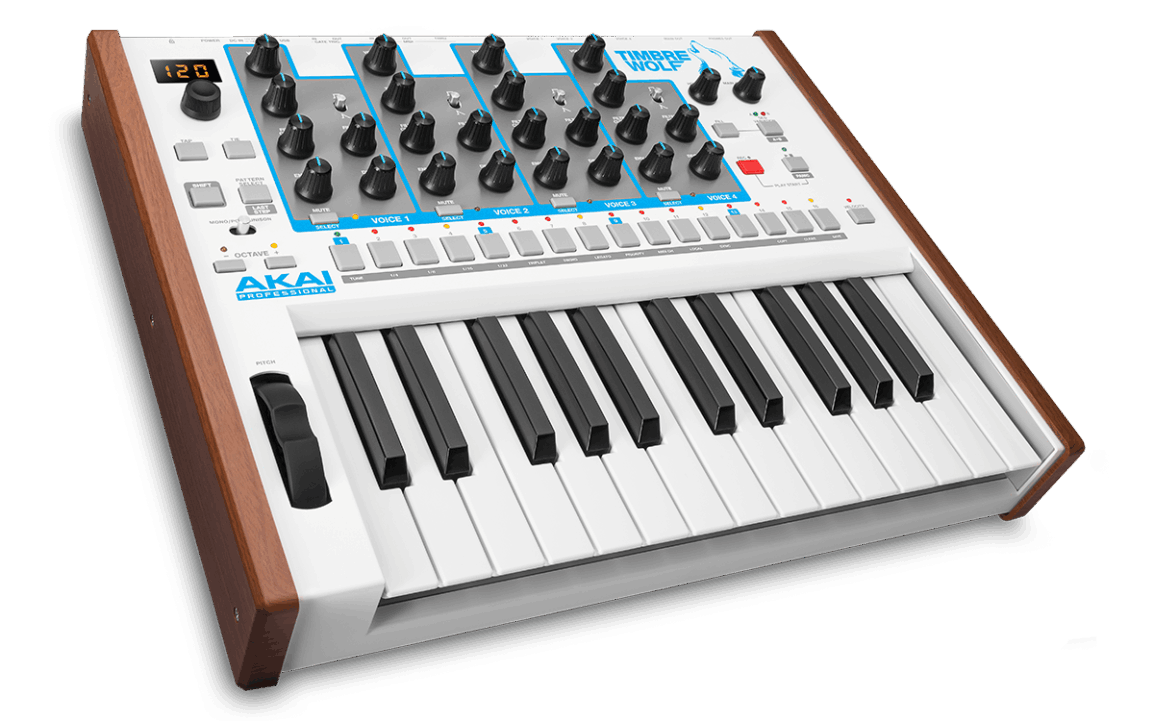

KEYBOARD Budget 25 velocity-sensitive keys (3-octave range with Octave –/+ buttons) analog synthesizer with internal sequencer from famous sampler producer Akai. It basically features a mod wheel and a 3-digit, 7-segment LED display .
Classic subtractive parameters can be tweaked to using a dial. Individual voices can be tuned slightly or radically different from each other and played independently, polyphonically or in unison stacked all four play at once, each voice with individual out.

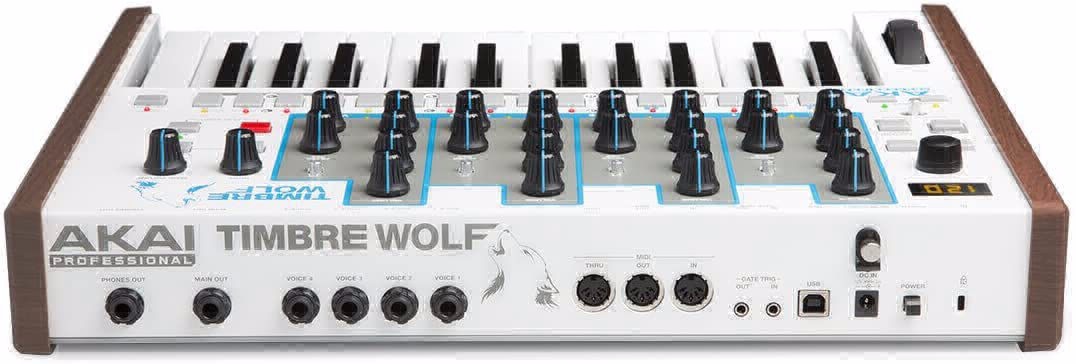

TERMINAL CONNECTIONS 1 1/4” (6.35 mm) TRS main output (TS-compatible)1 1/4” (6.35 mm) TRS headphones output 4 1/4” (6.35 mm) TRS voice outputs (1 for each voice)1 1/8” (3.5 mm) TS gate trigger input (0–12 V max, 5 V)1 1/8” (3.5 mm) TS gate trigger output (5 V pulse)1 5-pin MIDI input 1 5-pin MIDI output 1 5-pin MIDI through 1 USB port.
SOUND it' s a polyphonic 4-voice analog synth featuring a single VCO – either square or saw – each voice is run through a 4-pole low-pass filter with resonance. The filter for each voice is modulated by an envelope, which can be shaped by dedicated decay and envelope amount knobs.
SEQUENCER each voice is sequenced and played back, and can be synthed to external clock.
All four voices have their own 32-step dedicated sequencer with A/B and fill variation. The sequencer features 4 tracks in total. Each of the sequence tracks send their notes via MIDI, meaning if you’re using the sequence in poly mode, you can have track 1 send its notes to the Timbre Wolf and use tracks 2-4 to control other synths, keyboards, drum machines, etc.
|Engine Detailed||4 VCO Waveforms: Saw Down, Saw Up, Square. Either 4 mono, 4 voice unison or 1 voice poly|
|Filter (VCF)||1 24dB Slope (4-pole), Low Pass, Resonance|
|Envelope (VCA)||1 Decay|
|Sequencer||4 32-step dedicated sequencer with A/B and fill variation|
|Audio||Stereo Out, 4x mono out|
|CV-gate||Gate trigger I-O|
|Produced:||2015 - 2016|
