Linn Electronics
Linn 9000 (1984)



Rare digital drum machine really ahead of its time but bugged by many OS troubles and technical issues.

Note: this page is relative to original machine and not to third-part upgrades, also some of these pictures may differ from the classic 1984 edition.

logo linn 9000
edit functions

info DRUM MACHINE Main panel features a 32-characters display, 18 sensitive pads, 44 mixer sliders, 2 data sliders, 43 push buttons and 16 others on the numeric pad.

Rear panel terminal connectors:
- Midi interface
- tape interface
- 2 trigger outputs
- 2 footswitch inputs
- sync interface
- hihat pedal control
- audio input for sampling (requires optional card)
- click audio out





edit VOICE main core INTEL 8/16 bits 8088 at 8 MHz clock features 18 voices polyphony, each voice has an assigned 8 bits companded PCM sample from various EPROMS standard.

NEC INTEL 8-bits 8088

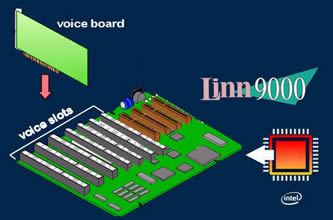

editThe main board features a total of 14 slots for sound cards and expansions. The original setup has 8 factory cards fitted adds a total of 18 separate analog outs + 6 trigger inputs





edit WAVE The internal sounds are sampled at 8 bit with variable frequencies between 11 and 37 kHz and stored on EPROM (27128/2764) and split in several voice cards which have different circuit design.
Sample list: kick,snare, hithat, toms (x4), congas (x2), cymbals (x2), standard cymbals, cowbell, claps, tambourine, sidestick and splash cymbal.


EPROM 27128 and 2764.

Each assigned samples features individual voice setting: - volume gain
- panning position
- pitch tuning

edit samples can be changed in 2 ways:
- swapping or burning new EPROM
- sampling using optional board (8-bit / 40kHz) with a basic memory of 64 Kb (expandable).




edit PERFORMANCE

-All sliders movements can be recorded in real-time and hihats features a special slider for real-time control of the decay. The repeat function is used for synched snare drum rolls.

-TRIGGER 6 voices can be assigned to external trigger signal (+5V pulses) with adjustable dividers , 6 extra can be added installing an optional card.

-Also 2 trigger outs to drive other machines or sync synth arpeggiators.

linn 9000 tech





edit
SEQUENCER there are 2 kind of sequencer in the LINN 9000 sharing same edit commands:

- keyboard recorder polyphonically records 32 tracks on 16 Midi channels

- drum sequencer records 999 bars in step mode or real-time, quantification from 1/8 to up to 32 triple with variable time signature and swing variations.

SYNC internal frequency range from 48 to 250 BPM at 48 PPQ or slaved to other compliant devices

menu recording




edit MEMORY:

linn 9000 mainboard

- up to 999 bars

- 31000 notes (7000 synth + 24000 drum) can be also expanded.

Sequences and recorded samples can be saved to optional 3"5 drives or tape storage.


edit Click to enlarge view and spot battery





edit MAINTENANCE
one the most unreliable and buggy machine ever mad: in fact this ground-breaking and expensive project litteraly bankrupted the Linn company. It is hard to list all possible issues, but the most common and dangerous is still the battery-backup leakage and the electrolytic capacitors from internal PSU -- did you say it smells like fried chicken?

linn battery leak


edit LINN 9000 example of corrosion


(click to zoom- pic by TOPOPICCIONE)


linn battery leak


edit Phiphong PSA-523BU - also famous mind blowing Oberheim DPX1 weirdo sample player - click to zoom IN pic.

Output +5V DC 5A/6A Peak Yellow
             +12V DC2,5A/3,5A Peak Red
             -12VDC 0,5 A BR


Check out Rifa film capacitors 250V 0,1 µ F / 271 M 610




edit
OS on 27128 OS dump- picture below

os-DUmp



edit RELATED FAMILY:

Linndrum 9000 original

Linndrum 9000 original - there were different color releases and some modifications to the display.


Linn drum lm1 Linn drum LM1 - the Linn legend started in 1980 VIDEO

Linn drum lm2

Linn drum lm2- maybe the most famous LINN of the series released in 1982

VIDEO





effet VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

Free LINN samples no resource n/A




edit EDITOR

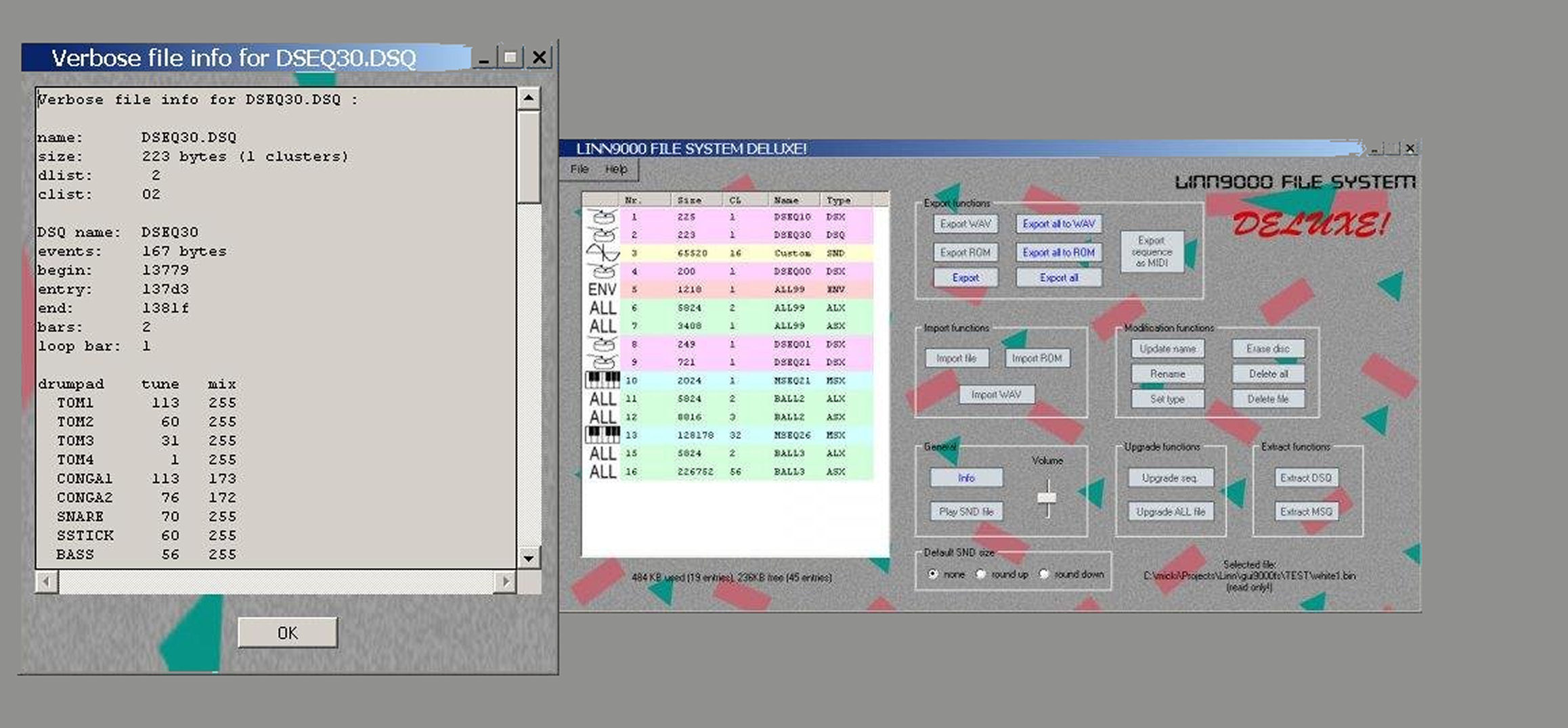

- LINN9000 FS: access to Linn9000 image files and devices (FREE - LINK)

linn 9000 editor





edit GALLERY:

audio demo audio demo
audio demo



Company: LINN
Model: LINN 9000
Dates: 1984
Display: 32 chrs
Pads: 18
Technology: PCM

Polyphony: 18 voice
Sampling: 8 bits
Frequency: 11-37 kHz
Filter: None
Envelope : decay
Sequencer: 32 track
SYNC: yes
Storage: 3.5 FD HD
Memory: 31000 notes
CPU: I8088
PSU: phiphong PSA-523BU



demoDEMO:

demo pattern rhythm 1
demo pattern rhythm 2
demo pattern rhythm 3
demo pattern rhythm 4



linn 9000 service manual



linn 9000 service manual





manual
-Linn 9000 MANUAL
-MORE DEMo




Linn 9000 FOR SALE

Linn 9000 FOR SALE
CHECK OUT EBAY OFFERS











interla eh0400 linn cards
awardSPECIAL AWARDS:
solid
RARE

solid
DESIGN


comment

REVIEW: "The Linn 9000 is a nightmare for maintenance, but it sounds really good. For collectors or technical geeks"

manual manual
-Linn is Linn -bulky
-rare
-buggy

linn-logo
The Linn 9000 is a dream I’ve had for a long time. It answers nearly all of the requests I’ve received from top recording artists over the years. To a far greater degree than has existed before, it allows the non-technical artist to quickly and accurately realize the music which exists in his mind.- Roger Linn
