Virtual Analog Synthesizer (2009)

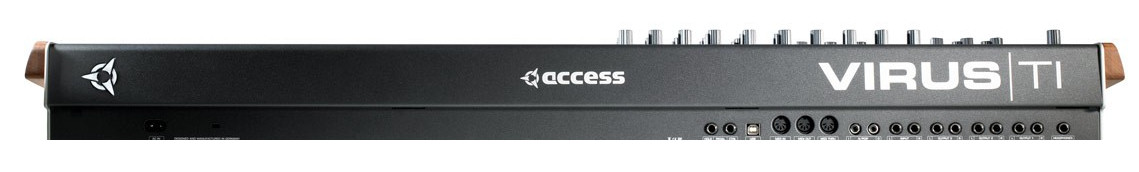

OVERVIEW Virus TI keyboard features 61 semi-weighted keys, two wheels on the left and a LCD display backlit
The sound engine features ia dual core DSP system able to generate about 20-90 voices depending on the synthesis, with a polished 192 Khz studio grade D/A converters (+4dB balanced output), with soft limiting algorithm at 24 bit A/D converters. Various oscillator models including Virtual Analog, Wavetable, HyperSaw, Grain- and Formant Table types.
Audio Output Connections: 1/4" Phone Jack, Stereo Main, Stereo Headphone
Audio Output Count: 5
Audio Output Notes: S/pdif Digital I/o / Surround Sound Capabilities
Inputs: 2 Stereo
MIDI Ports: IN, OUT, THRU
Effects: digital DSP realeased 192 parallel effects in total, including Reverb and delay, chorus, phaser, frequency shifter, ring modulator, distortion, 3-band EQ and new Character processors
Filter: 2 independent multi-mode filters (HP, LP, BP, BS) and the Analog Filter which was modeled after the Moog MiniMoog D with a cascade filter with 6-24 dB Slope and self-oscillation.
Arpeggiator: 32-step user-programmable arpeggiator pattern for every patch, it is possible to build own broken chords in a special 64 slots memory dedicated.
LFO: 3 LFOs with 68 waveforms to choose from with 2 ADSTR-segments envelopes.
MEMORY: 512 RAM patches and 26 banks of each 128 ROM patches which can be exchanged by the user.
