Yamaha TMX







Yamaha TMX - Drum Trigger module

Country: audio demo JAPAN
Weight: n/a
Dimensions: n/a
audio demo trend price : 100€
manual demo video comments

Yamaha TMX
Drum trigger module (1993)



Rackmount drum brain based on PCM samples with analog triggers and basic Midi control.

logo

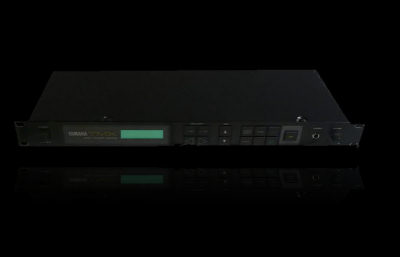

yamaha tmx module

info RACKMOUNT Main panel features a 40 X 2 LCD display, 13 push buttons and headphones.

Back panel terminal connectors:
- 12 analog triggers (including hi-hat) inputs
- Midi interface
- main signal out
- aux analog out
- hihat pedalswitch input for hihat control
- program change pedalswitch input.

ac Power supply is a 15V external PSU +)- polarity.






edit
TECH Main CPU H8/532 - 6435328 with a 16 bits DAC based on Burr Brown PCM56HP + dedicated IC YM3029 (floating point converter same found on synthesizers SY55 and SY99)- spotted also an unknow SMD IC YMW269-F.
Each kit is composed by different samples/sound at 16 bits from the internal ROM assigned to a specific Midi note. TMX Sound edit is limited to 3 parameters:

yamaha tmx - volume gain

- pitch tuning

- stereo panning position





edit
PCM WAVETABLE a pure rompler module: internal wave ROM contains 245 samples at 16 bits resolution

curve

Percussives sounds and drum kits are organized into 6 sounds categories: kick, cymbal, snare, tom, percussion and effects.

demo Hear drum kit 1





edit
TRIGGER signal input gain and threshold can be set manually or automatically using the AUTOSET function. Special Crosstalk Rejection function manages possible false hits.

ymx input triggers



editTIP: Special "ZAP" button enables sound preview (pic wikipedia)





edit ENVELOPE the voice edit features 4 preset velocity curves.

pitch edit yamaha tmx





edit SEQUENCER
some TMX functions are optimized for sequencer QY-10 or QY- 20.


qy10 tmx





editMIDI
module can be used as a Midi expander module but relative implementation is rather poor and manages only the Velocity Levels.



edit MEMORY:
- 25 ROM kits
- 8 RAM kits
- 32 performances
TIP: Setup can be saved to Midi dump.

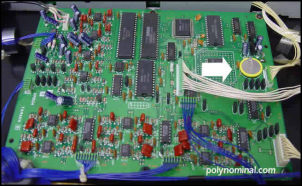

tmx battery replacement


-LEFT - RAM system works with a CR-2032 battery soldered to the mainboard, replacement involves soldering.

- click to enlage picture-




demo AUDIO DEMO

demo kit 1 demo
demo kit 2 demo
demo kit 3 demo
demo kit 4 demo



video VIDEO SELECTION

tmx drum demo
TMX drum demo



Company: Yamaha
Model: TMX
Class: Drum Module
Dates: 1993
Rackmount: 1 unit
Display: 40 X 2 LCD
Synthesis: PCM rompler
Resolution: 16 bits
N. Waves: 245 PCM
Memory: 32 performances
Velocity curves: 4 presets
Trigger: 12 inputs
DAC: BB PCM56P
CPU: H8/532
PSU: 15V
Demo: 4


manual
MANUAL


edit

factory reset procedure:

Switch on holding UTILITY + STORE


manual
-TMX SERVICE MANUAL
-FREE SAMPLE SET



Yamaha TMX FOR SALE
Yamaha TMX FOR SALE
CHECK OUT EBAY OFFERS

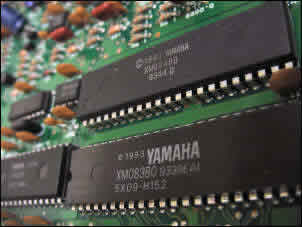

motherboard logo circuit YAMAHA YM2049
awardSPECIAL AWARDS:
solid solid
Cheap as hell PCM obsolete


comment

REVIEW "Affordable 90' drum brain. Nothing too impressive but ok at very fair price."

manual manual
-many sounds - obsolete
-cheap
-limited edit

tmx welcome
