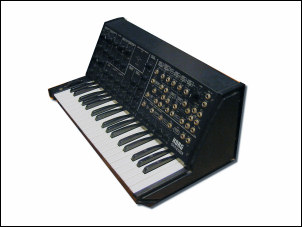

Korg MS-20 (1978)


MS -Monophonic Synthesizer- a synthesizer family born just after the famous PS Polyphonic Synthesizer production.

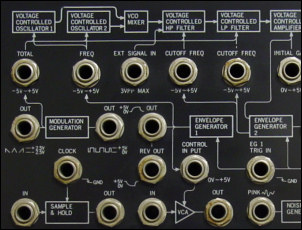

Snubbed for years, the Ms20 has been re-appreciated for its harsh unpredictable characters and pretty interesting signal patchbay acting like a portable modular.

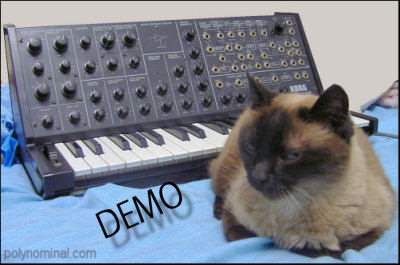

korg ms20 and nice cat
korg synthesizer

info KEYBOARD 37 keys, no velocity. Main panel features 38 knobs, 35 patch-connections with hardwired signal paths.


On the left side:
- an assignable modulation wheel generates +/-5V
- Momentary switch button: triggers some synthesis functions (generally modulation) on main patch panel.

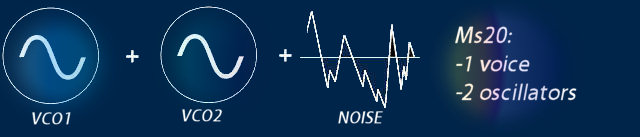

edit VOICE subtractive synthesis generates 1 voice. A MS-20 voice is composed by 2 oscillators named VCO1 and VCO2 that can be mixed to another pink/white noise generator that must be patched into the signal path.



structure

  VCO1 VCO2
Volume yes yes
Detune no +/-5
Octaves 32' 16' 8' 4 16' 8 ' 4' 2'

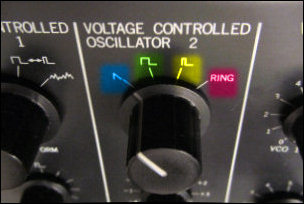

shapes tri /saw / noise / pulse saw/ sqr / 25% pulse / ringmod
Pulse width yes no

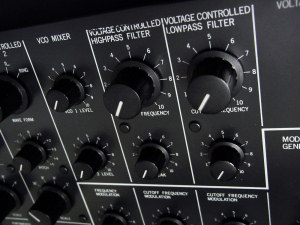

edit FILTER multimode VCF with 2 serial filters:
1- highpass 1-pole slope
2- lowpass 2-poles slope.
Both VCF offers independent resonance emphasis peak that reach self-oscillation with a resulting sinusoidal, in addition, filter cutoff can be also driven by patching CV section with CV IN VCF LP and CV IN VCF HP or Envelope 2 (EG2).



waveforms



adsr ENVELOPE there are 2 EGs :
- EG1: 3 stages ADR
- EG2: 5 stages
ADSHR - "Hold" keeps sustain before release segment
ADSHR is also default EG for VCA (both OSC) amplitude, but you can also patch VCA initial gain with apposite CV patch and EG2 define also EG for both VCF Cutoff.


struc3


lfo LFO single bipolar modulator MG with progressive waveform from rectangle to triangle.
LFO outputs 2 CV tensions with separate LFO triangle and rectangular (they do share same frequency) in addition is possible to use an external one with TOTAL IN CV, but REMEMBER: to activate use MG T/EXT and -NOT- EG/EXT.
LFO modulates 3 destinations at the same time:
1- VCF LP cutoff
2- VCF HP cutoff
3- VCO1 & VCO2 pitch.
Special SAMPLE and HOLD section for random or stepped modulations: you have to patch it for yourself, usually plug white noise IN and do not forget S/H clock frequency or it will not work! LFO square clock CV out usually does the job.



filter PERFORMANCE some handy functions:
- mastertune affects both VCOs
- portamento speed with variable time.
EXTERNAL PROCESS the ESP External Signal Processor processes external signal inputs can be filtered through the filter to a dedicated section complete with an envelope follower function (same featured in the optional module Korg Ms-03) and a pitch-to voltage tracker generator.
CV GATE many parameters can be controlled by external tensions (at Hz/V scale) including pitch VCO1-2 and filter1-2 cutoff.


waveforms




memroy RELATED MS20 FAMILY :


foot controller

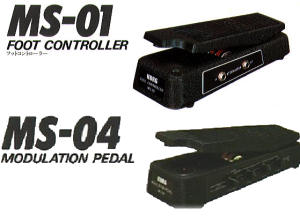

PEDALS for MS series:

MS-01: simple voltage controller with lag
VIDEO

MS-04: like MS-01 but with more functions and modulation LFO VIDEO

ms interface

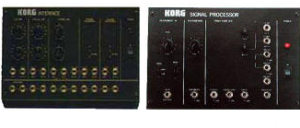

INTERFACES for MS series:

MS-02converts between V/oct and HZ/V

MS-03: external signal processor VIDEO

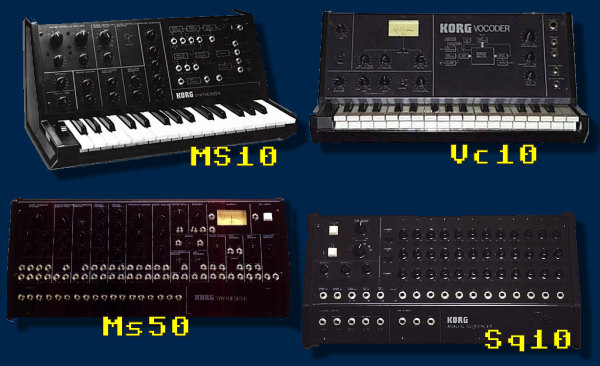

Korg Ms10 Ms-10 little brother with 1 VCO but neat CV control on pulse width VIDEO
MS-50 MS-50 basically a MS-10 with totally open structure with a LOT of extra patching routing Input/output. VIDEO
SQ-10 SQ-10 dedicated MS sequencer: 3 X 12 steps.
VIDEO

An economic remake has been made in 2015: the SQ1 VIDEO
VC-10 VC-10 a vocoder with some CV interaction with MS family. Sounds like a big juicy frog!
VIDEO
MINI MS-20

MINI MS-20
a 2013 SMD remake from 2013, did not tried it yet. It is scaled compared to the original, but there is also a special 1:1 version "MS-20 Kit".

MS20 VS MINI MS20
COMPARISON TEST

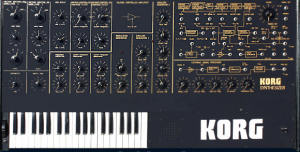

ms20 blackboard SPECIAL MS-20 BLACKBOARD EDITION: a special huge Ms20 version for synthesis learning purposes, it is almost impossible find (it seems to be around 40 produced) but it has the same specs.
Only worth only if you are a rich collector because it is pretty awkward to use.
usb legacy controller USB LEGACY CONTROLLER
an usb controller for vst legacy plugin, it does not generate any sounds


effet VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

  name price link demo
KORG LEGACY KORG LEGACY collection virtual VST plugin, along with:
-M1

-Polisyx
-Monopoly
-Wavestation

Commercial VST

KORG LEGACY KORG LEGACY demo
audioanimals audioanimals Free sample pack
(requires registration)
effet N/A
sample from ms20 Liveschool Free sample pack
(requires registration)
effet N/A
banks universal soundbank free sample pack effet N/A




demoAUDIO DEMO

demo All M20 (overdub)
demo peak
demo Sample and Hold
demo LFO

demo LFo 2
demo Ring mod
demo song demo (thanks to andy matic )
demo


effet Soundcloud Ms-20

track1 3 tracks track3

videoVIDEO CLIP SELECTION

KORG MS-20 ESP DEMO Sounds of the Korg MS-20 Korg MS-20 01
ESP DEMO Sounds test



mimi ms20
Mimì the synthcat with Korg Ms20






manual
KORG MS20 MANUAL





foot controller
Korg MS-20 SERVICE MANUAL





original scan







korg ms-series





korg ms20 flyer





korg ms20 scan

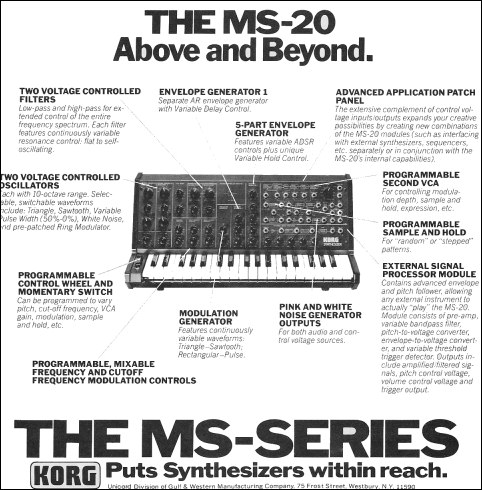

korg ms20 brochure




frostwaveThe MS filter has been cloned many times, in particular in a wonderful filter box
Frostwave Resonator





korg ms20


original scan





original scan




Monkey Island Ms20
Monkey Island Ms20




weird mod!
weird mod!



AUDIO TEST

MS-20M kit with SQ1
MS20 VS MINI MS20
COMPARISON







Korg MS-20 FOR SALE:

Korg MS-20 FOR SALECHECK OUT EBAY OFFERS






behind side close up


manual

- filter(s)!
- patching flexibility
-classic

manual

- expensive
- Osc not so fat

-panel not so obvious.


comment


REVIEW :"Harsh machine: a cornucopia of electronic sounds and effects. It is essential to deepen patch bay capacity to open a brand new world. "
