Emu Procussion







emu Procussion
audio demo Country: USA
Weight: 2 Kg
Dimensions: N/A
audio demo trend price : 60€
manual demo comments

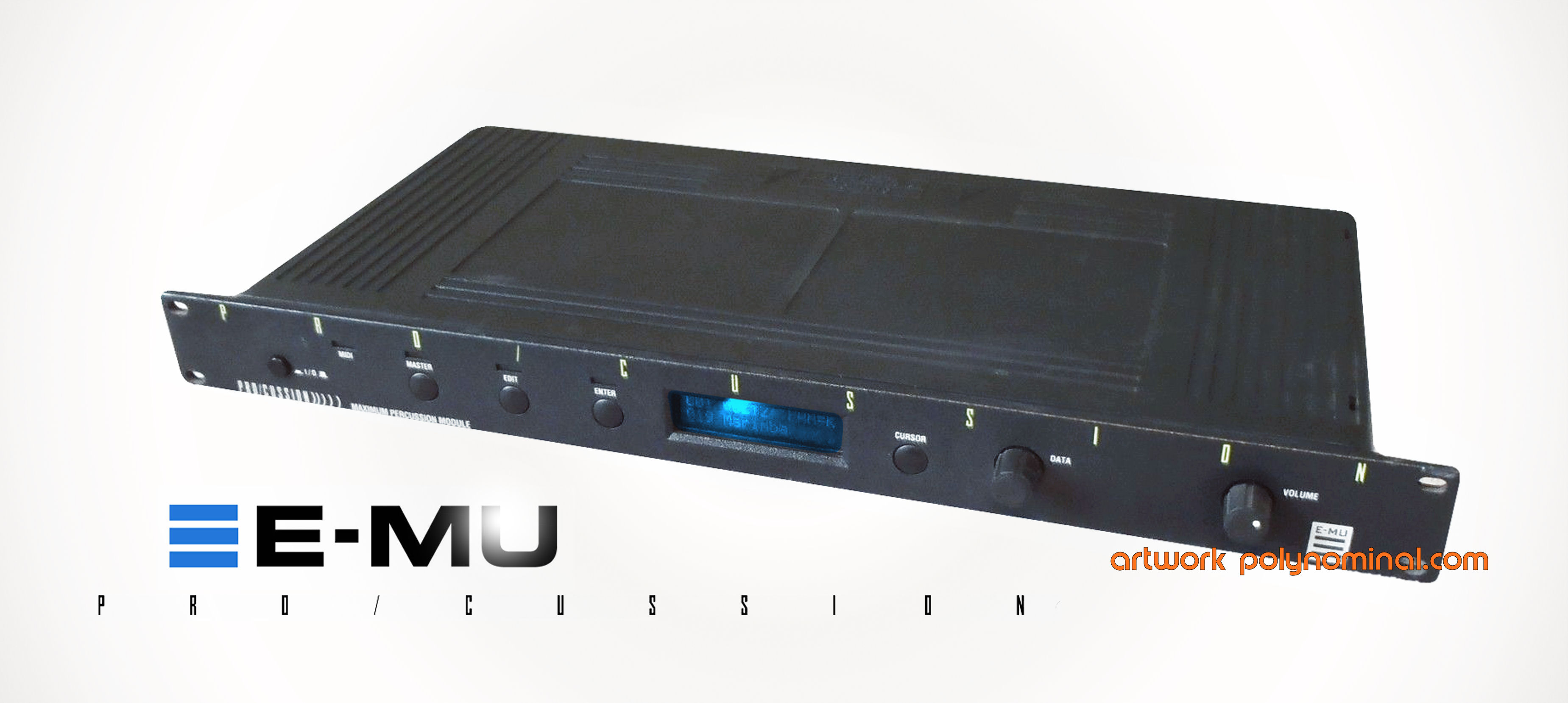

Emu Procussion
Maximum Percussion Module (1991)



Rackmount expander derived from classic Proteus series based on percussives and drum samples.

There are 2 different Procussions models available, just different design and scripts but technically they are just the same.

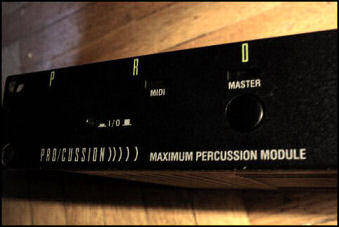

emu procussion
percussion module

info RACKMOUNT MODULE single rack unit.
The main panel features 16 x 2 lines display, 4 push buttons and 1 data encoder.



Back panel terminal connectors:
- Midi interface
- main signal outputs
- 4 AUX analog outputs (with insert sub)






editVOICE main CPU is a 16 bits Motorola MC 68000 manages 32 voices polyphony - relative DACs are Burr-Brown PCM56 same technology used in the EMU Proteus series.
A basic Procussion patch or stack is composed by 4 PCM samples layers then a kit contains up to 24 stacks assigned to keyboard zones - each layer can be read forward, forward or delayed.


demo HEAR drum kit 1





edit
WAVETABLE the internal 4 MB ROM is coded at 39 kHz / 16 bits resolution and contains 216 PCM samples derived from classic sampler dinosaur Emulator III library, re-organized in 4 sample families :

pcm - 140 PCM classic percussions
- 4 PCM basic waveforms (eg: sinewave)
- 21 PCM mathematical generated inharmonic waves
- 51 PCM digitally created pulse + FM waves


PCM waves from 132 to 135 are especially coded for SPATIAL CONVOLUTION process: a combination of a normal waveforms with a convolved reverbered one.





editPERFORMANCE machine handles 16 kits with individual settings:

emu procussion - volume gain
- stereo panning
- Midi channel
- zone map
- analog out
- hit velocity
- gate or trig mode (EG)






adsr ENVELOPE up to 2 EGs:
- EG1 amplitude 3 segments AHD with inverse slope switch
- EG2 pitch controls the pitch decay.

EG procussion Special RANDOM functions humanizes hihats for more realistic play using 2 settings:

- trig mode allows a volume EG to cycle through all its stages when note is received
- gate mode allows a volume envelope to cycle through its attack segment and hold stages when a MIDI note on command is received.



lfo LFO a single oscillator (4 shapes: triangle, saw, sinewave and square) for each layer.
Main modulation destinations are:

EG procussion - LFO 1 amplitude
- LFO 2 pitch

Modulation can be assigned also to the matrix modulation





fx MIDI MATRIX:
classic fuction routing by EMU, well-known to samplers.
Here's a sum-up:

SOURCES
DESTINATIONS

- Velocity
- Key Number
- Trigger Tempo (Rate)
- assignable MIDI A
- assignable MIDI B
- assignable MIDI C
-
assignable MIDI D
- Pressure
- Pitch Wheel
- LFO

- Pitch
- Accent
- Attack
- Hold
- Decay
- Pitch Env. Amount /decay
- Panning
- Tone
- Sample Start
- LFO Rate / Amount





memroy MEMORY:
- 64 ROM patches
- 64 RAM patches.
No external media storage, just plain Midi Sysex for data backup.

internal procussion

LEFT - Battery replacemen: soldered lithium battery 3V model BR2/3a.

- Click to Enlarge pic -




info EDITOR procussion can be programmed by external programs:
- Midiquest (mac/pc $$$)
- CTRLR panel (free)

editor




info RELATED FAMILY:

EMU PROTEUS SERIES

EMU PROTEUS SERIES quite same machines with different samples set:

PROTEUS 1: various pop sounds

PROTEUS 2: orchestral - VIDEO

PROTEUS 3: ethnic - VIDEO



effet
VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

sample pack we give you some procussion free samples :) FREE SAMPLES download




demoAUDIO DEMO

demo factory demo
demo kit 1
demo kit 2 electro 808
demo kit 3
demo kit 4
demo kit 5



video VIDEO SELECTION

demo1 DIY Electronic Drum Set
test test2



Company: EMU
Model: Procussion
Class: Drum Module
Dates: 1991
Synthesis: PCM rompler
Display: 16 X 2 lines LCD
Analog outs: 6 jack
Polyphony: 32 voices
Resolution: 16 bits
ROM: 4 MB
Frequency: 39 kHz
N. waves : 216 PCM
Performance: 16 parts
LFO: 1 modulator
Envelope: 2 EGs
Memory: 64 slots
Trigger inputs: none
Effects: none
Latest OS: ?
CPU: MC68000
DAC: BB PCM56
Demo: 6




manual
MANUAL







emu procussion reset procedure

Procussion Factory sounds reset

hold down "master" and "edit" while you switch it on, this puts you in diagnostics mode, then select "initialize"





manual
SERVICE MANUAL AND SCHEMATICS




FREE procussion
SAMPLESET

DOWNLOAD free PCM samples for your computer :)

emu procussion reset procedure














Emu Procussion for sale

Emu Procussion for sale
CHECK OUT EBAY OFFERS











proteus pcb motorola cpu procussion chip
Same Proteus PCB Motorola 68000 CPU inside the emu procussion
awardSPECIAL AWARDS:
cheap as hell!
cheap as hell!
PCM obsoleye nervous edit

comment


REVIEW "Samples are now quite old and programming could be tedious, however it could be interesting for sampling experimentation at very poplular price."

manual manual
- bargain price - no filter
-full sysex
- edit interface
  -no trigger inputs

procussion
