Dynacord VRS-23
Vertical Reverberation System (1982)



German rackmount hybrid analog-digital effect unit from early eighties generates reverb and delay.

logo
vrs23

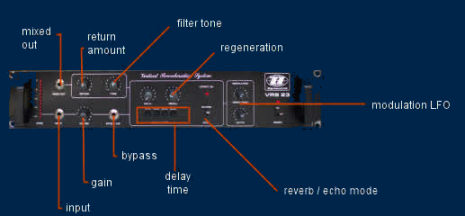

info RACKMOUNT 2 standar units height . Main panel features 7 knobs, 4 buttons, 2 switches and a 12-bars red led meter.

Back panel terminal connectors:
- stereo mix out
- stereo wet out
- mono direct out
- mono input
- 5-dins connector for input and output

Front panel terminal connectors:
- main mix out
- signal input
- pedalswitch for bypass.






ac TECH
Dynacord VRS 23 works from 20 Hz to 20 kHz range response.

Unit can be set to 2 effect modes but not both at same time:
- MODE 1: stereo REVERB
- MODE 2: mono DELAY ECHO


set




ac EDIT pretty simple with smooth knobs for quick sounds control.

vrs23 time





ac
REVERB MODE a simulated reverb as the circuit using delay lines from analog BBD chips.



button

UPPER: when switched to REVERB mode some parameters can be changed using the delay commands:
- time buttons are the reverb intensity
- regeneration is the duration
- delay knob is the density.




ac

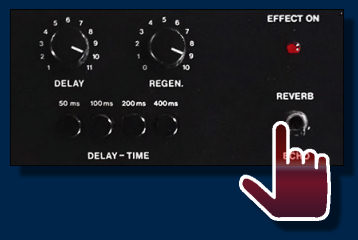

DELAY MODE up to 400 ms of delay time in delay mode with a stereo ping pong effect.

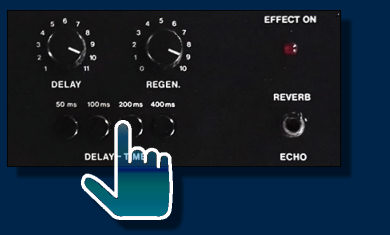

There are 4 echo modes: 50 / 100 / 200 / 400 ms


regen2

Some delay parameters can be adjusted:
- delay: sets the delay time
- regeneration: sets the number of echoes.
TIP: - shortest time create typical flanging and chorused effects.





ac FILTER

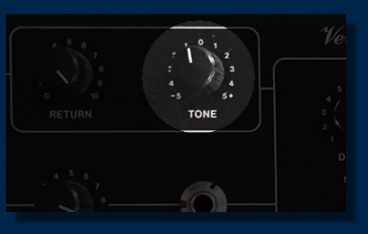

the TONE control is simple analog lowpass filter.

LFo





LFO

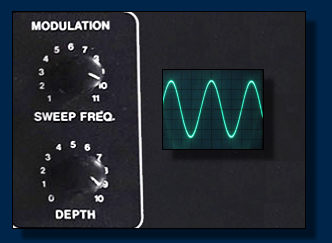

single triangle-shaped oscillator modulates the amplitude



LFo

the LFO two sub-controls:
- SWEEP FREQ is the frequency rate
- DEPTH is the modulation amount.




acREVISION MODELS
also in white face version:



dynacord vrs23 white face




ac there are at least 2 revisions models with different chipsets:

tda1097P
Upper: first version (black one?) with N823-OM then white one with TDA 1097 8-pins variation of classic TDA 1022 + 10 BBD bucked brigade devices.


demo AUDIO DEMO

demo time test mode
demo pad modulation
demo delay pad


video VIDEO SELECTION

ynacord vrs23 endless echoes Dynacord VRS-23  VRS-23 BBD analog delay
demo1 demo2 demo3



Company: Dynacord
Model: VRS-23
Class: effect delay/echo
Dates: 1982
Price: 250€
N.effects: 2
Delay time: 400 ms
Freq Resp: 20 Hz˜20 kHz
LFO: 1 modulator
Filter: low pass
Demo: 3





manual
MANUAL

schematics
SERVICE MANUAL


manual

- More demo

banner vrs23

vrs3 repair

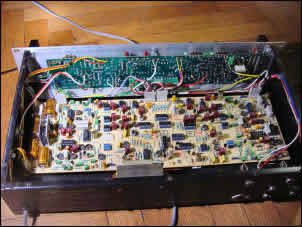

infointernal 1



vrs23 internal
infointernal 2



BBD chip
infointernal 3



DYNACORD VRS23 for SALE

DYNACORD VRS23 for SALE
CHECK OUT EBAY OFFERS



banner vrs23



chipset motherboard memory

awardSPECIAL AWARDS:

solid solid
Smart edit Vintage sound

comment

REVIEW" Warmy sound and not too muffled. Today a a bit overvalued / overrated in vintage market, but it is for sure an interesting machine."

manual manual
- retro sound - pricey
- intuitive
-scarsing BBD chips

"Welcome to VRS23, previous reverb generators all suffer from the same shortcoming - at short echo and reverb durations the sounds is hollow and metacclic, like a cellar or in the bathroom" manual (uh bathroom?)
