YAMAHA RX-5 (1986)
Digital Rhythm Programmer


The RX-5 is flagship model of RX series: digital drum machine with pads and sequencer.

lcd display

edit voice led

info DRUM MACHINE Main panel features a 16 x 2 lines display, 24 drum pads, 36 buttons, 4 sliders while on the opposite part there is a 12- parts instrument mixer.

Back panel terminal connectors:
- headphones out
- main signal out
- 12 separate analog outs + click out
- Midi interface
- clock sync I/O
- start / stop footswitch input
- 2 cartridge slots for data and PCM.

info Power supply
standard external PSU AC-DC 12V +)- polarity





info TECH main core based on a 8-bits CPU Hitachi HD63B09 manages 16 voices polyphony, relative DAC is a 16 bits IC YM3014 (floating point).



eg rx5

STRUCTURE each voice is assigned to a PCM sample (rompler) and a pad with different parameters:
- pitch tune
- backward play
- damp (for cymbal)
- volume mix gain
- stereo panning





info WAVETABLE
internal ROM contains 24 PCM samples at 25 kHz- 8/12 bits, split in 2 ROM banks (at IC 45/46 -about 1 megabyte).


wcr data

The wavetable can be expanded using special custom WRC cartridge.

demo Hear all the internal 24 PCM sounds





info CARTRIDGE
: more PCM sounds can be added using the special WRC waveform cartridges models also suitable for module PTX8.

Catalog name PCM demo LINK
WRC 01 Standard-Latin 28 demo
WRC 02 Jazz & Fusion 24 demo info
WRC 03 Heavy Rock 15 demo info
WRC 04 Effect 19 video info
Metrasound collection TR808 26   info
Metrasound collection Tr909 28   info
wcr data
Note: WRC-1 is factory bundled with RX5 - Metrasound pictures from Ebay auction.




info

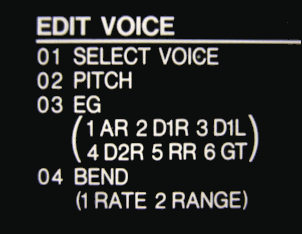

EDIT INTERFACE all sound and sequencer edit is done by pushing first the JOB button with a particular nippon logic -- intricate and poorly intuitive.


yamaha rx5 tech





info LFO
just a single modulator: it is the BEND modulation raises or lowers the pitch in 60 semitones range in a determined time speed.


wcr data




info ENVELOPE

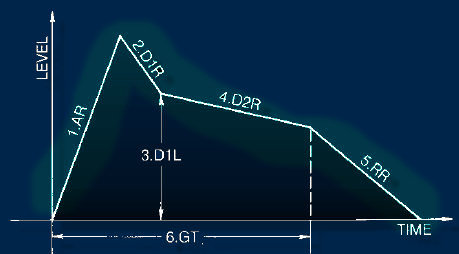

each voice features a 4-segments EG ADDR (attack decay decay 2 release) + 2 times for D1 and GATE the overall sound time, excluding the fourth release segment.

eg TIP a good trick for strange lo-fi sounds is the special "loop switch" mode functions demo HEAR keyswitch






info SEQUENCER
there are 2 classic record modes:
- step grid
- real-time

recording - SIGNATURE Large amount of time signature are available like 1/2 1/4 1/12 1/16 1/24 and 1/32
-
QUANTISIZE levels from 1/2 to 1/48 precision
- SWING option works only in quantize time of 1/8 or 1/16 with range 50%-70%.




info SYNC
frequency range from 40 to 250 BPM and 3 external sync modes:

sync - external Midi clock
- tape sync in recorder TAPE IN.
- external analog signal: trigger with an analog signal (generally pulse wave).




info MIDI it is possible to trigger sounds using MIDI protocol channel RX and TX can be set by user (Midi control by IC YM3802).





info MEMORY
:
- 100 RAM patterns (up to 99 measures)
- 20 RAM songs
Memory doubled if a Yamaha RAM4 cartridge is fitted.

motherboard rx5

- LEFT - BATTERY REPLACEMENT: a standard 3V CR2032 soldered to mainboard.

-Click to magnify PIC -





infoEDIT there is NO offical RX5 editor.
A hard to find retro- program is the YRM-302 RX EDITOR for MSX 8 bits computers - although it is optimized for models RX 11 / 15 / 21, it partially works on the RX5.


rx5 msx editr





info MODIFICATION
& MAINTENANCE

rx5 circuit  bend

Machine is quite a workhorse and requires no particular care, maybe some cleaning the pot sliders.

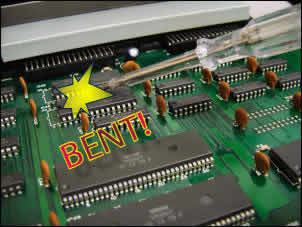

BENDING Due to its limit and its actual cheap price the RX series are often subject (victim?) to circuit bending experiments demo HEAR Circuit bending experiment

(left) DISCLAMER WARNING: DO NOT PUT A SCREWDRIVER AT RANDOM INTO THE MACHINE (LIKE I DO) THIS IS DANGEROUS -- bla bla --




not RELATED RX FAMILY:

rx11video rx15video
rx21video rx21lvideo
RX11 first of the series

RX15 improved rx11

RX21 budget version with different soundset RX21L same as RX17 but with latin-oriented sound

rx17

rx120video

rx7 rx8video
RX17 halfway between RX21 and RX21L

RX120 a preset pattern version of 21

RX7 less features than rx5 but more PCM RX8 first with 16 bits sample





effet VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

Waveshapper

-denhaku

free sample set + card WRC1




demoAUDIO DEMO

demo factory demo
demo JAM with MFB Nanozwerg
demo whole track only with RX5
demo swing pattern
demo cowbell pattern
demo another pattern
demo experimental track by Nico
demo Circuit bending experiment



video VIDEO SELECTION

RX5 ritmics techno Yamaha RX5 + microKORG YAMAHA RX5 mods
Interesting project about custom PCM sounds loaded by a DIY USB interface. RX5 + microKORG bending mods



Company: Yamaha
Model: RX-5
Class: Drum Machine
Dates: 1986
Display: 16 x2 LCD
Pads: 24 dynamic
Synthesis: PCM rompler
Resolution: 8/12 bits
Sampling frequency: 25 kHz
N. sounds: 24 PCM
Polyphony: 16 voices
Sequencer: 100 patterns
Resolution: 48 PPQ
Swing: 50-70%
Sync: Midi, tape
Filter: none
LFO: 1 modulator
CPU: HD63B09
DAC: YM3014
PSU: 12VDC
Demo: 8



manual
