CRB Diamond 725

Italian preset drum machine  (197?)

CRB Diamond 725

"Italian analog drum machines with preset patterns.  CRB Elettronica was based in Ancona, a famous zone for some electronic instruments productions during the seventies. "

 Main Data

CRB diamond 725

Country: Italy
Weight: 1 Kg
Dimensions: 200 x 55 x 146 mm
Trend price : 100€ (up)

Display: none
TECH: analog
Polyphony:
Multitimbric: 1 part
LFO: none
Memory: 12 ROMS
Effect: none
Storage : none
Midi: none
CPU:
IC:
OS:

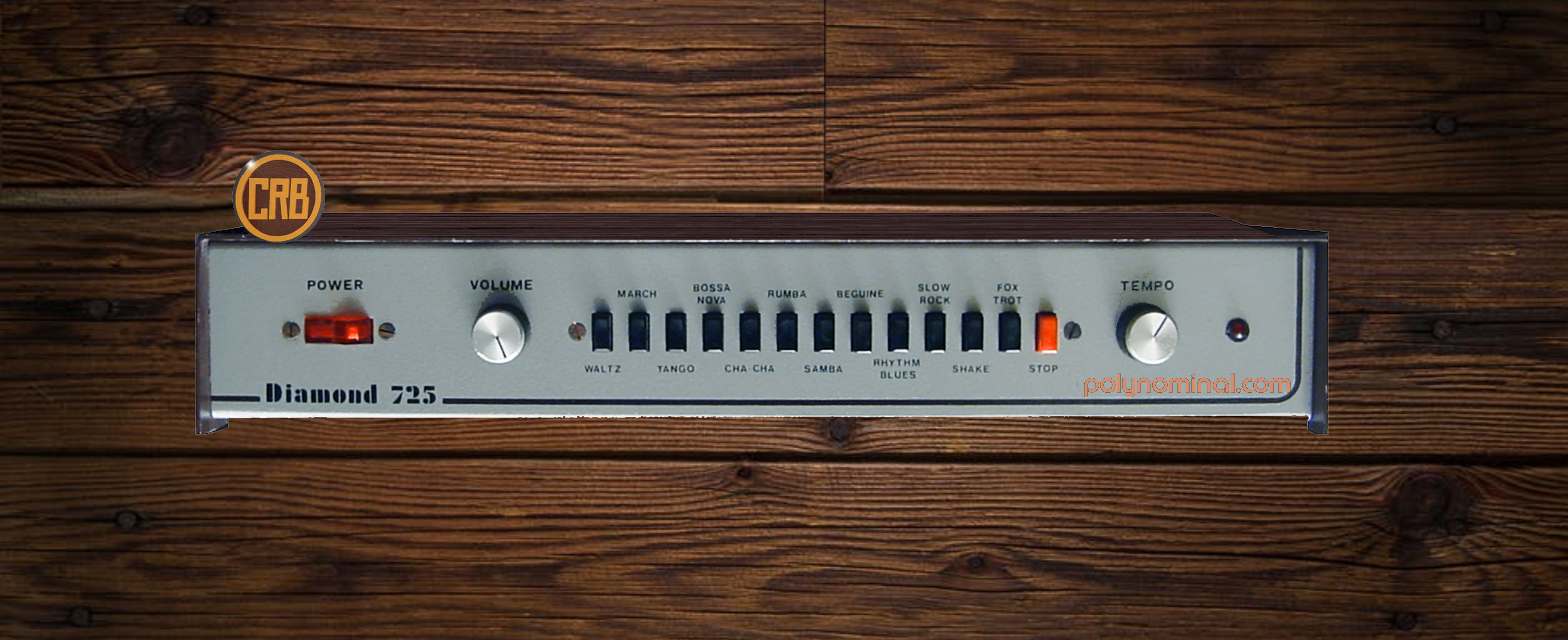

DRUM MACHINE the main panel features 14 buttons and 2 knobs for volume and tempo setting.

Back panel terminal connectors:
- mono jack out
- switch input for START / STOP

NO factory reset procedure

FREE SAMPLE PACK!!  visit our SAMPLE SHOP!

Have some sounds or demo  want to share? CONTRIBUTE :)

WE miss both SERVICE and OWNER manual! do you have a copy?  CONTRIBUTE the material will be shared for free.

Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.

 In details

CPU


TECH
board generates 7 analog percussions;

-bass
-snare
-clave
-tom (x2)
-hihats
-cuica

CRB diamond

12 Rhythm presets:

waltzbossnova samba slowrock
marchchachabeguine  shake
tangorhumbarnb  foxtrot

MEMORY

All  sequence are stored into a pretty old ceramic 250 ROM- 24 pins.

The machine has no midi, no trigger, no sync

You cannot edit any rhythm

m250 memory
MAINTENANCE  my drumbox had trouble with the m250 and lost some patterns, there's quite nothing to do about those kind of issues.   I have no information about this kind of chip. If you have more information just write us.

Our Verdict

" Fun  drum machine preset, does not sound bad at all! This model  is a bit hard to find, but there are many alternatives if you're into preset drum vintage "

Sound
quality

Interface

Build
 quality

Rarity

Quality /
price

Overall

CONS

- limited
- no sound tweak
- no sync, no trigger

PROS

-sounds nice
- rare
- analog old scholl

Are you an Diamond 725  fan? how do you use it? You do not agree with our review?  Let us know in the comment field just below
