Solton Project 100







Solton Project 100

infoCountry: Italy
Weight: 10 Kg
Dimensions: 102 x 33 x 11 cm
audio demo trend price : 300€
manual demo video comments

Solton Project 100
Programmable Keyboard (year?)



Italian polysynth based on DCO oscillators + SSM filters with on-board sequencer.


A collaboration between Solton and Ketron.

drum pad
drum pad

info KEYBOARD 61 keys Main panel features 31 buttons and 7 knobs. (exists also with funny accordion buttons PICTURE).


Rear panel terminal connectors:
- stgereo signal out
- Midi interface
- damper pedalswitch input
- tape interface (IN and OUT).






edit TECH the main processor is based on a single 8 bits Intel P8031 which handles 6 voices polyphony.

STRUCTURE: each voice is composed by 2 digitally controller oscillators DCO1 + DCO2 located on 6 voice boards.



CPU intel




edit STRUCTURE
: DCO1 and DCO 2 are quite identical.
demo Hear the DCO waveforms


  DCO1 DCO2
shapes
(summable)
square / sawtooth / wide pulse / pulse square / sawtooth / wide pulse / pulse / noise
pulse width yes yes
octaves 16' / 8 ' / 4' 16' / 8 ' / 4'
detune no yes

DCo1




edit FILTER
a lowpass 4 poles resonant filter based on 6 X SSM 2045 IC with fixed keytracking option.


filter



edit
ENVELOPE up to 2 EG per voice based on 12 X SSM 2056 IC.
- EG1 AMP 4 segments ADSR
- EG2 VCF 4 segments ADSR.


EG ADSR



edit
LFO a single delayed modulator (2 shapes: sine or square) with variable amount depth and speed frequency. 3 possible summable destinations:
- DCO pitch
- VCF cutoff
- VCA level.

LFo
demo Hear the LFO




edit

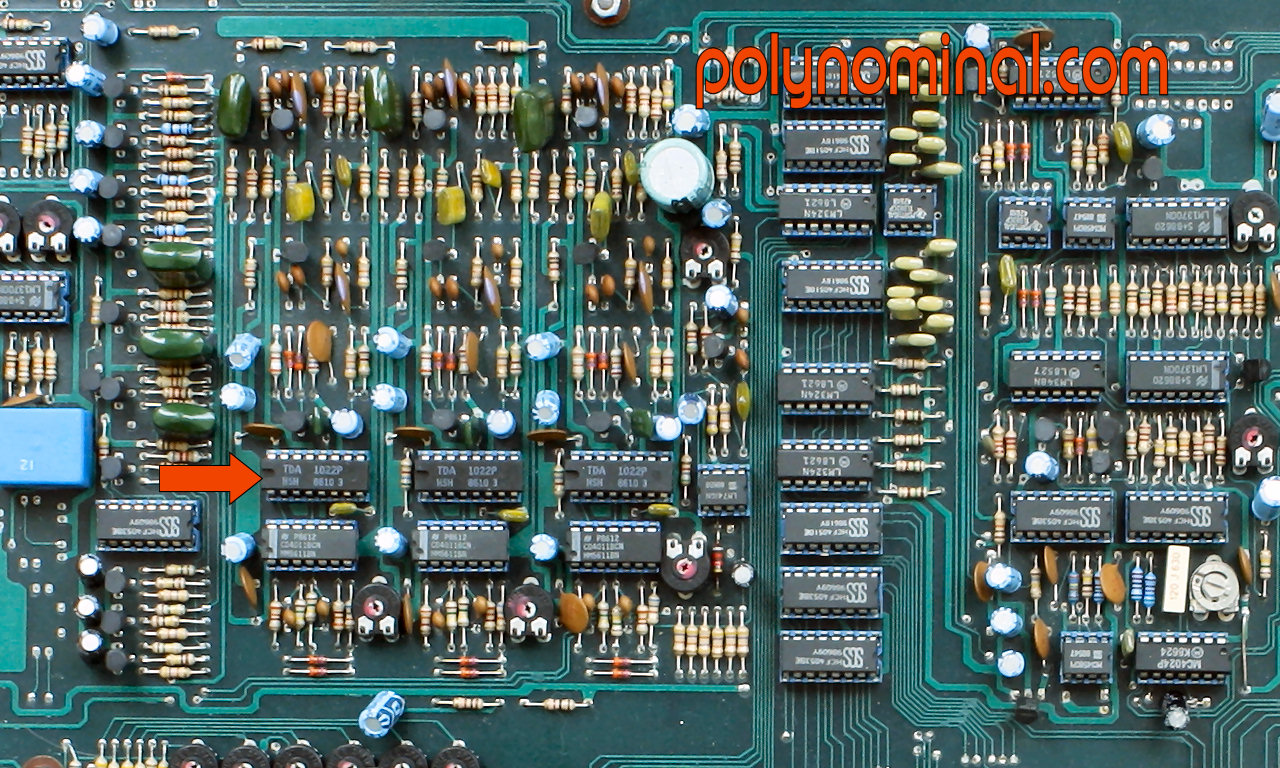

EFFECT analog chorus based on a 3 line BBD TDA 1022P.


chorus


demo Hear the chorus





edit
SEQUENCER up to 4 tracks sequencer with Mono or Polyphonic recording.
MIDI
in edit mode it is possible to edit all parameters USER-patches using CONTROL CHANGE.
The list is printed on the machine and it is not very standard - this is indeed a very nice feature, sadly, the Midi buffer quickly chokes freezing the whole machine.

sequencer





edit MEMORY:
- 60 ROM preset (LIST)
- 40 USER-free presets.
Battery replacement: 3.6 V Ni.cad battery can spill acid over circuits. Change it now.. run run...


battery

I'm in your synth, destroying your tracks...



editor EDITOR Proejct 100 can be edited using a freeware program SM100 editor (sm100 is the module version, the same):


SM100 editor



edit RELATED FAMILY:

SOLTON PROJECT 100

SOLTON SM 100 module version, the same minus sequencer



demo AUDIO DEMO

demo escape NY1997 -all project 100 but drums
demo Preset
demo synth: ambient harp
demo Synth: computer menace
demo Synth: LFO
demo pad: LFO
demo Bass: bassliner
demo synth: easy
demo Pad: square
demo Synth: hypno
demo pad: loungechords
demo pad: choir
demo bass: scale
demo pad: mystic 1
demo SEQ: bach
demo pad: resonance
demo pad: mystic 2
demo Synth: japan
demo Synth: bounce
demo Seq: ultima IV theme
demo FX: NOISE
demo FX: DRUMS
demo TEST: ALL WAVEFORMS
demo TEST: PULSE WIDTH RANGE
demo TEST: OSC DETUNE
demo TEST: VCF CUTOFF RESONANCE
demo TEST: LFO DCO
demo TEST: LFO VCF
demo TEST: LFO VCA
demo TEST: chorus on/off




video VIDEO SELECTION

Roland TR-626 Demo Roland TR-707 & TR-626 Demo Circuit bent modular 626
Audio Demo soundscapes patch demo



solton project 100
We found this pic at CATSYNTH website! hope author does not mind!



Company: Solton
Model: Project 100
Class: Synthesizer
Keyboard: 61 keys
Dates: ?
Price: 300€
Synthesis: analog
Polyphony: 6 voices
Oscillator: 2 DCO
Filter: Digital Low pass
LFO: 1
Sequencer: 4 tracks

Memory: 40 slots
Demo: 20




manual
SERVICE MANUAL / SCHEMATICS

edit

-USER MANUAL

project100

solton project100
editoriginal brochure



Solton Project 100 FOR SALE
Solton Project 100 FOR SALE
CHECK OUT EBAY OFFERS



project100







intel cpu main edt
awardSPECIAL AWARDS:
solid
solid
Holy Rare OS crasher


comment

REVIEW "Nice early polysynth with very limited edit. Quite rare."

manual manual
-rare - edit
-Midi
- Midi crashes
-12 DCO -limited
