Korg ER-1 Electribe





Korg ER1 Electribe

info Country: Japan
Weight: 1,7 Kg
Dimensions: 300 (W) x 222.5 (D) x 53.4 (H) mm
audio demo trend price : 150€
manual demo comments

Korg Electribe ER1
Rhythm Synthesizer (1999)


Advanced drum machine, a "rhythm synthesizer" based on a mix of virtual analog modeling synthesis and PCM samples.

Part of the famous ELECTRIBE series mainly aimed at performance and live purposes.

rhythm synthesizer

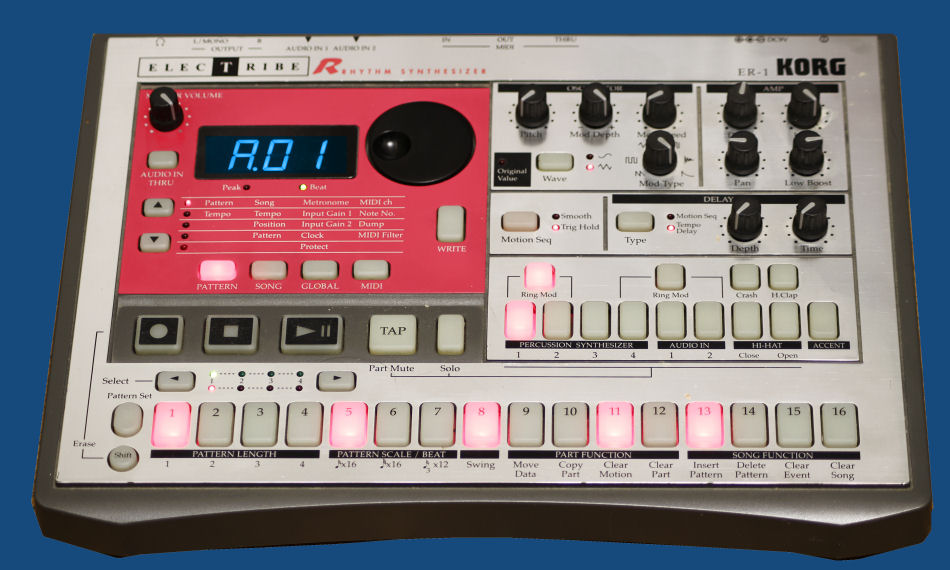

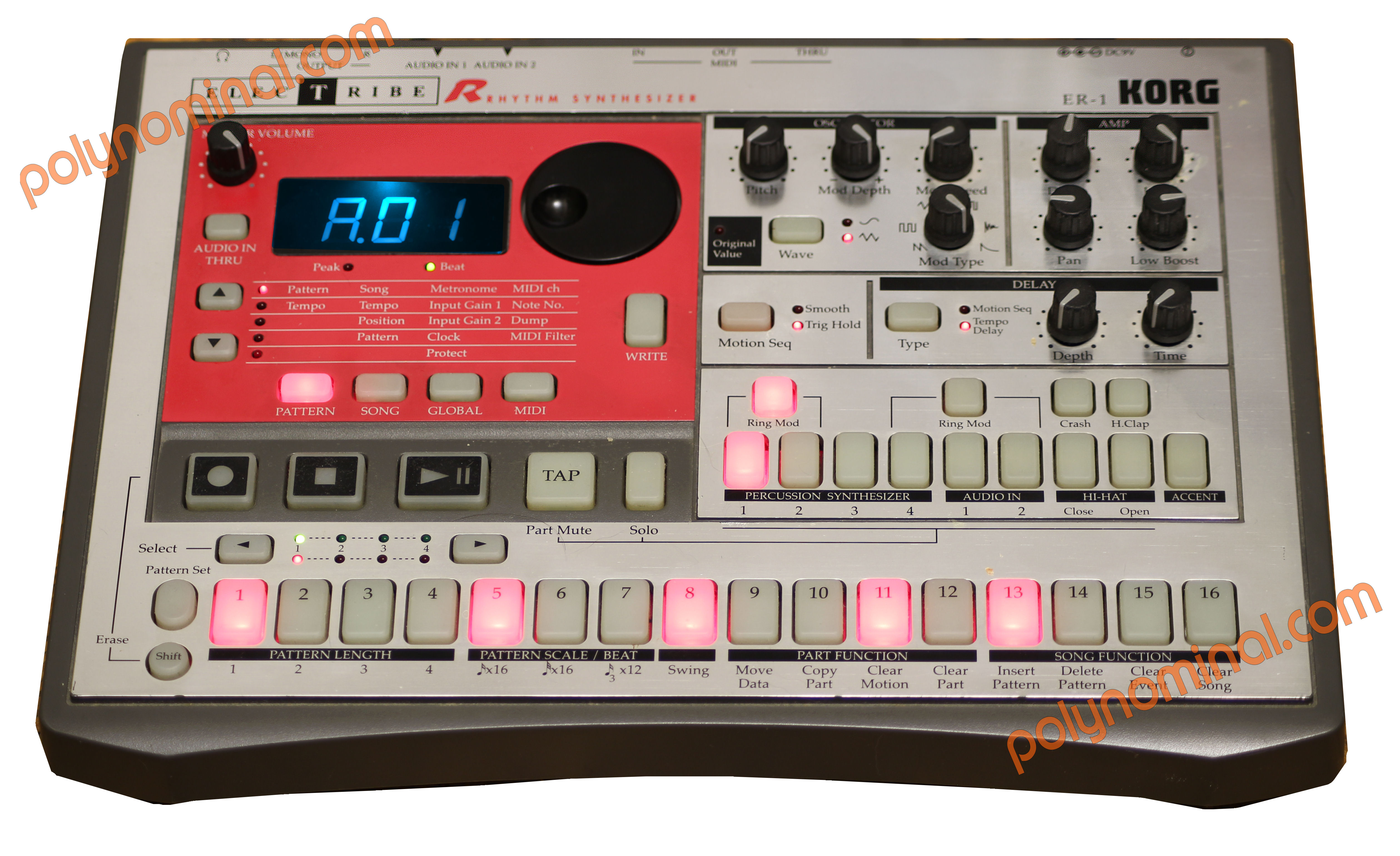

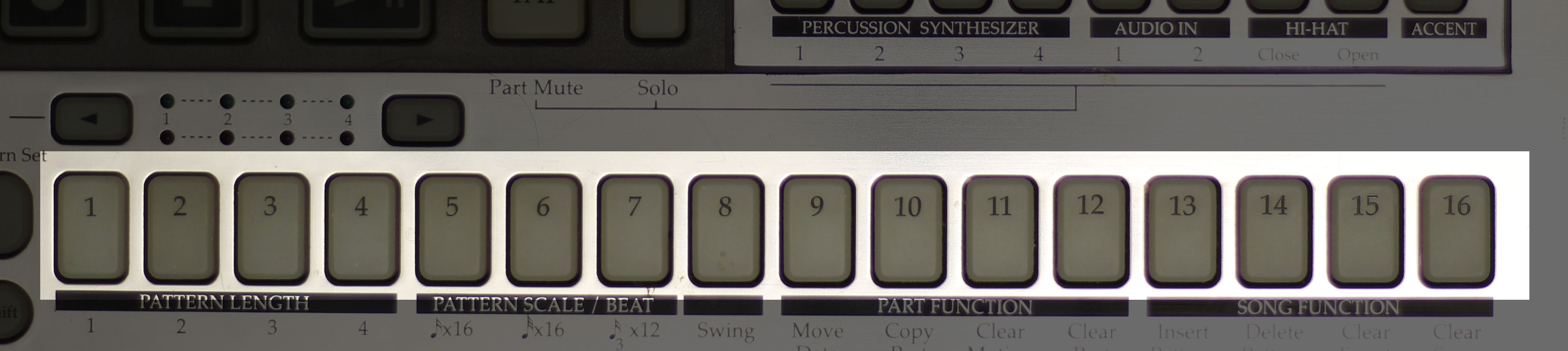

info DRUM MACHINE Main panel features a segments display, 16 pads, a data entry wheel, 11 knobs and 34 rubber buttons.

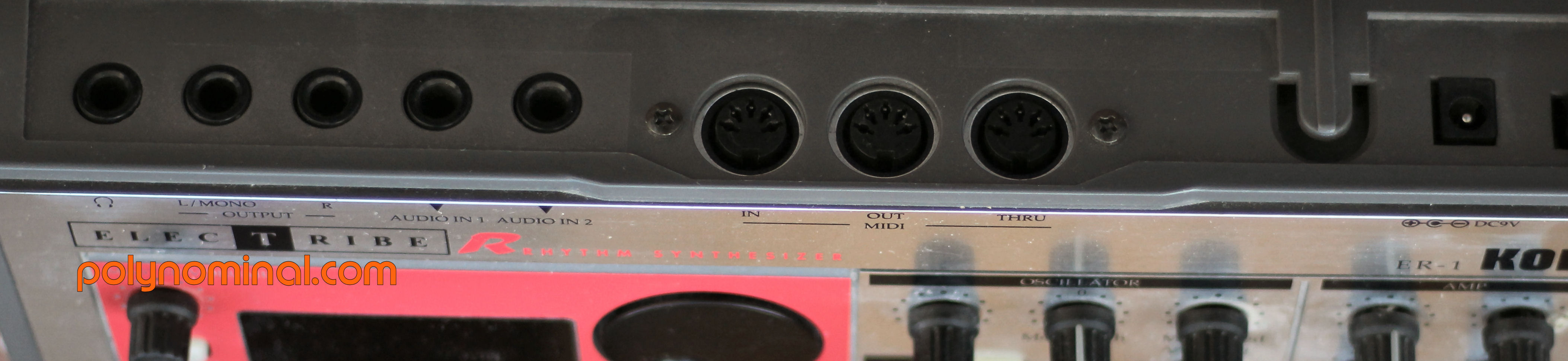

Rear panel terminal connectors:
- Midi interface
- main analog out
- headphones
- 2 inputs for external processing or gating-triggering.

ac Power supply is a 9V external PSU negative in center about 600 mA.



edit VOICE Main CPU H8S2350 manages 6 voices polyphony (tms5707FFT DSP + DAC AK 4522) each with individual volume, Midi channel and panning position. Voices are allocated between part A and B:


A--> 4 parts VA analog modeling percussion synthesizers

B--> 4 parts PCM samples playback but only 2 voices since hihats and crash are channel-shared.

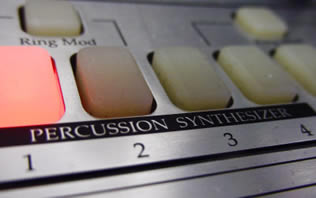

section is composed by 4 parts each can be either a sinewave or triangle waveform with a pitch tuning from 20 to 12000 Hz.


A special ring modulation process can be applied between:

- part 1 / part 2

- part 4 / audio input

demo HEAR an analog modeled tom

SAMPLES ROM contains only 4 PCM waveforms:

- channel 1: open/closed hithats or crash cymbal demo HEAR

- channel 2: handclap demo HEAR



edit ENVELOPE only the DECAY segment can be set for both PCM and VA sections but it also works as a signal gate for external sources process.


demo HEAR decay range on a kick drum

LFO a single bipolar modulator, relative frequency range between 0.1Hz and 5kHz with variable depth. The LFO features 6 shapes:


- sawtooth
- square
- triangle
- noise: adds a white noise to the sound, indicated for snare
- envelope: is effective for kick drum sound creating
- sample and hold: is very indicated for bleeps or analog-like noises

demo HEAR lfo

edit TECH: the pitch modulation can be applied only to VA part and not to samples


edit SEQUENCER classic Roland TR STEP mode for beat programming.
Variable time signature (4/4 or 3/4 or triplet timing) and other functions e.g accent, clear events, copy and swinged mode (humanize).


Special MOTION SEQUENCER records and loops knobs movements then values can be played back as is or interpolated for a smoother sequencer effect.

SYNC internal frequency tempo from 20 to 300 BPM or unit can be slaved to external Midi clock and other Electribes machines.


EFFECT only a cross-feedback digital delay with adjustable feedback rate and sync to tempo mode. Both PCM and modeling V.A can use the special LOW BOOST for more bass EQ gain.


demo HEAR delay on a snare drum

demo HEAR low boost on a kick

edit MIDI every parts (including audio input) are assigned to a Midi note and channel.
The Midi implementation is poor and knobs cannot be recorded by Control Change but only NRPN (Non Registered Parameters).



- 16 songs

- 256 patterns (each 64 steps)

- 35700 recorded events

edit All data can be saved only to Midi dump process



Korg Electribe R MkII Korg Electribe R MkII - part of the following second electribe generation, quite the same as Mk1 but Korg added a cross modulation effect between oscillators
Korg Electribe EA1 Korg Electribe EA1 - part of the first Electribe generation, a Virtual analog synthesizer with 2 channels

Korg Electribe ES1

Korg Electribe ES1 - part of the first Electribe generation, a desktop sampler.

Ielectribe Ielectribe app released in 2015



effet VST PLUGIN / SAMPLED VERSION there are some free and commercial samples set:

free er1 samples FREE
15 MB free sample PACK

Visit website


Direct link



Company: Korg
Model: ER1
Class: Drum machine
Dates: 1999
Pads: 16
Technology: V.A + PCm
Waves: sine / triangle
Polyphony:6 voices
Multitimbric: 8 parts
LFO: 1 modulator
Envelope: decay
Sequencer: 256 patterns

SYNC: Midi clock
Effect: delay
Midi: IN / OUT / TRHU
Memory: 35700 events
CPU: H8S2350
IC: tms5707FFT DSP + DAC AK 4522



demo factory song 1
demo factory song 2
demo factory song 3
demo factory song 4
demo factory song 5
demo factory song 6
demo ER1 + EA1 demo 1
demo ER1 + EA1 demo 2
demo ER1 + EA1 demo 3
demo ER1 + EA1 demo 4
demo ER1 + EA1 demo 5
demo ER1 + EA1 demo 6
demo ER1 + EA1 demo 7
demo ER1 + EA1 demo 8

demohave some ER1







-Free sample set
-more demo


edit Sample SHOP
edit Report Error



Korg ER1 factory reset

1. press simultaneously the Solo key and the Write
key, turn on the power.

2. press the blinking Play/
Pause key.


more troubles ? read out the ER1 FAQ



Korg Electribe ER-1 FOR SALE

Korg Electribe ER-1 FOR SALE



oscillators model play demo



REVIEW "A LOT of sound can be created on the fly there! Now cheap! A bit limited as single drum machine but ER1 can be a precious source of inspiration on the fly."

manual manual

- quality built

-percussive sound creation

-live approach -Midi
