Yamaha VSS-30

Cult LO-Fi sampler (1987)

Yamaha VSS30

"Toy keyboard sampler at 8 bits with interesing edit functions. Like Casio SK-1, the VSS samplers are considered cult amongst lo-fidelity addicted and toy-synth geeks."

 Main Data

Vss30


Company: Yamaha Corp.
Model: VSS-30
Class: Toy sampler
keyboard: 32 mini keys
Dates: 1987
Country: Japan
Weight: 1 Kg
Dimensions: 467 (w) x 180.4 (h) x 57,4 (d) mm
Speaker: 8 cm / 4 Ohm
Amplifier: 1,5 W RMS

Synthesis: sampler
Resolution: 8 bits
Polyphony: 4 notes
Presets: 11 sounds
Memory: 3,5 s sampling
Frequency: 16 / 9 kHz
Sequencer: 500 notes
Resolution: 1/48
LFO: 1 modulator
Envelope: 1 EG
Main IC: YM2416
Filter: none
PSU: 9V DC 9V with center negative (original model is PA-1 or PA-1B) or use 5X 1,5V batteries.

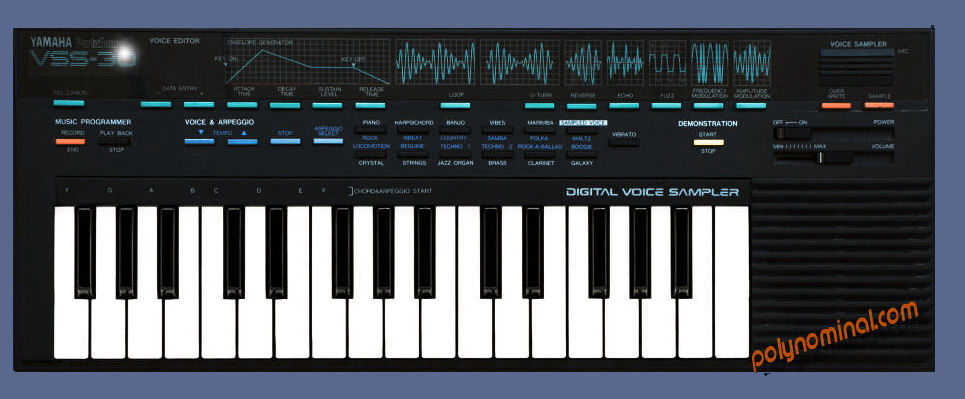

TOY KEYBOARD portable 32 minikeys with a 8 cm speaker.

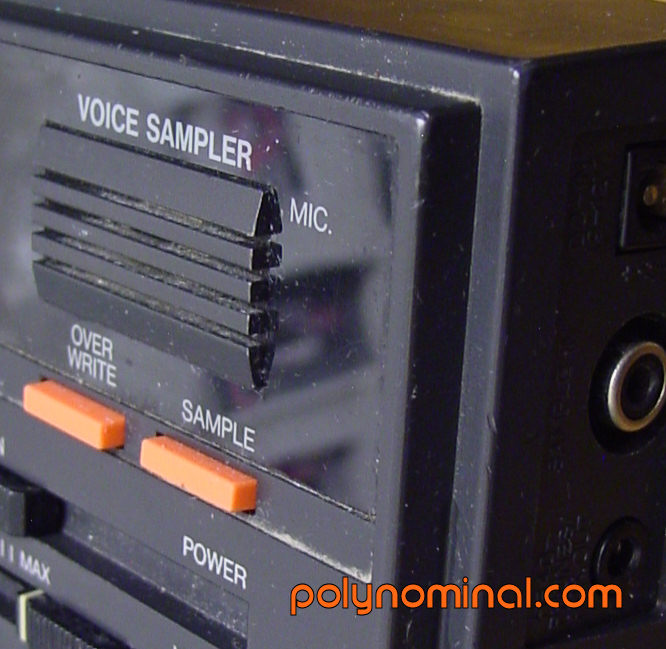

The main panel features 42 buttons, a slider for volume and finally a built-in condenser (cheap) microphone.

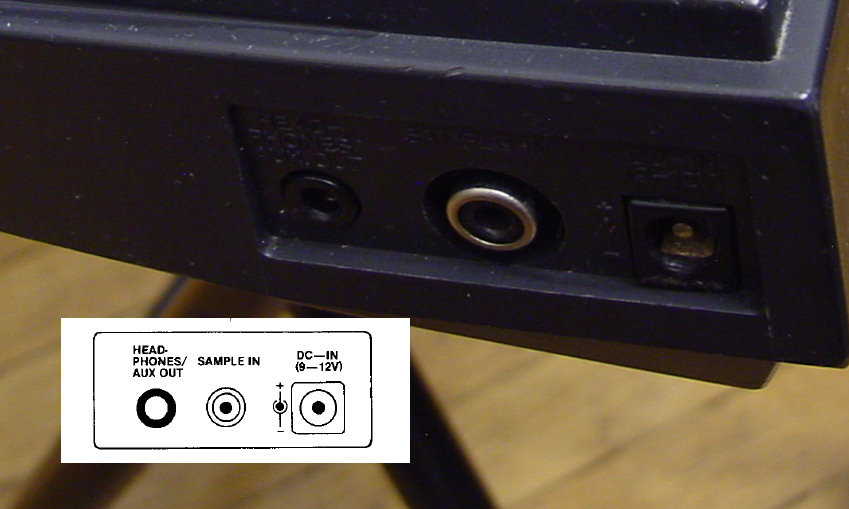

Rear pannel terminal connectors:
- headphones signal out
- RCA mono sample input


none

- FREE TR909 and TR808 sample pack sampled by VSS30! GIFT!  CHECK OUT HERE

Have some VSS30 sample set you want to share? CONTRIBUTE :)

Scegli tra la vasta selezione di blocchi già pronti più recenti: intro a tutto schermo, caroselli immagini di bootstrap, Slider dei contenuti, galleria di immagini responsive con lightbox, parallax-scrolling, sfondi video, menu hamburger, intestazioni fisse e altro ancora.

 In details

CPU


TECH
VSS system handles sampling process + a bunch of presets on the ROM wavetable.
Monophonic SAMPLING process is based on a YM2416 IC (common on all VSS series) + DRAM at 8 bits resolution.

Sampling

The VSS30 is able to record with 2 different modes and quality:

 16 kHz for a maximum of 1,8 seconds of sampling

- 9 kHz for a maimum of 3,5 seconds of sampling

tape record
Sample edit The sampled sound can be edited with 5 basic functions:
  -  loop mode
- reverse sample
- uturn: alternates forward + backward
- overwrite: sound on sound, bu it quickly saturate
- voice editor (see "VOICE EDITOR" below)
FX section

 VOICE EDITOR 4 internal sound effects, quite surprising for such a "toy":

- ECHO is a kind of delay, not really a DSP effect but a kind of envelope trick with 15 preset settings.
- FUZZ adds a simple fuzzed effect  No control on fuzz.
- MODULATION is a simple modualtion LFO on pitch - 8 presets fixed rates
- AMPLITUDE MODULATION is another LFO but on EG vibrato
(note: AM modulation shares same LFO rate as FM frequency modulation)

 Wavetable, Sequencer and Envelope Generator

preset

WAVETABLE

 11 internal preset sounds with no possible edit, however they can be arpeggiated or processed by various amplitude or modulation functions.
wavetable

PRESET LIST: piano, vibes, strings, clarinet, harpsichord, marimba, jazz organ, galaxy, banjo, crystal and brass.

record

SEQUENCER

 very simple MUSIC PROGRAMMER offers a maximum of 500 notes recorded in real-time (also chords) at 1/48 resolution. No other special functions.

Envelope

Envelope

1 EG 4 segments ADSR control for sample amplitude: just choose the segment and change to one of the 8 stepped values tapping the increase/decrease buttons.

Vss30 bending

"For An Even Bigger Sound  Although you'll be happy with the
sound from the built-in speaker, you can get an even more satisfying sound if you connect the PortaSound to a bigger speaker"
Vss 30 (big) manual

Our Verdict

" Just sample anything on the fly and mangle it! Totally raw sample with many audio artefacts! a true nigthmare for hi fi lover! :) "

Sound
quality

Interface

Build
 quality

Rarity

Quality /
price

Overall

CONS

- now pricey
- limited
- polyphony

PROS

- lfo
- effects
- toy cult status

Are you a VSS30 fan? how do you use it? You do not agree with our review?  Let us know in the comment field just below

DISQUS COMMENTS WILL BE SHOWN ONLY WHEN YOUR SITE IS ONLINE

Related Family

Yamaha Vss100

Yamaha VSS-100

It is bigger than vss30 and handles 4 parts. 1 single channel for sampling but no more interesting effects. My less favourite.

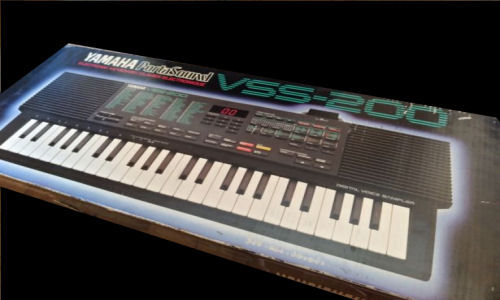

Yamaha Vss200

Yamaha VSS-200

 biggest of the series 49 keys, and 2 seconds of sampling and 9 effects. Special internal resample mode.

SHARE

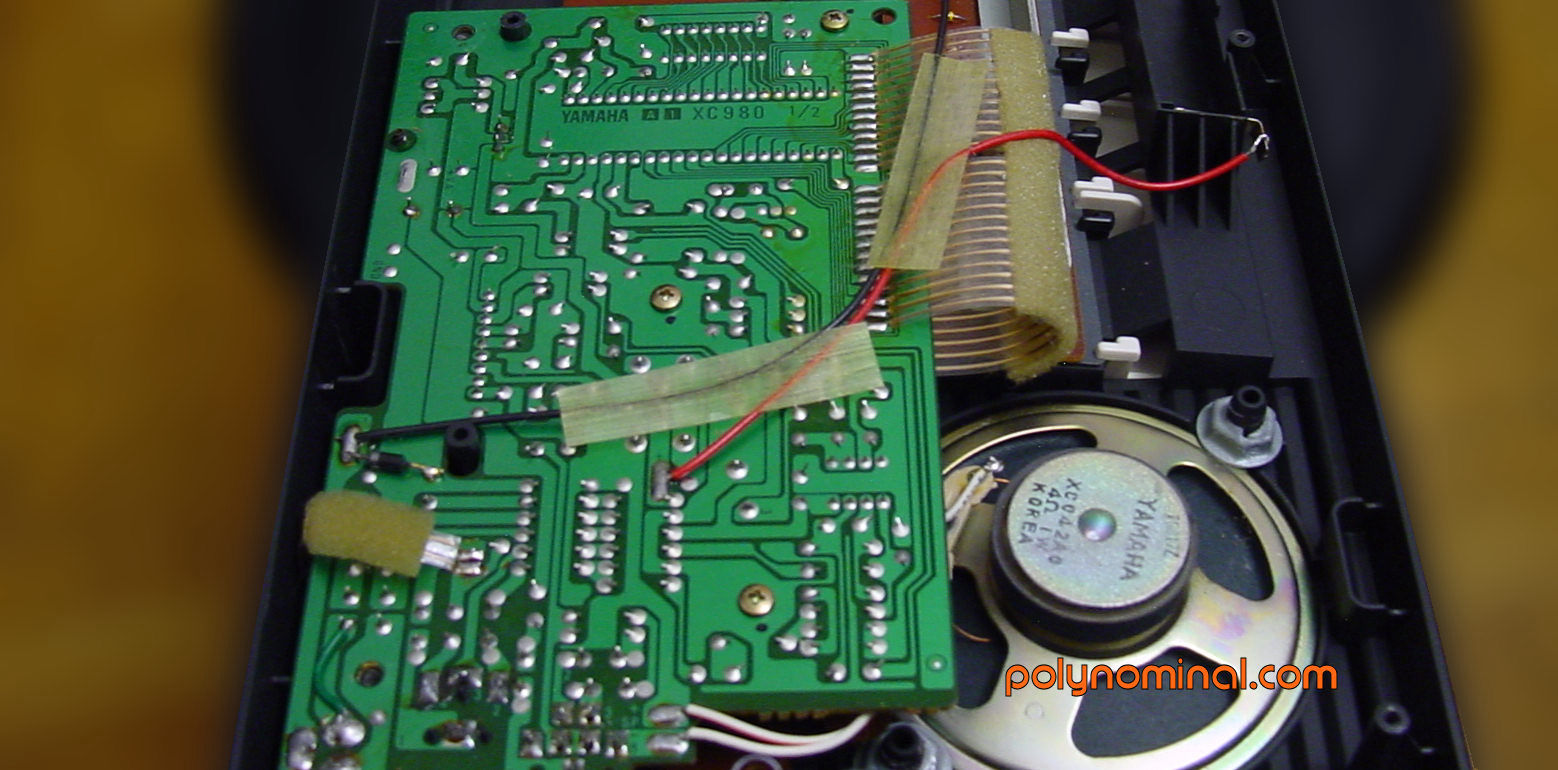

Special VSS30 circuit bend for more glitches!
