Electrix Filter Factory
Analog High Order Filter (1999)



Rackmount stereo multimode resonant filter with DJ live features released at the end of the nineties.

The warp is multimode filter with LFO, distortion and envelope follower functions.

logo

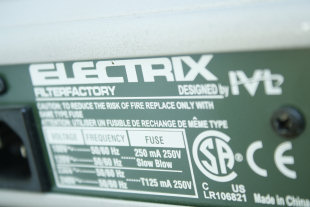

rear

info EFFECT RACKMOUNT MODULE Main panel is pretty simple: no display, 9 buttons and 7 knobs.

Rear panel terminal connectors:
- Midi interface
- Midi channel selector
- RCA stereo main out
- Jack stereo main out
- RCA stereo signal input
- Jack stereo signal input
- switch for input between phono and line impedance / RIAA
- 2 CV controller for filters cutoff
- pedalswitch input for bypass.






edit STRUCTURE The filter factory is basically split into 4 macro sections:
- Buzz Distortion (1)
- Stereo Filter (2)
- LFO modulation (3)
- Mixing section (4)


structure


edit BUZZ special distortion can be added to the sounds with 2 parameters:
- BUZZ is the amount of distortion and
- TRIM is the relative gain.


stereo filter




edit FILTER 2 indipendent resonant filter each with 2 poles (-12dB) each - can be set in multimode:
- low pass at 2 poles
- low pass at 4 poles (mono)
- high pass at 2 poles
- notch at 2 poles
- band pass at 2 poles.
TIP: The frequency cutoff can be controlled also by external CV tension.



stereo filter




edit
LFO a single modulator (shapes: positive sawtooth, negative sawtooth, triangle, square and random) with adjustable depth, 7 beat divisions, syncable to tap tempo or external Midi clock.
Filter modulation can be set also to special Envelope follower mode.


LFO




edit MIXING this section allows final signal settings:
- EFFECT MIX balances between dry and wet
- BYPASS the function speaks for it self (can be assigned to external switchpedal).





demo
MIDI &all functions are mapped to Control Change for complete automation. # FULL LIST
MEMORY It is possible to save a sound configuration using Midi sysex dump since there is no memory for storage.
SYNC: it is possible to sync time to incoming MIDI CLOCK.





edit
RELATED FAMILY:

Electrix warp factory

Warp factory - a digital formant vocoderr

Electrix MoFX

MoFX - dedicated to modulation process

filter queen Filter queen slimmed down half rack version of Filter Factory. Also brother EQ KILLER.







demoVST PLUGIN there is no official VST plugin, however a lot of VST will do the same job, here's some exemples of both freeware and commercial stuff:

  name price demo
frohmage

-Frohmage

-Classic Filter

FREE VST

Frohmage
fab filter 2 -FAB filter vocano 2
-PSP n20

$$

FAB filter vocano 2







demo AUDIO DEMO - WATCH OUT FOR YOUR SPEAKERS!

demo low pass with Env follower
demo low pass + rez + random mode
demo bandpass with Env follower
demo high pass with Env foller
demo Low pass with high resonance
demo notch with Env follower
demo All LFO shapes
demo resonance sync
demo Buzz mode
demo Synth1
demo Synth2
demo Synth3




video VIDEO CLIP SELECTION

video1 video2 video3
Video1 video2 video3



Electrix Fiter Factory



Company: Electrix
Model: Fiter Factory
Class: filter module
Frequency response: 10 Hz - 20 KHZ.
Dates: 1999
Price: 150€
Filter: LPF / HPF / BPF / otch
LFO: 1
Sync: Midi clock
Demo: 12



hires



manual
MANUAL
manual
SERVICE MANUAL

filter

Electrix Fiter Factory
edit original brochure

Electrix Warp Factory FOR SALE
Electrix Warp Factory for sale
CHECK OUT EBAY OFFERS





filter





rsf kobol circuit drum pad

Dates: 1999
Price: 150€
Filter:
LPF / HPF / BPF / notch
LFO: 1
Sync: Midi clock


comment

REVIEW "double CV control is a very nice touch! the factory can be interesting at fair price ."

manual manual
-price - resonante
-big knobs
-unpredictable
-CV controls
